Shift Position Shift Indicator

To test the shift position indicator, see Fig 1.

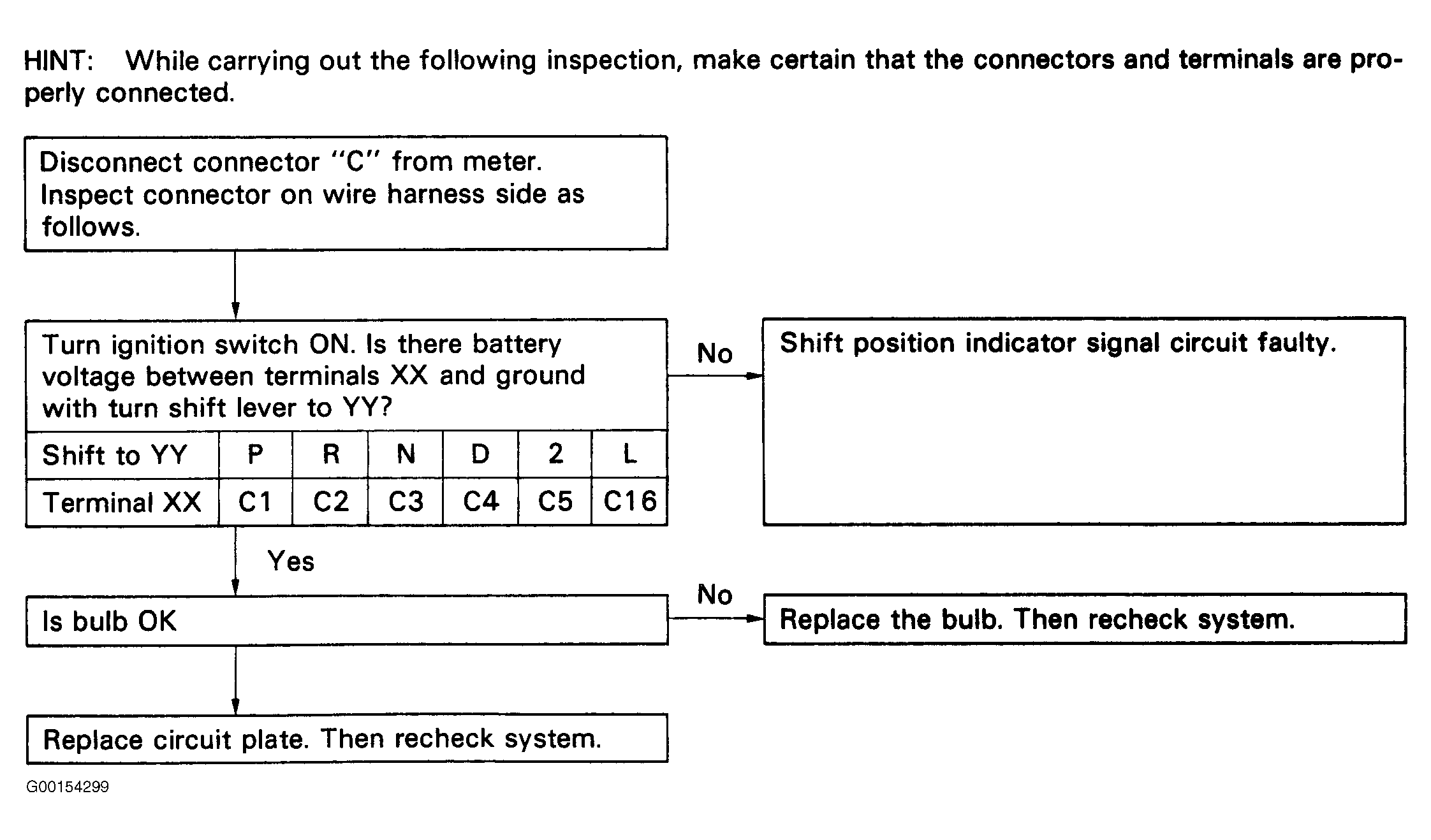

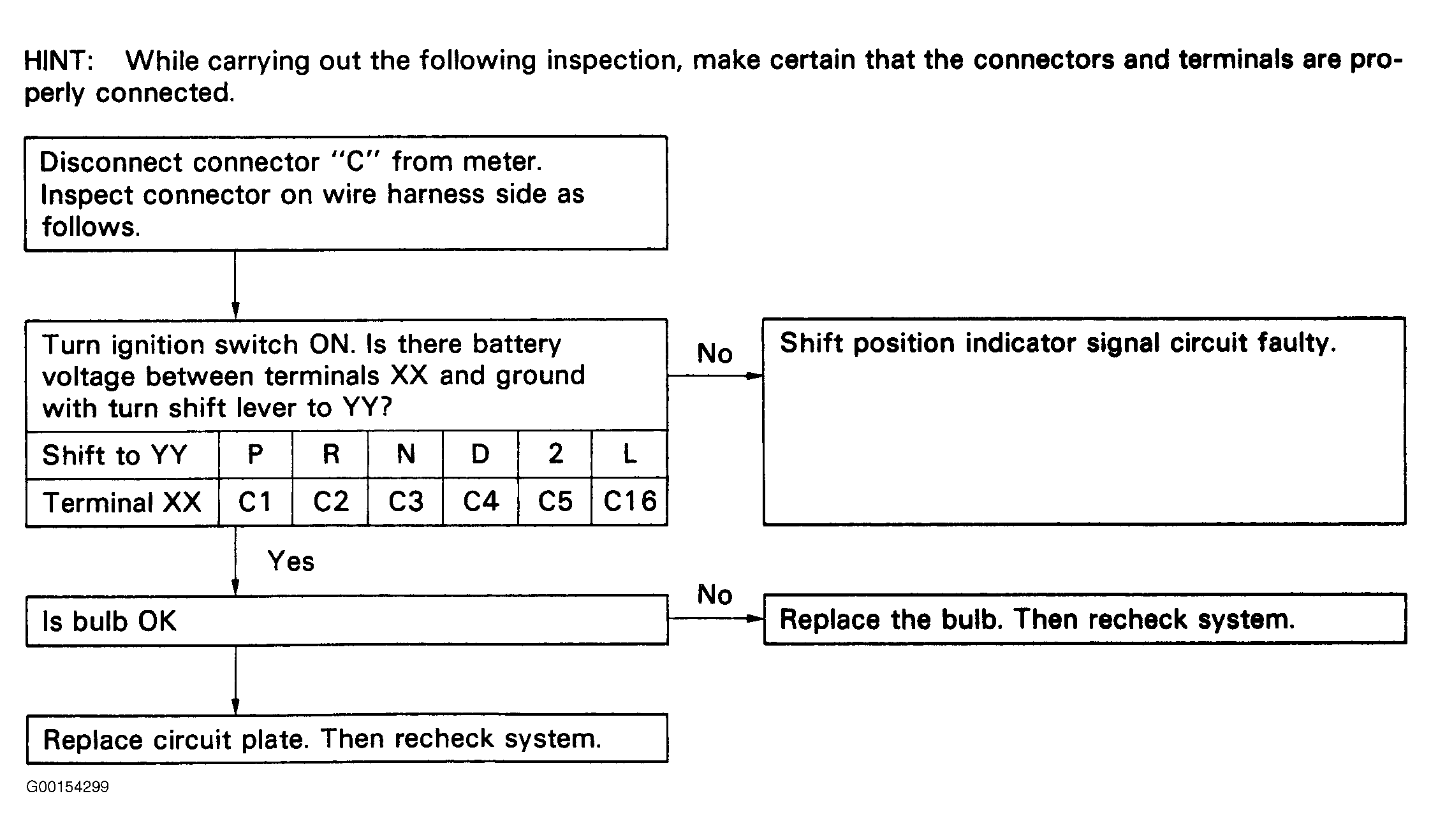

Fig 1: Testing Position Shift Indicator
G00154299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
