Switch Circuit

  1. Disconnect the connector from the switch and inspect the connector on the wire harness side as shown in Fig 1.
  2. If circuit is not as specified, inspect power source or wire harness.

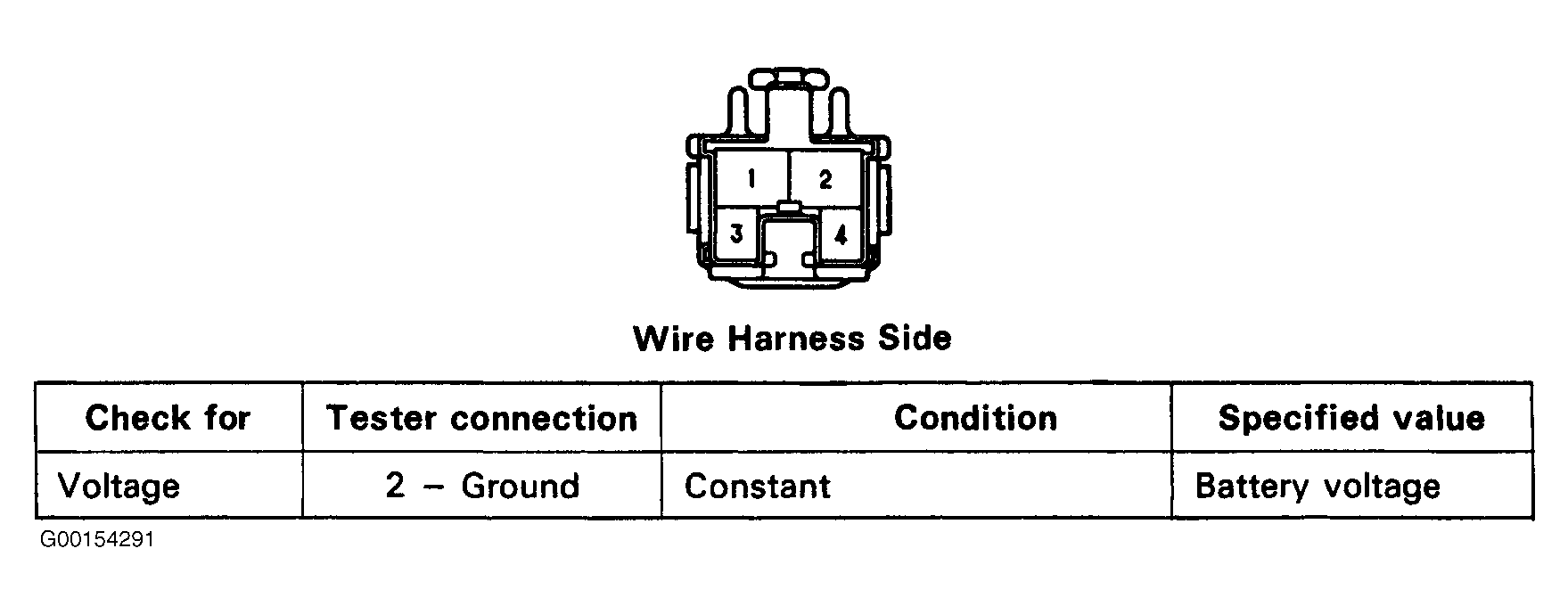

Fig 1: Testing Stop Light Switch Circuit
G00154291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
