Power Seat Control System

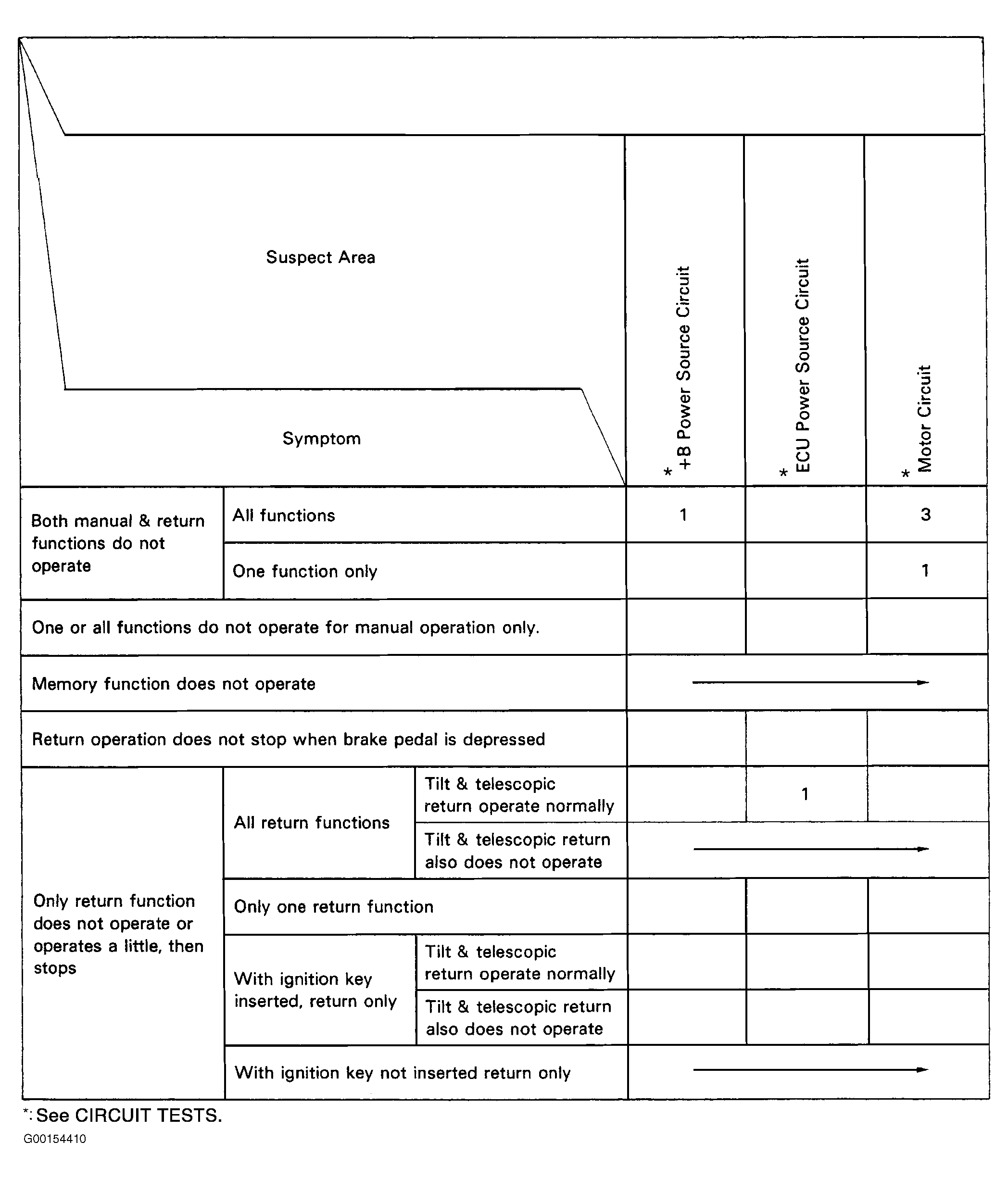

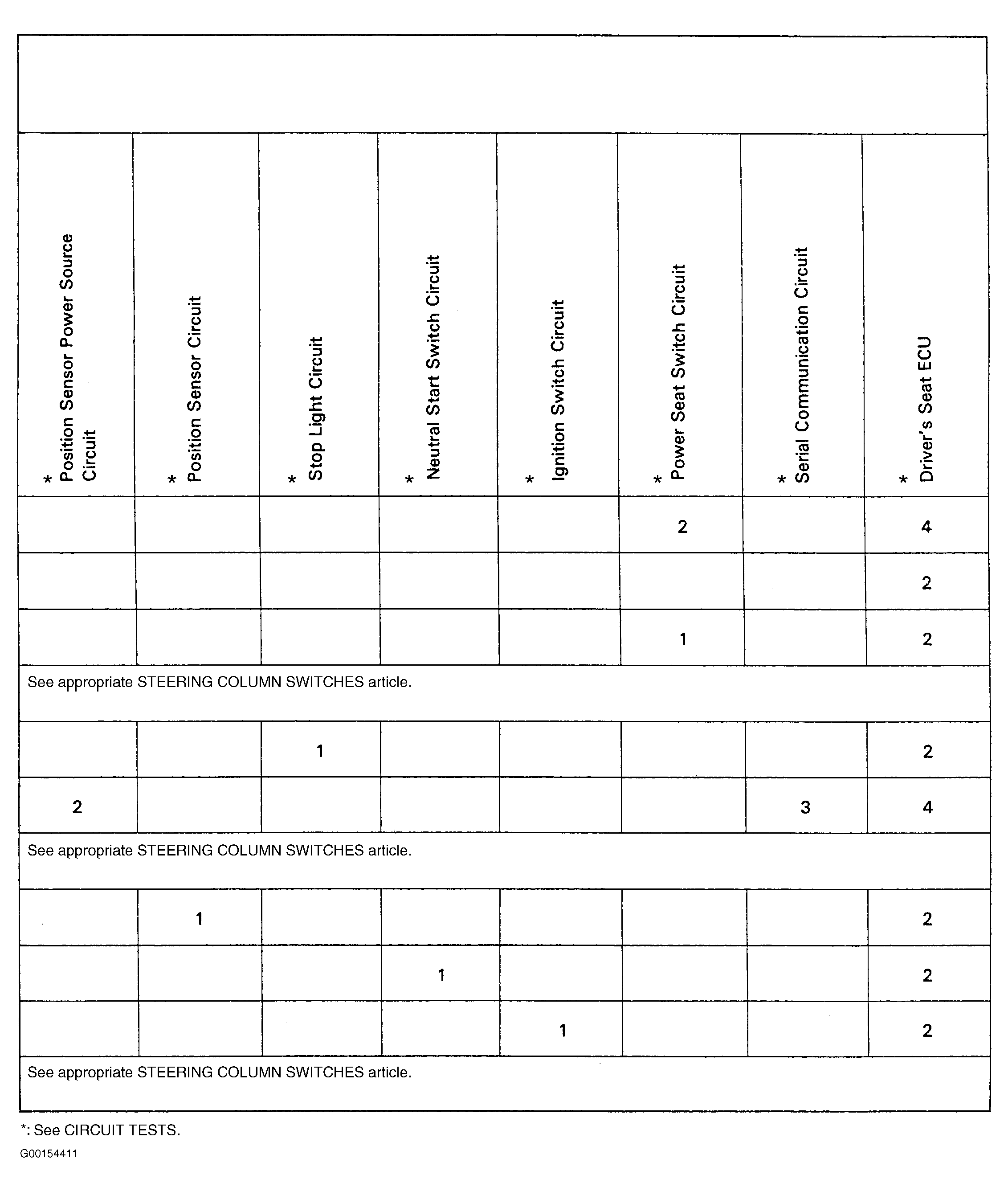

When checking the problem symptoms, pay attention to the following points to accurately define the symptoms and the extent of the problem. See Figure and Figure.

For "Not Functioning" problems":

1. Is the problem only in one part (e.g. "reclining only"), or everything?
2. Is the problem only in manual operation, only for position return operation, or for both manual and position return operation?
3. Is tilt, telescopic, outer and shoulder belt anchor operation normal?
4. Does the problem occur with the ignition key inserted, or not inserted?
