Armrest Base Plate/Power Window Switch: Installation

  1. Connect the connector.
  2. Slide the panel rearward and tap the panel to install it. See Fig 1.

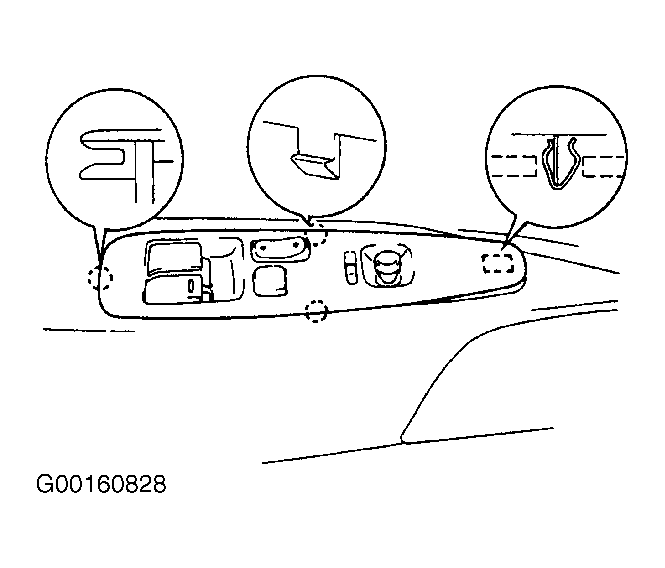

Fig 1: Installing Armrest Base Panel
G00160828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
