Tc Terminal Circuit

Connecting between terminals Tc and E1 of the check connector or the TDCL causes the ECU to display the diagnostic code by flashing the ABS warning light.

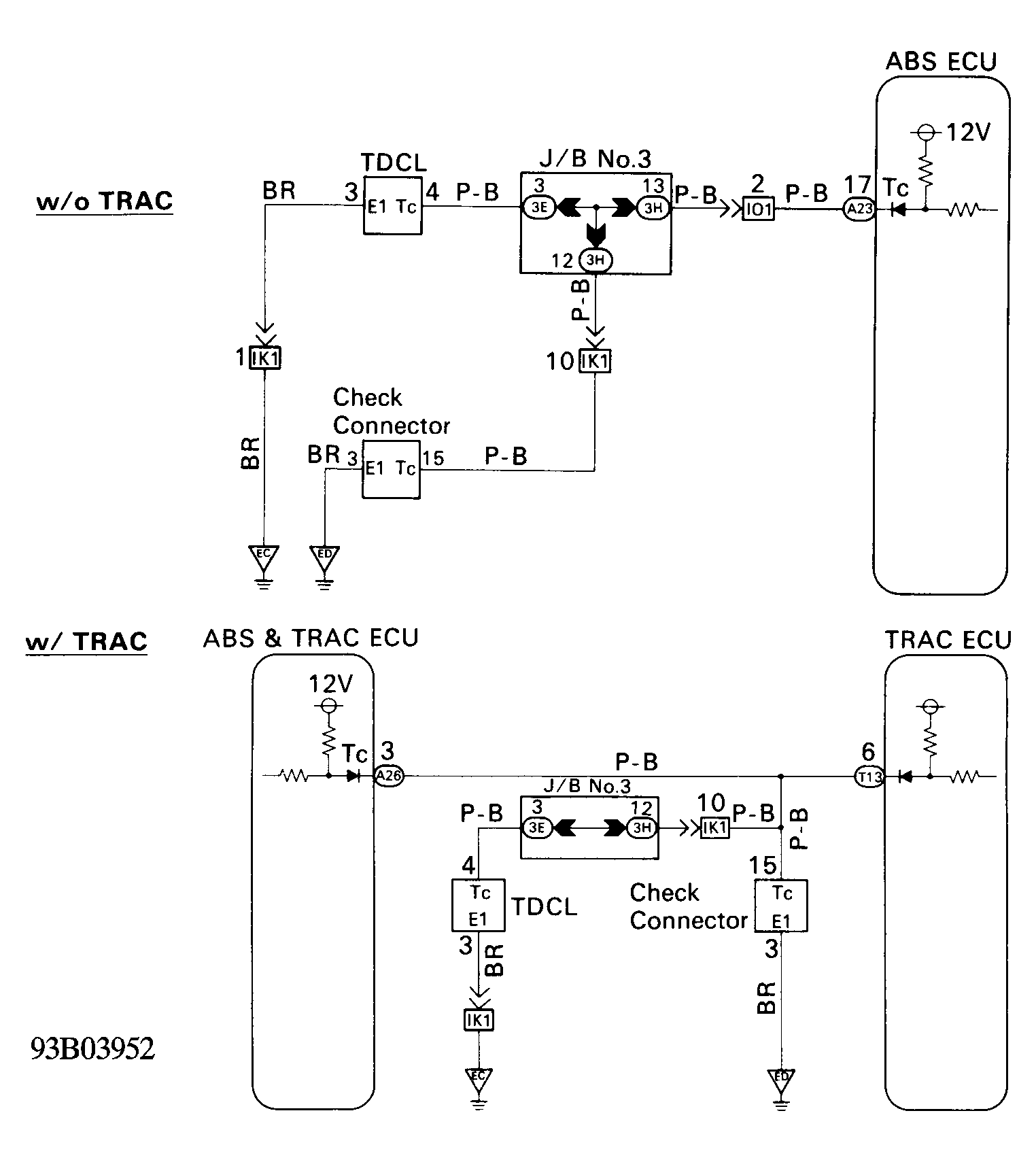

Fig 1: Tc Terminal Circuit Wiring Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

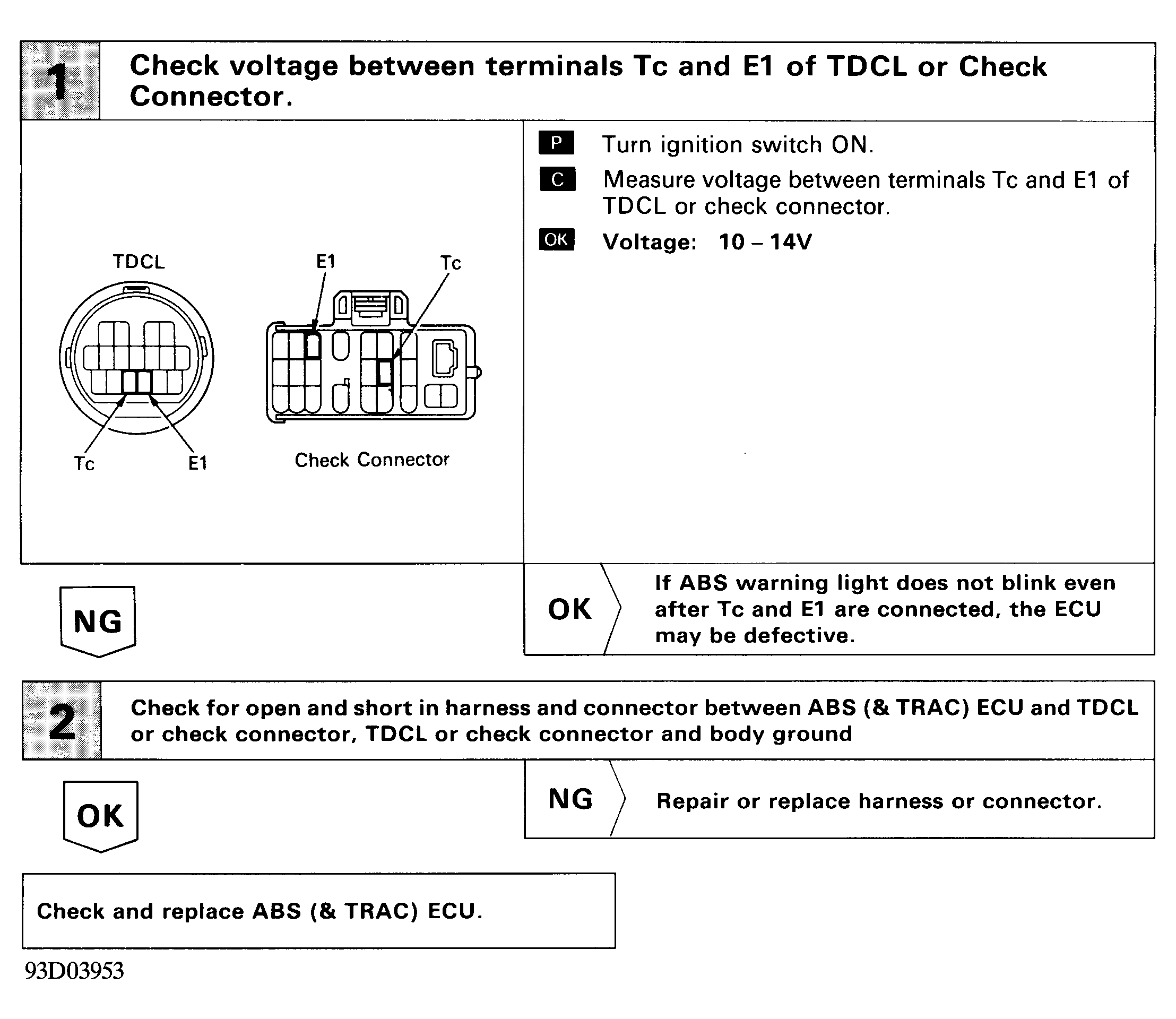

Fig 2: Voltage Check At Tc & E1 of Check Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
