Cluster Circuit Tests

Remove cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Using a DVOM, test cluster circuit. For testing, see Fig 4- Fig 10 . For connector identification, see Fig 1- Fig 3.

Fig 1: Identifying Instrument Panel Harness Connectors (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

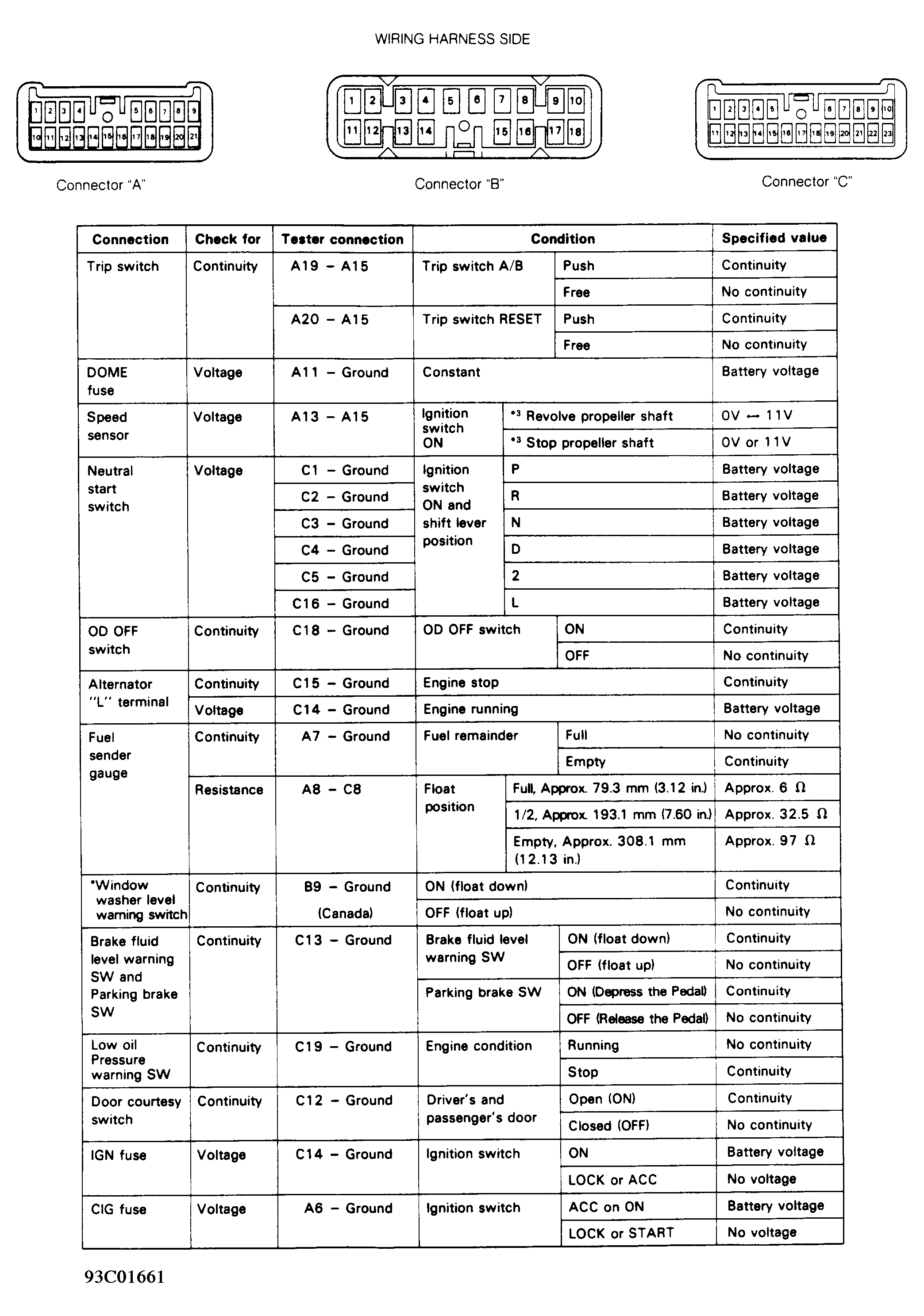

Fig 2: Identifying Instrument Panel Harness Connectors (LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Instrument Panel Harness Connectors (SC300 & SC400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

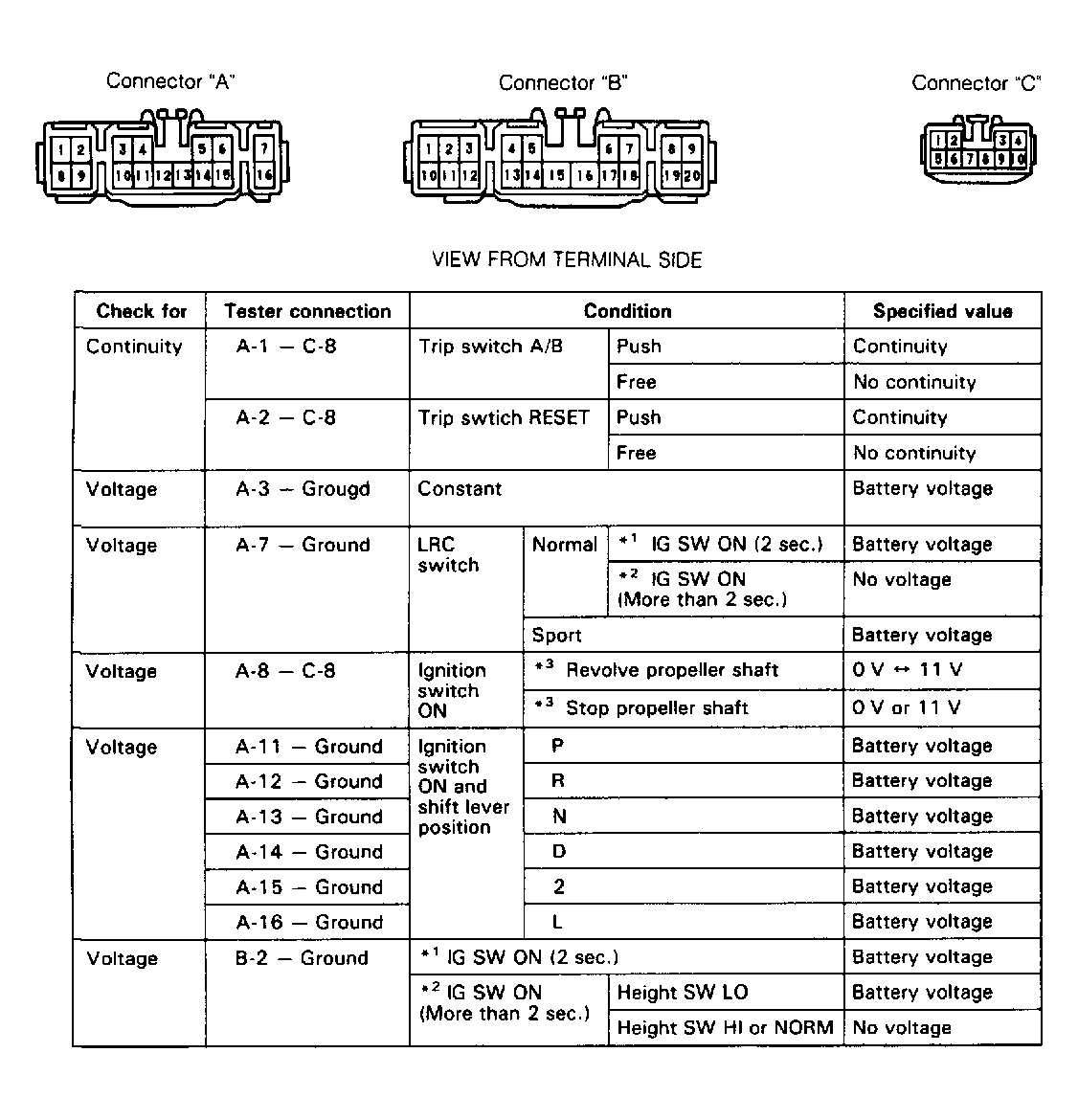

Fig 4: Testing Instrument Panel Harness Connectors (ES300 - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

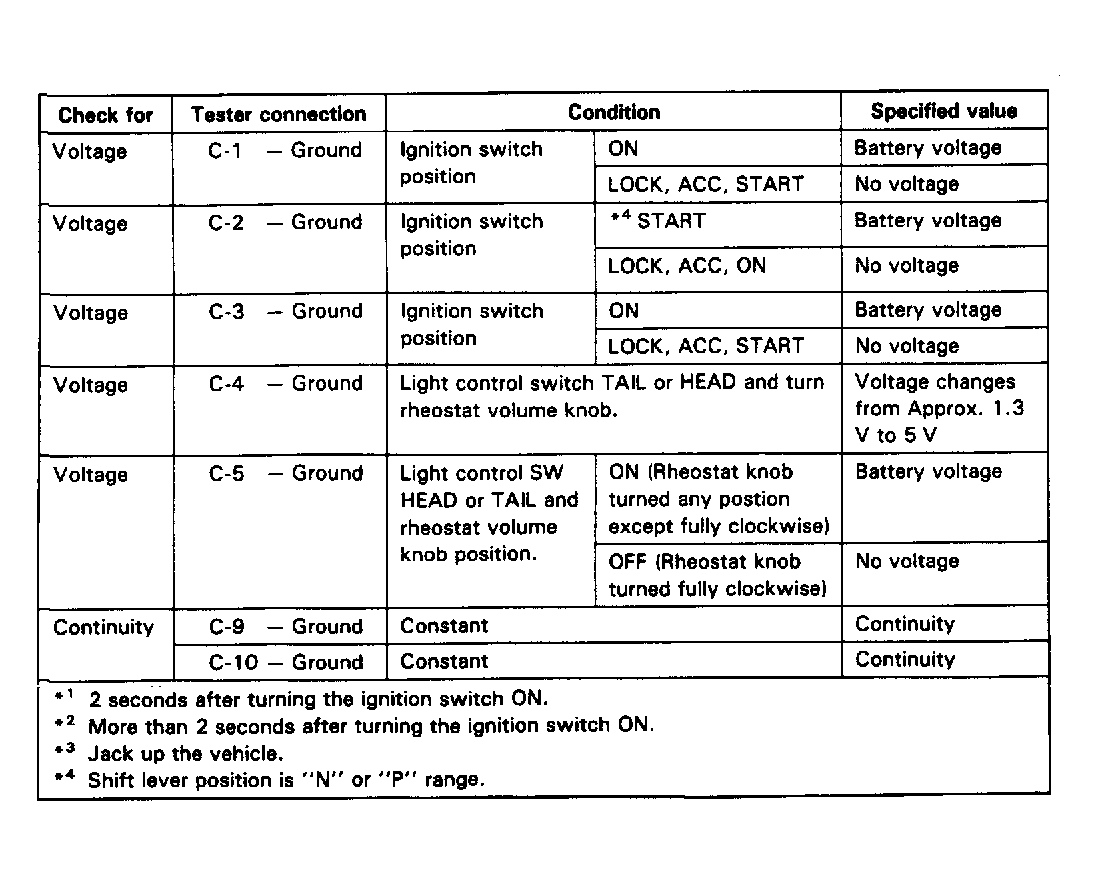

Fig 5: Testing Instrument Panel Harness Connectors (ES300 - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

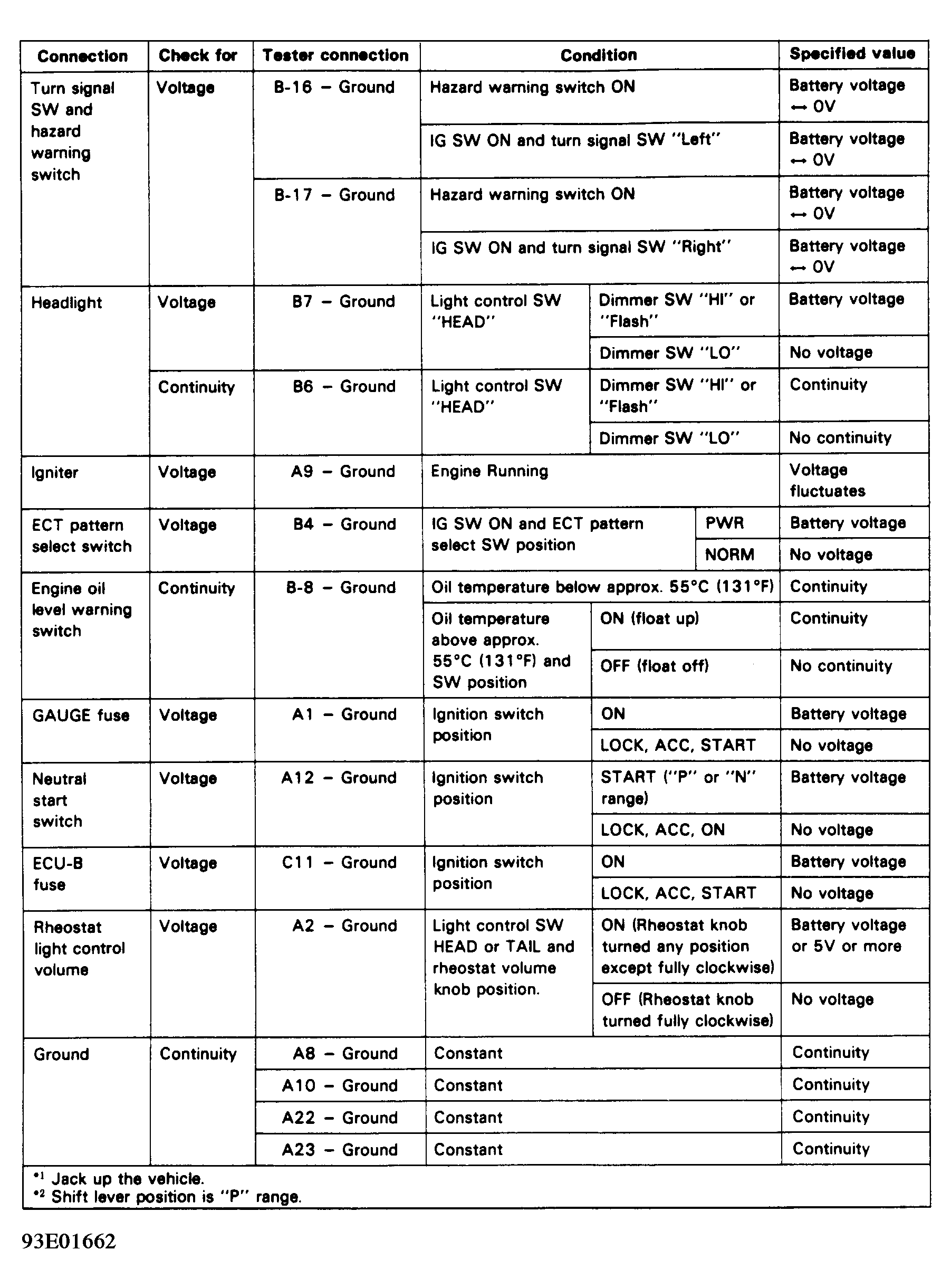

Fig 6: Testing Instrument Panel Harness Connectors (LS400 - 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

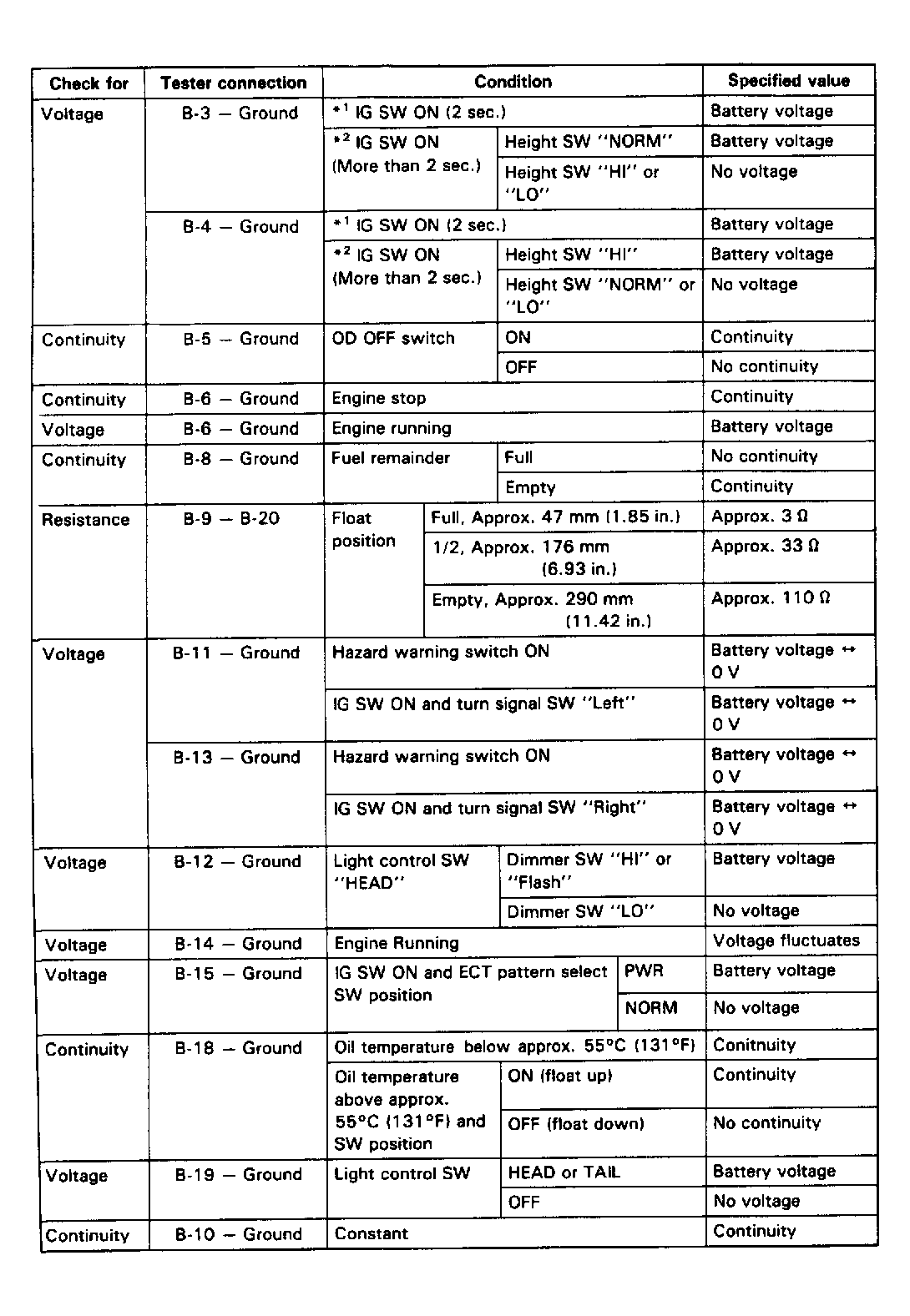

Fig 7: Testing Instrument Panel Harness Connectors (LS400 - 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Testing Instrument Panel Harness Connectors (LS400 - 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

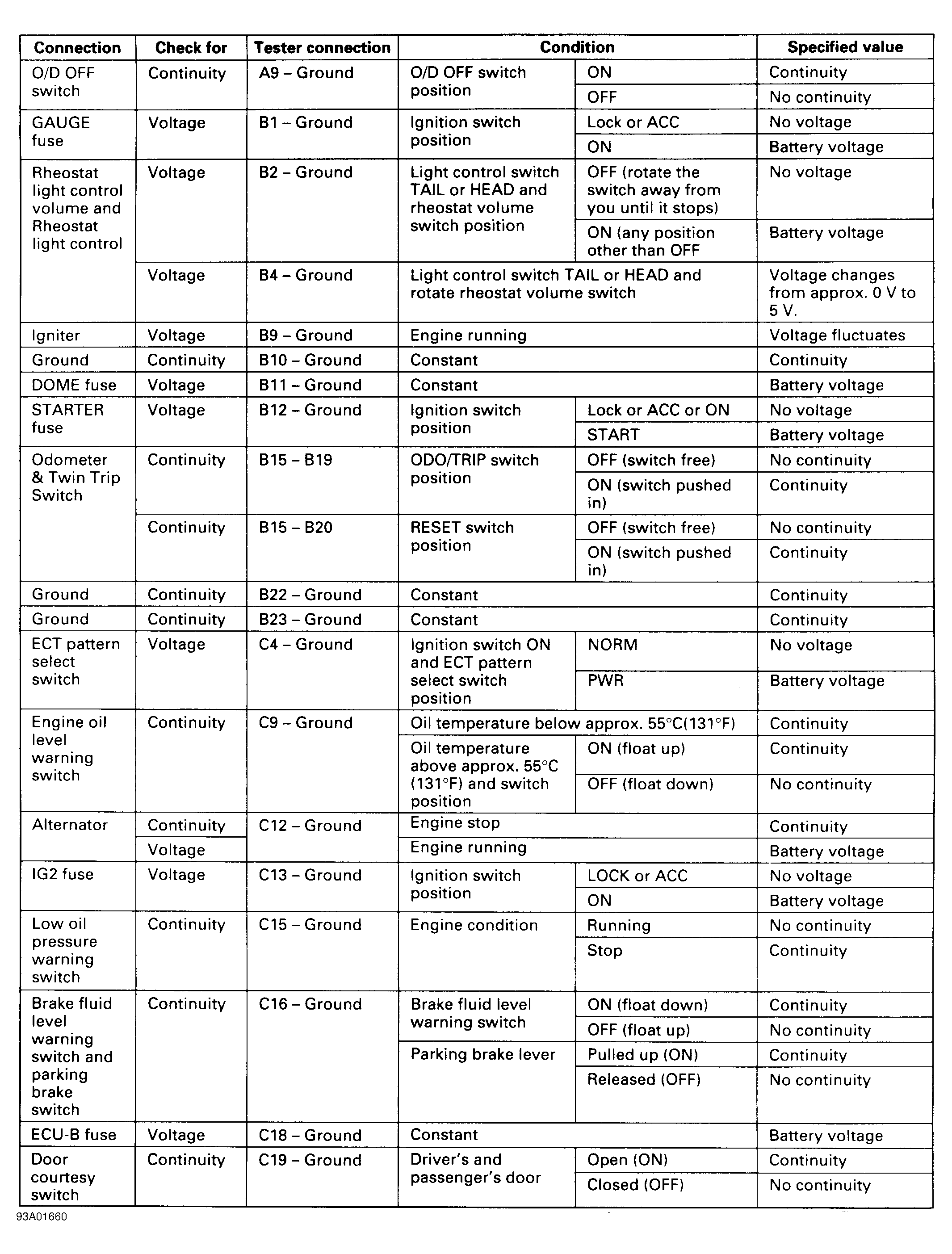

Fig 9: Testing Instrument Panel Harness Connectors (SC300/SC400 - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Testing Instrument Panel Harness Connectors (SC300/SC400 - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
