Code 41 & 47 - Throttle Position Sensor (TPS) Signal & Sub-Throttle Position Sensor Signal
NOTE:
Code 41 refers to throttle position sensor signal. Code 47 refers to sub-throttle position sensor signal.

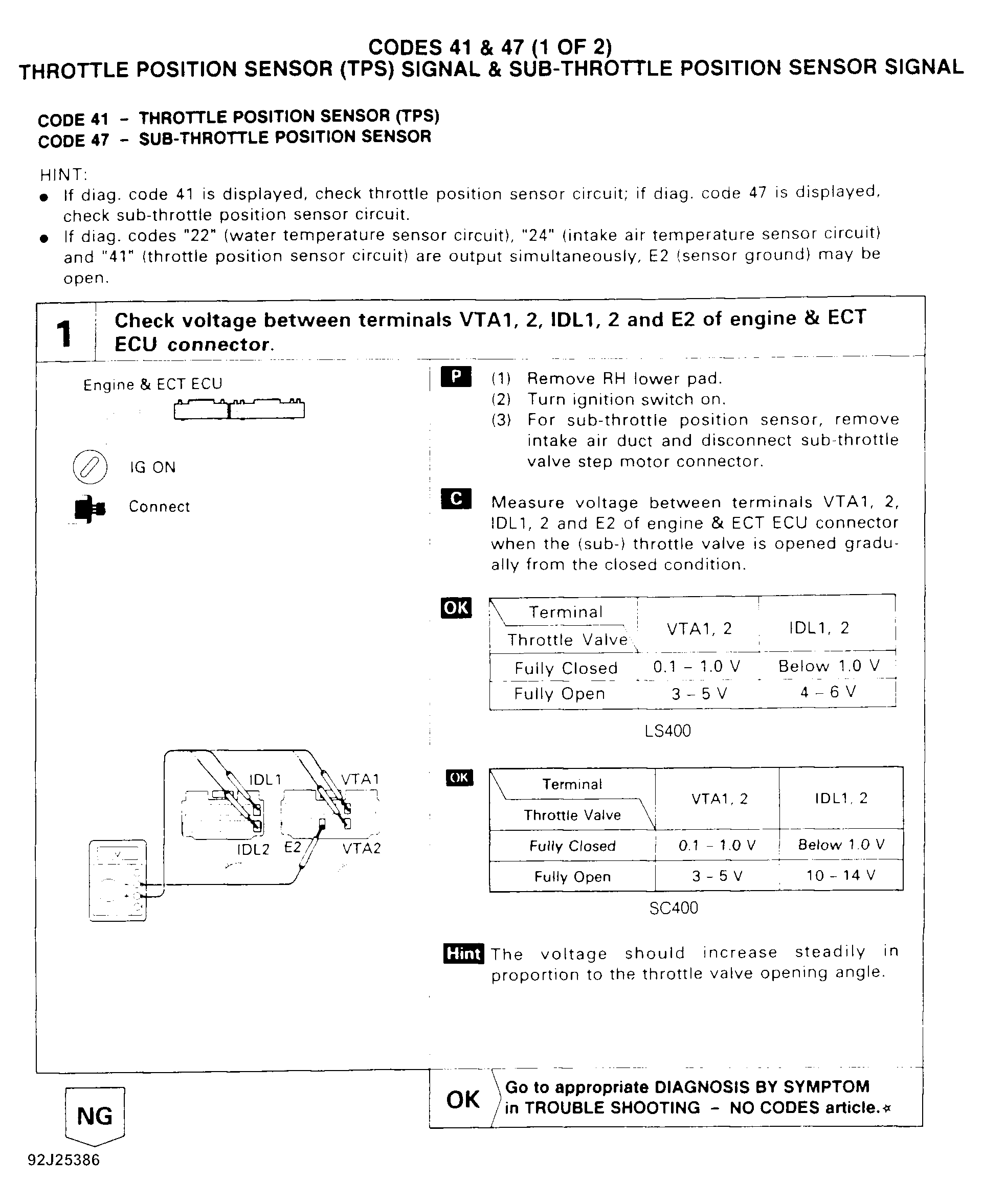

Fig 1: Codes 41 & 47 Flow Chart (1 of 2) - TPS & Sub-TPS Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

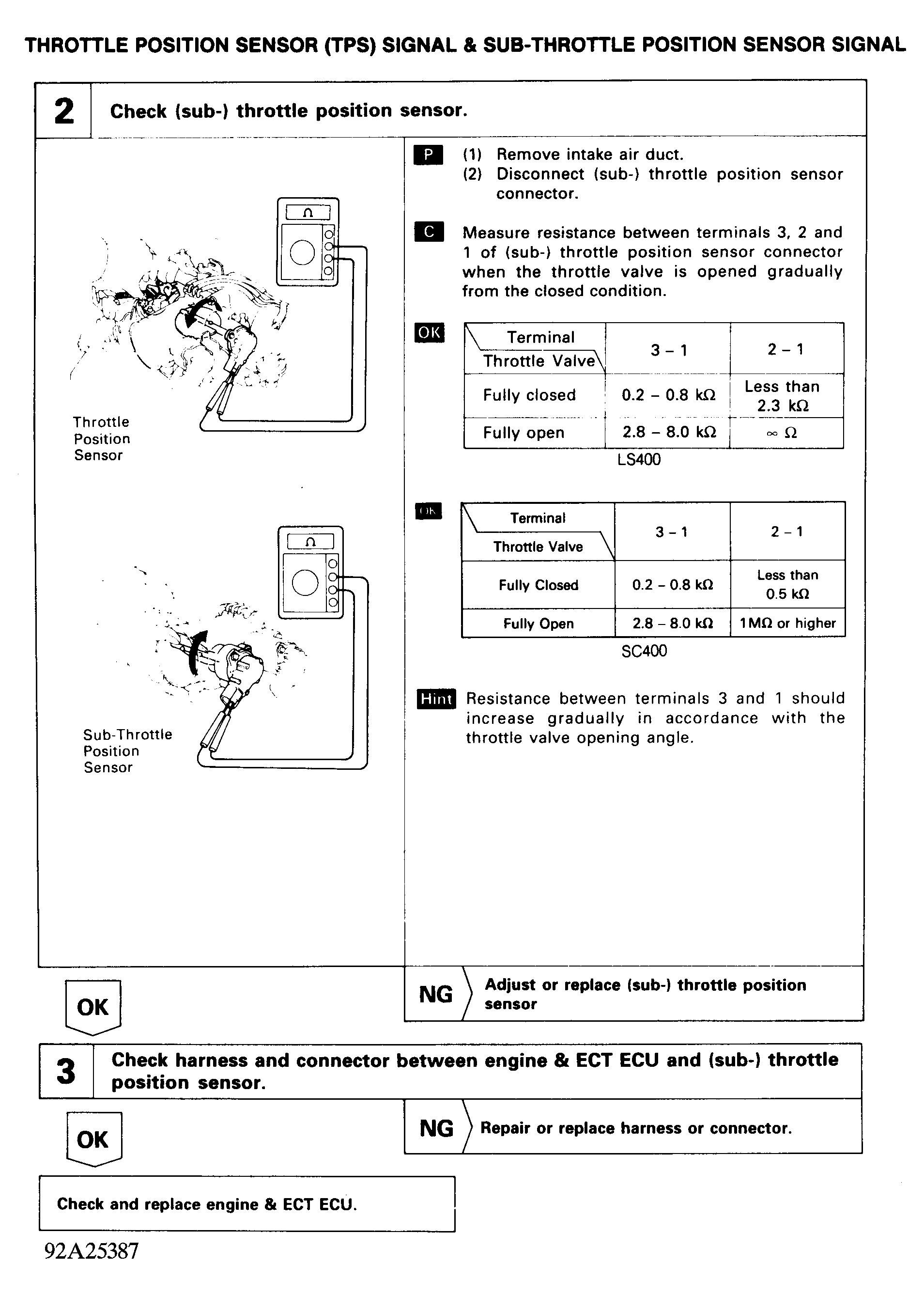

Fig 2: Codes 41 & 47 Flow Chart (2 of 2) - TPS & Sub-TPS Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
