Code 42 - Vehicle Speed Sensor (VSS) Circuit (SC400)

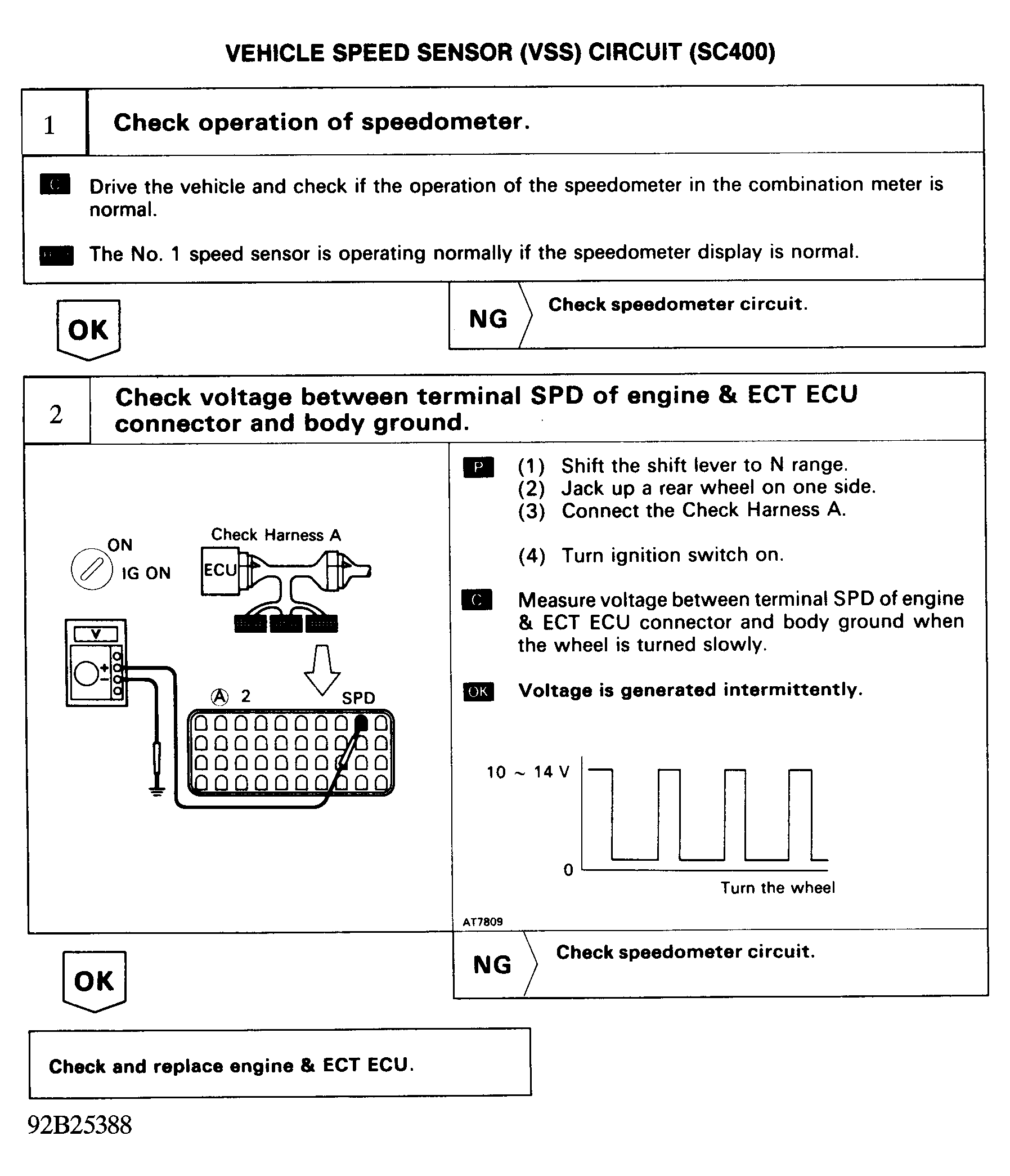

Fig 1: Code 42 Flow Chart - VSS Sensor Circuit (SC400)
G92B25388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
