Code 52, 53 & 55 - Knock Sensor

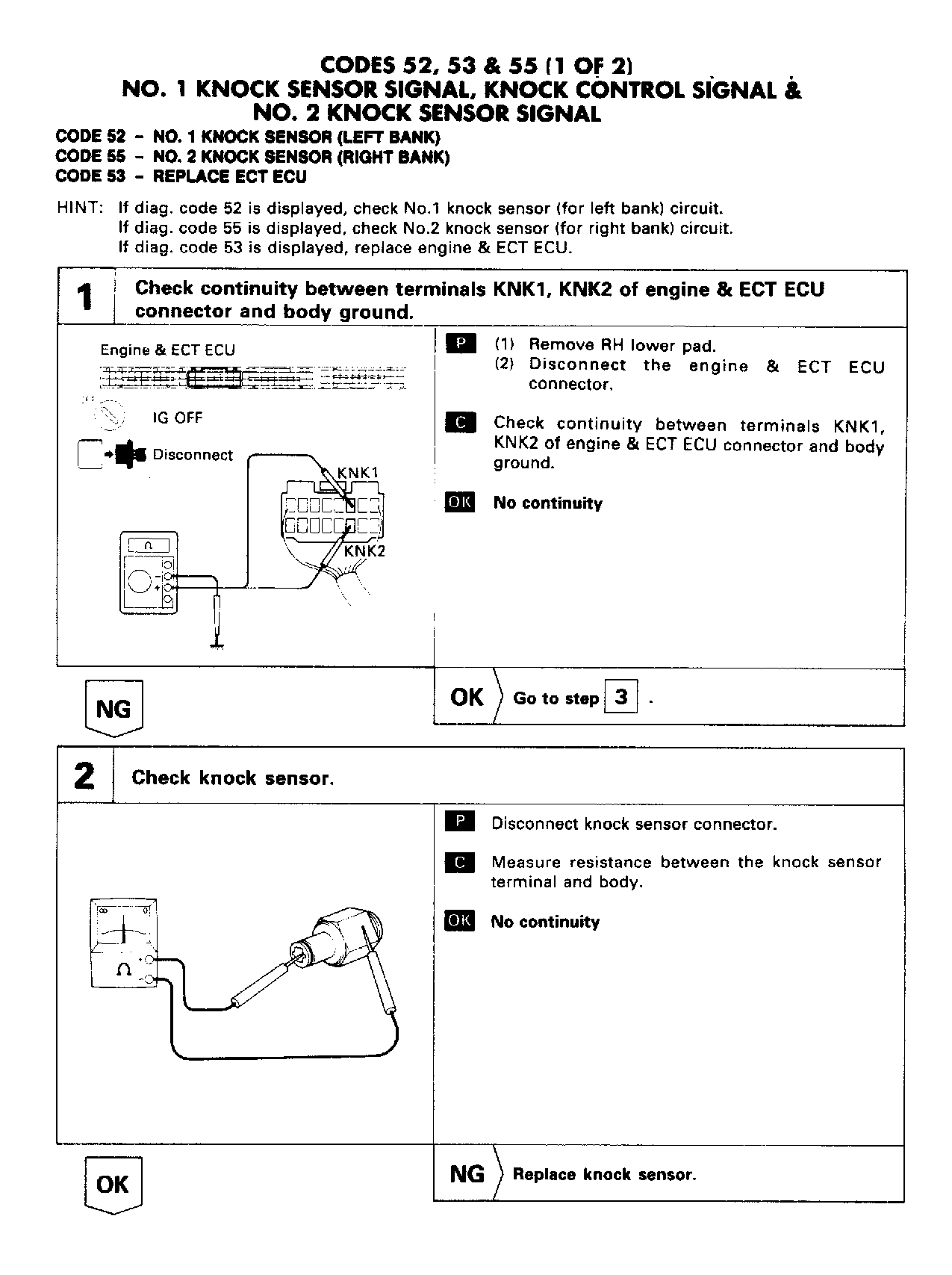

Fig 1: Codes 52, 53, 55 Flow Chart (1 of 2) - Knock Sensor
G90E18949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

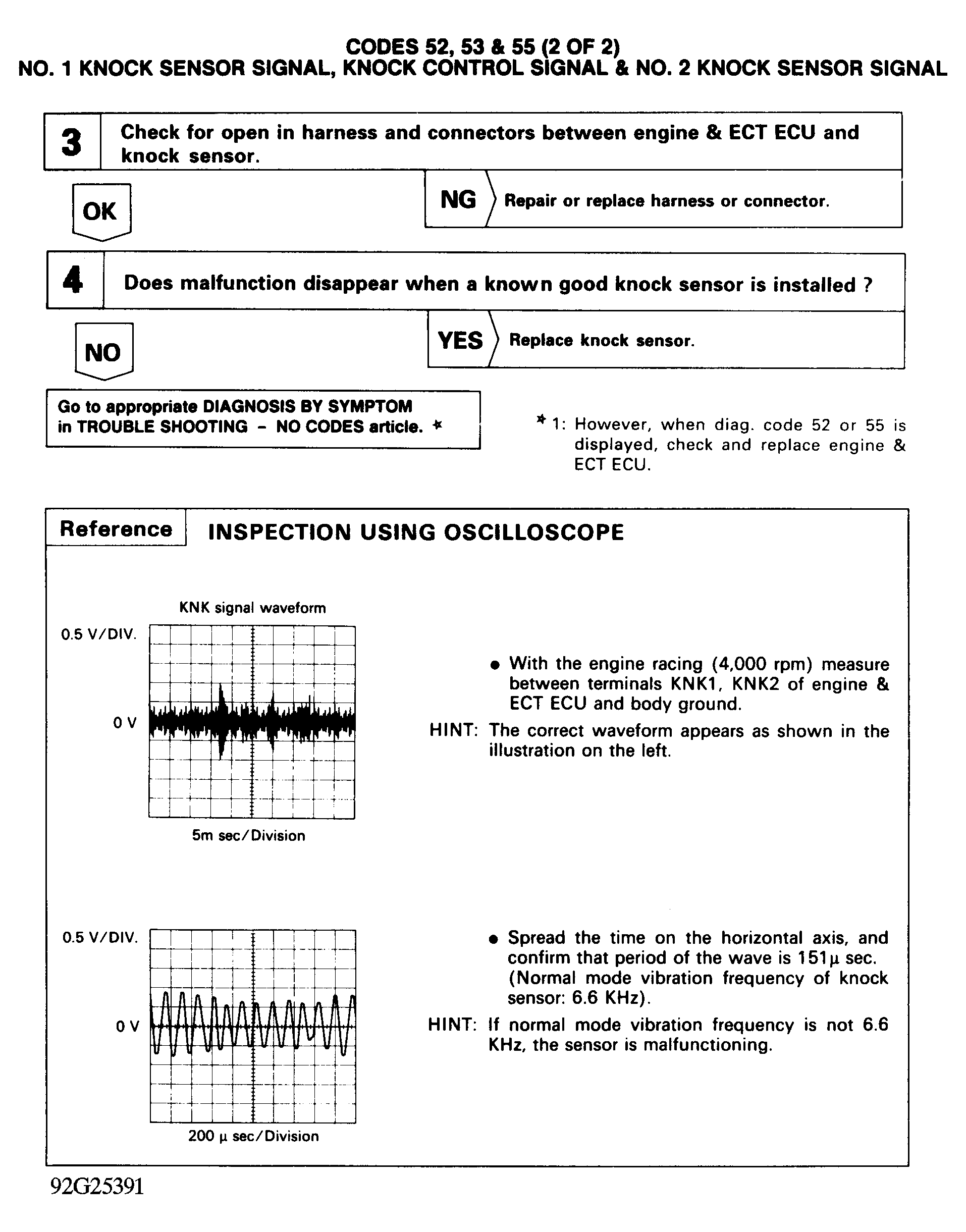

Fig 2: Codes 52, 53, 55 Flow Chart (2 of 2) - Knock Sensor
G92G25391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
