Code 78 - Fuel Pump Control Circuit (SC400)

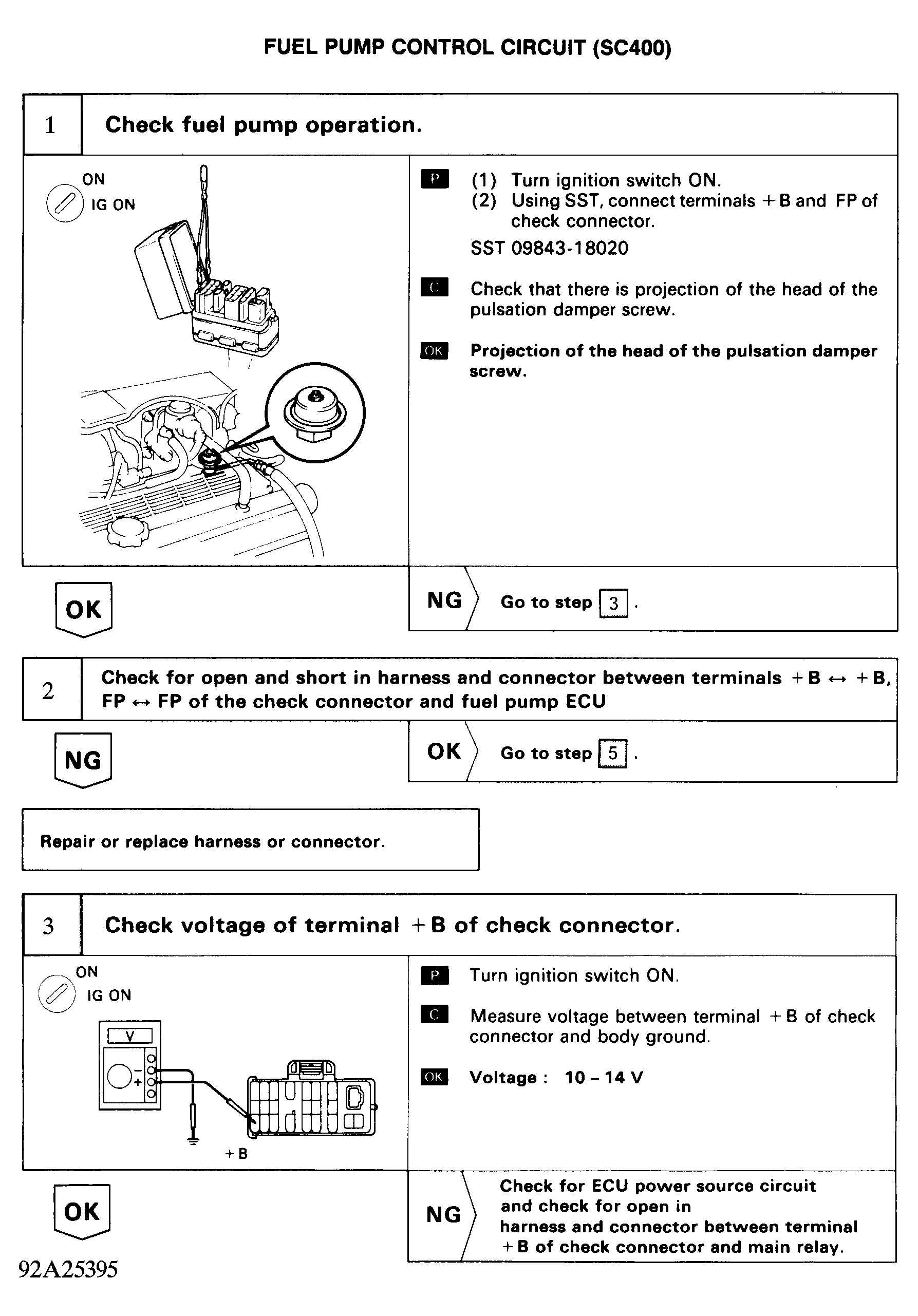

Fig 1: Code 78 Flow Chart (1 of 2) - Fuel Pump Control Ckt. (SC400)
G92A25395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code 78 Flow Chart (2 of 2) - Fuel Pump Control Ckt. (SC400)
G92H25368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
