Ecu Location

For ECU location, see Fig 1 or Fig 2.

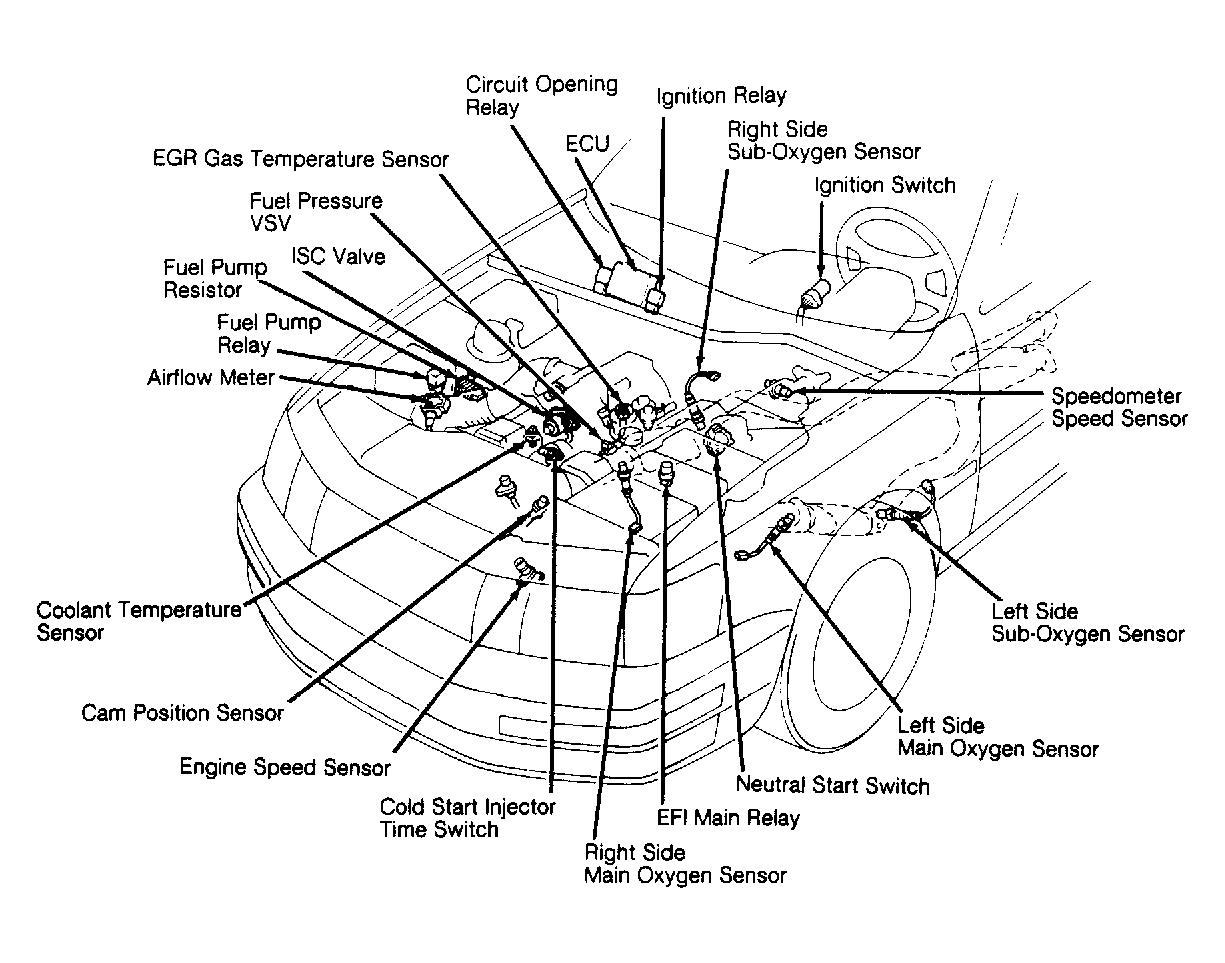

Fig 1: Locating Electronic Fuel Injection (EFI) Components (LS400)
G91E16307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Electronic Fuel Injection (EFI) Components (SC400)
G92C26122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
