1995 LEXUS Special Service Tools (SS95-001)
Publication date: 1995-07-21Reference number: SS95-001
1995 LEXUS SPECIAL SERVICE TOOLS
TECHNICAL SERVICE BULLETIN
Reference Number(s): SS95-001, Date of Issue:
July 21, 1995
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
1995 LEXUS SPECIAL SERVICE TOOLS
Model(s): All Lexus Models
Group: Special Service Tools
Bulletin No.: SS95-001
Date: July 21, 1995
SERVICE INFORMATION
The following TSIB contains information regarding the 1995 Special Service Tools (SST's). Both the Essential and Available SST's are listed by tool number, tool name, model application, illustration,/usage (for selected SST's) and appropriate section reference in repair manual. All Special Service Tools (SST's) may be ordered by contacting OTC at 1-800-933-8335.
SPECIAL SERVICE TOOL INDEX
The following SSTs have become essential since TSIB #SS94-001 dated 04/15,94.
ESSENTIAL SST'S
| Tool Number | Tool Name |
|---|---|
| 01001895-000 | Diagnostic Toolset Program Card Kit |

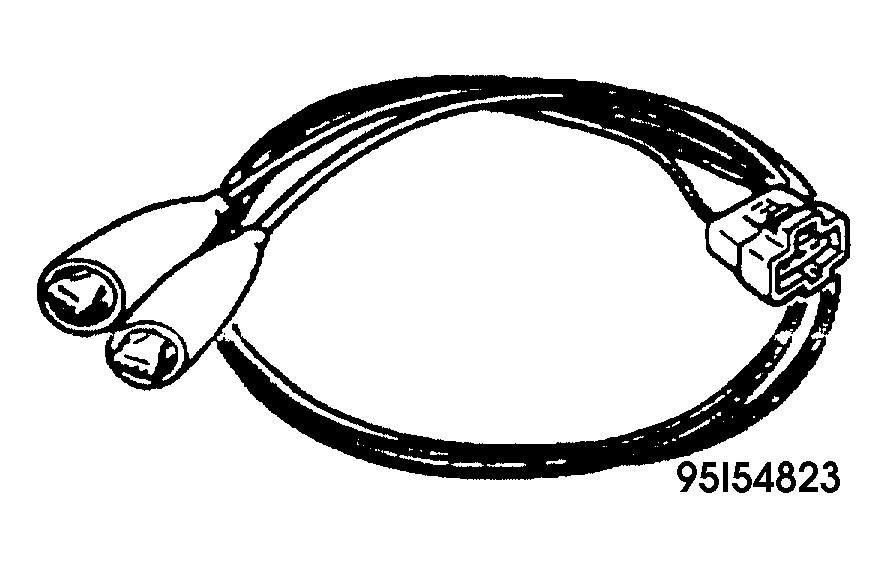

| 09990 00330 | Trac Bleed Wire See Fig 1 |
The following SSTs have become availabe since TSIB SS94-001 dated 04/15/94.
AVAILABLE SST'S
| Tool Number | Tool Name |
|---|---|
| ------------ | All Other Available SST's |
RECOMMENDED SST(V-BOB ACCESSORY)
| Tool Number | Tool Name |
|---|---|

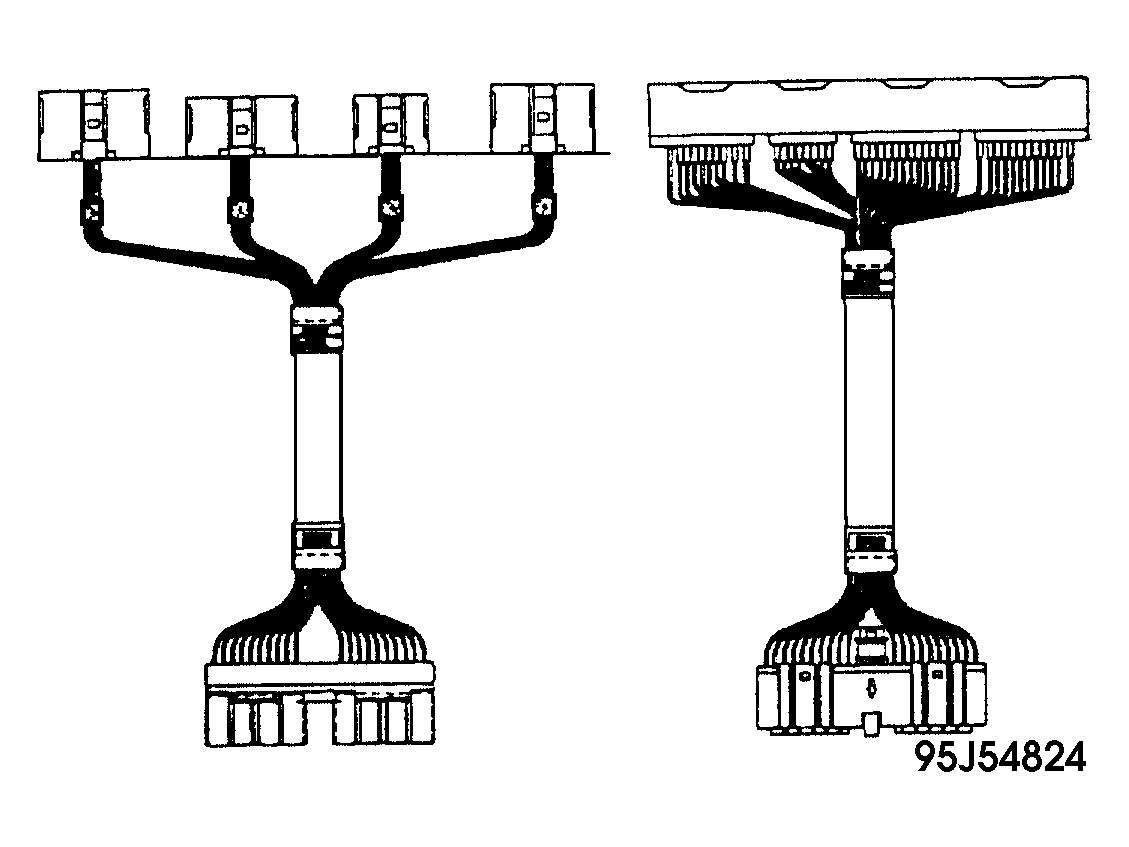

| 02001968 | ECU Connector Exchange Wire Harness #8 See Fig 2. |
ESSENTIAL SST'S
Please refer to the following tables to locate applicable models and repair manual procedures.
ESSENTIAL SST'S
| Usage | Application | R/M Section |
|---|---|---|
| Most current software and manual update pages | All models | N/A |
| See Fig 1. | 1995 LS 400 with trac | BR |
AVAILABLE SST'S
AVAILABLE SST'S
| Tool Number | Tool Name | Application | R/M Section |
|---|---|---|---|
| 01001872 | Asian Import Cartridge (For Diagnostic Tester) | Other Asian Imports | N/A |
| 01001929 | GM/Ford/Chrysler Cart. (For Diagnostic Tester) | GM/Ford/ Chrysler | N/A |
| 02001967 | ECU Connector Exchange (For Vehicle Break-Out Box). ABS Diagnosis | Currently No Lexus Application | BR |
| 09922-10010 | Varible Open Wrench | All Models | SR, PR |
| 09950-60010 | Replacer Set | 1990 LS 400 | AT, KG, SR, SA |
| 09950-70010 | HAndle Set | 1995 LS 400 | AT, KG, SR, SA |
ESSENTIAL SST'S
| Usage | Application | R/M Section |
|---|---|---|
| Theft Deterent System See Fig 2. | 1995 Lexus LS 400 | B/E |
