Neutral Start Switch

If vehicle starts in positions other than Neutral and Park, adjust neutral start switch. Loosen neutral start switch bolt and set shift lever to "N" position. Align groove and neutral base line on neutral start switch. See Fig 1. Hold switch in position and tighten bolt to 48 INCH lbs. (5.4 N.m) on ES300, or 115 INCH lbs. (13 N.m) on all other models.

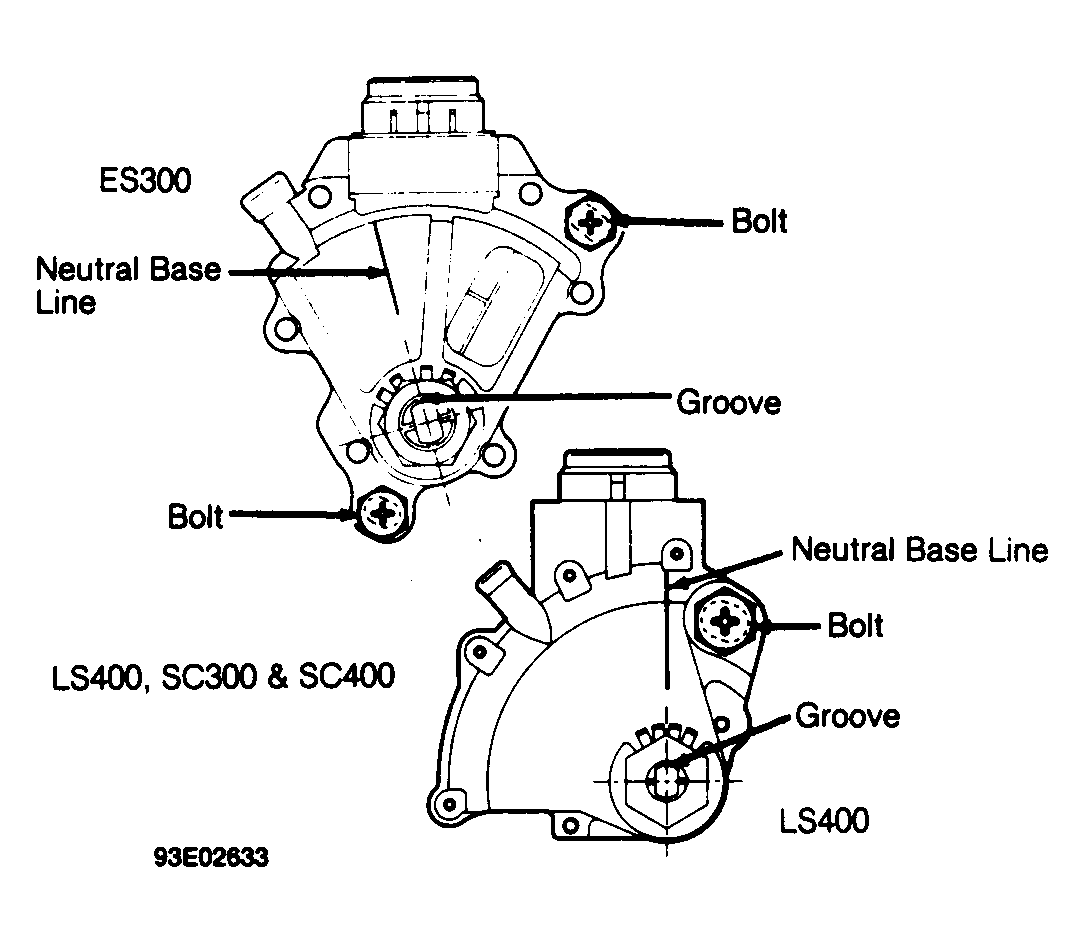

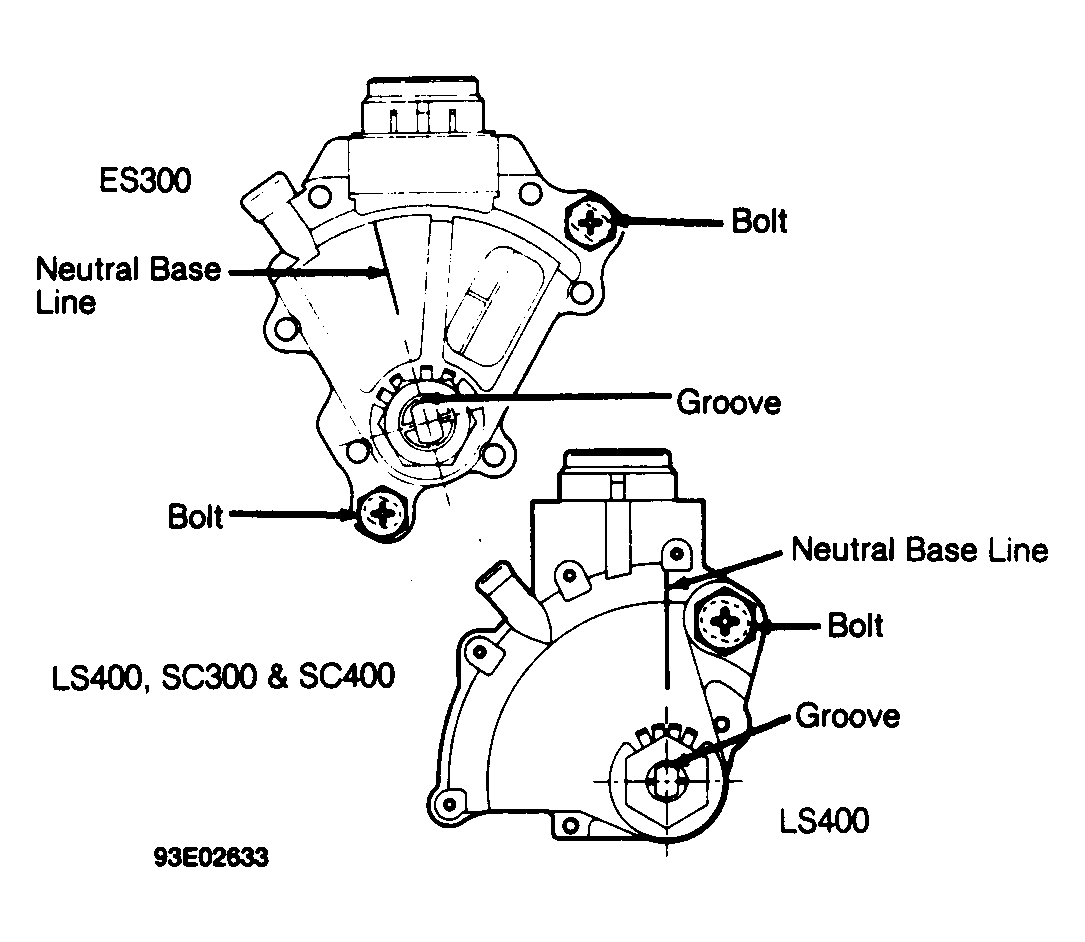

Fig 1: Adjusting Neutral Start Switch
G93E02633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
