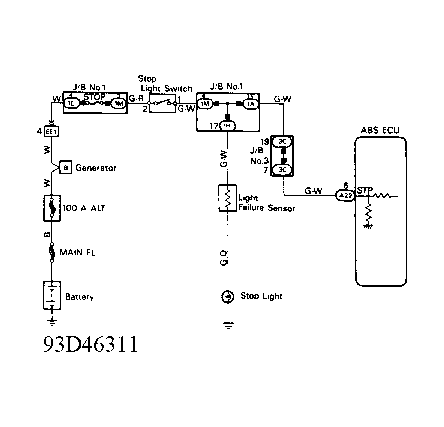

Stop Light Switch Circuit
This stop light switch senses whether the brake pedal is depressed or released, and send the signal to the ECU.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

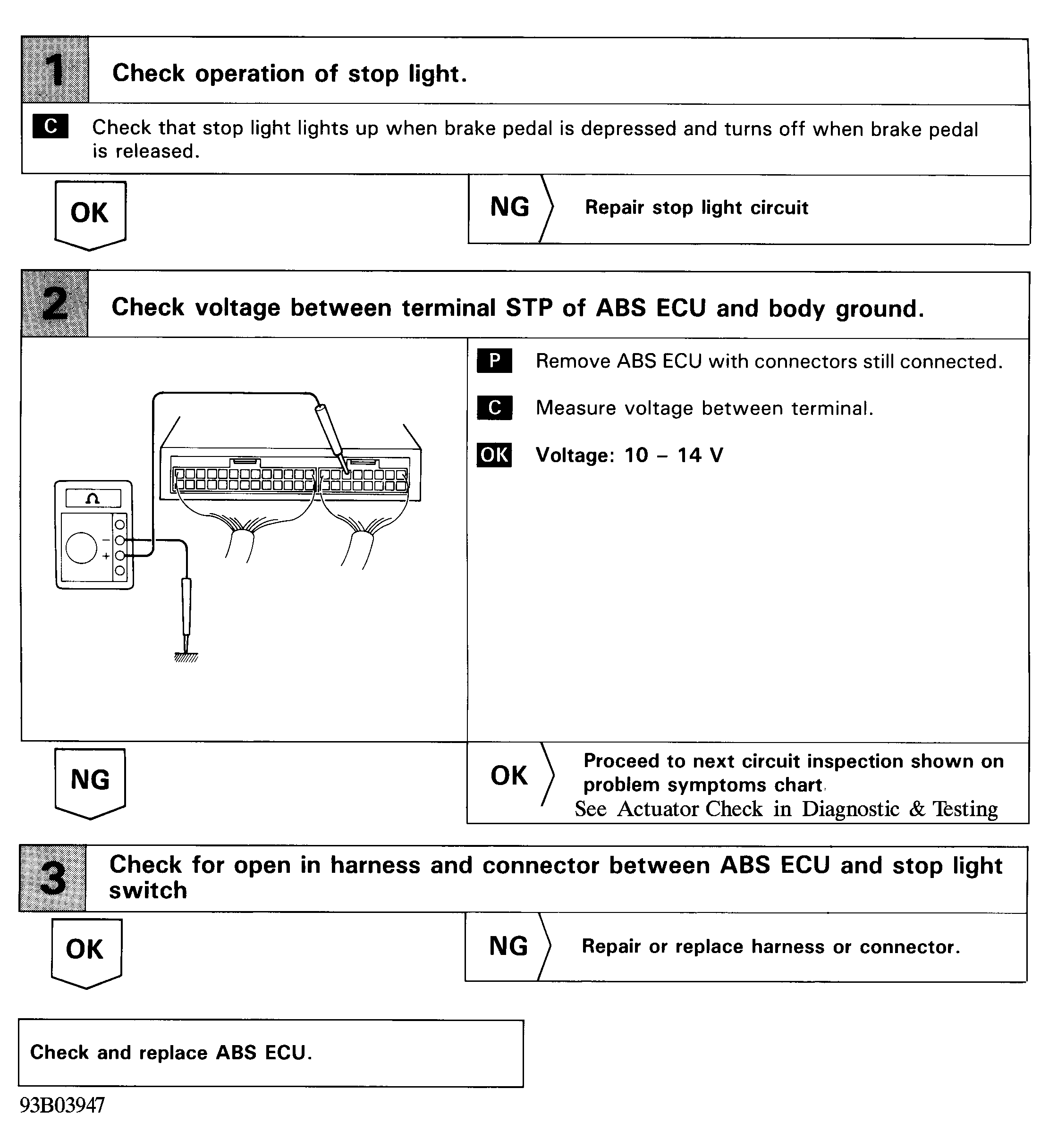

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 STOP LIGHT SWITCH WIRE COLOR ABBREVIATIONS
| Abbreviation |
Wire Color |
| G-R |
Green/Red |
| G-O |
Green/Orange |
| G-W |
Green/White |
