Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS | Behind right side of dash. |
| Anti-Theft/Door Lock ECU | Behind right side of dash. |
| Cooling Fan Control Unit | Behind right side of dash, behind glove compartment. |
| Cruise Control ECU | Behind right side of dash. |

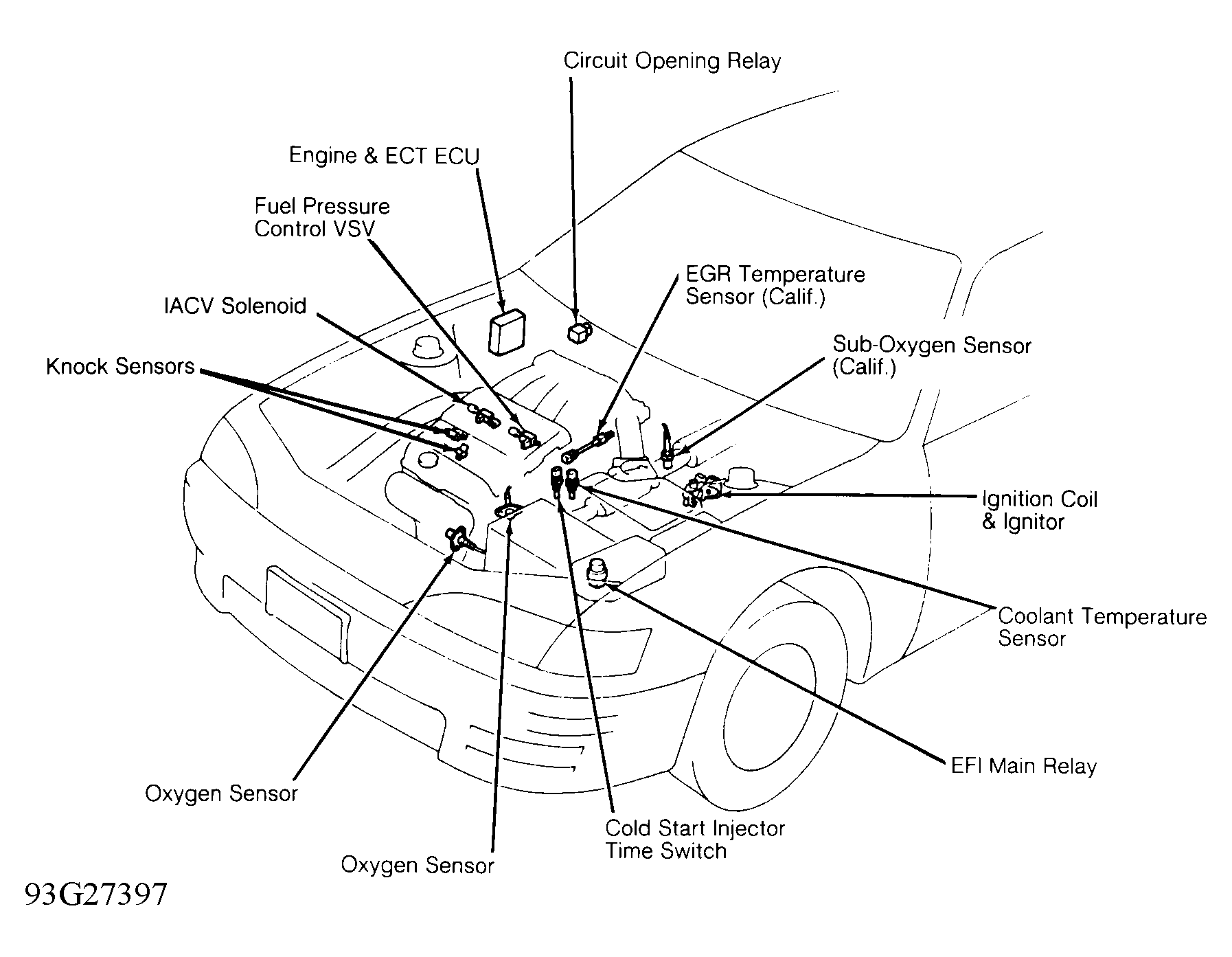

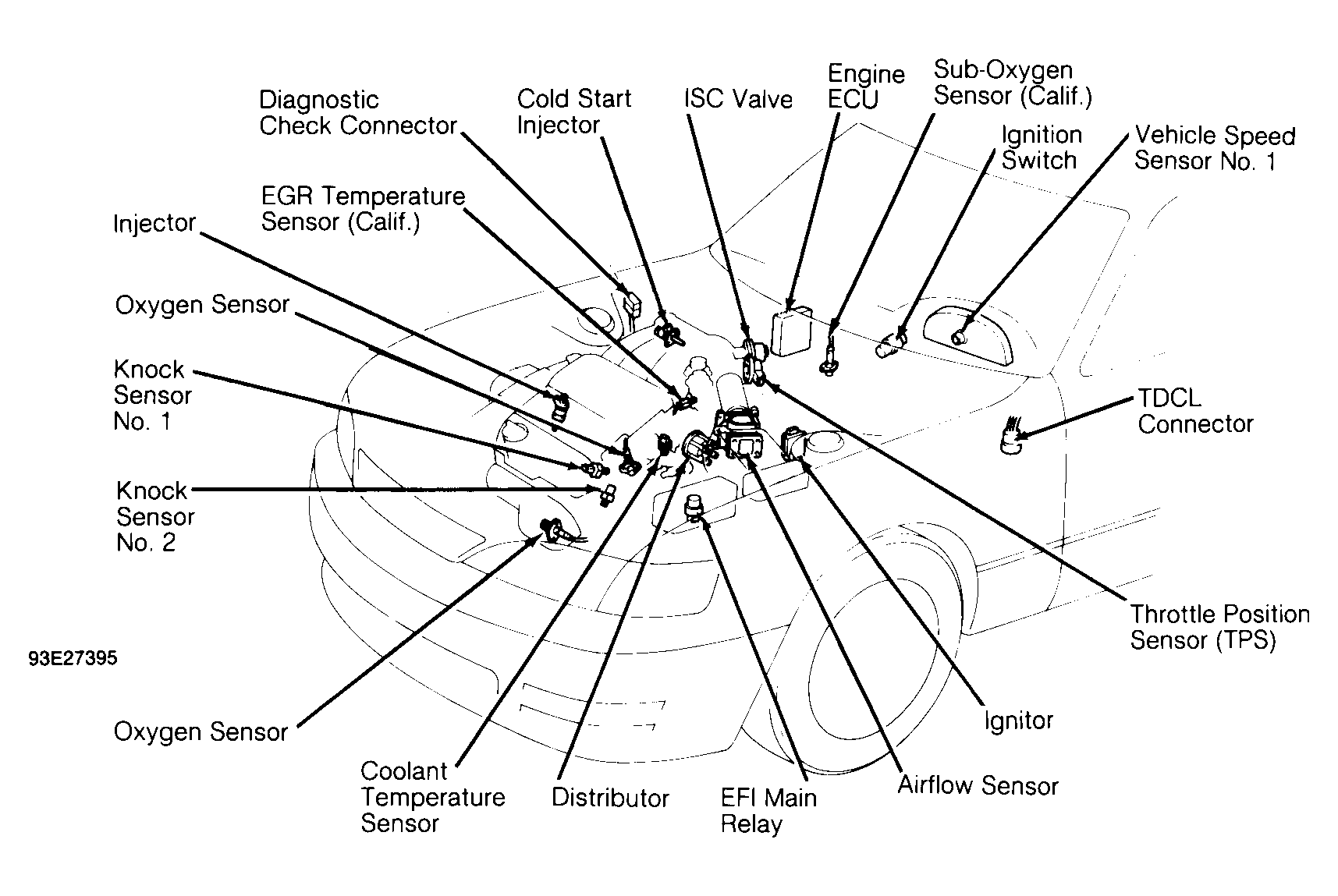

| Engine Control Module (ECM) | Behind right side of dash. See Figure & Figure . |
| Shift Lock Control ECU (A/T) | Under center console, behind shifter. |
| Wireless Door Lock | On right side of luggage compartment. |
