System Specifications

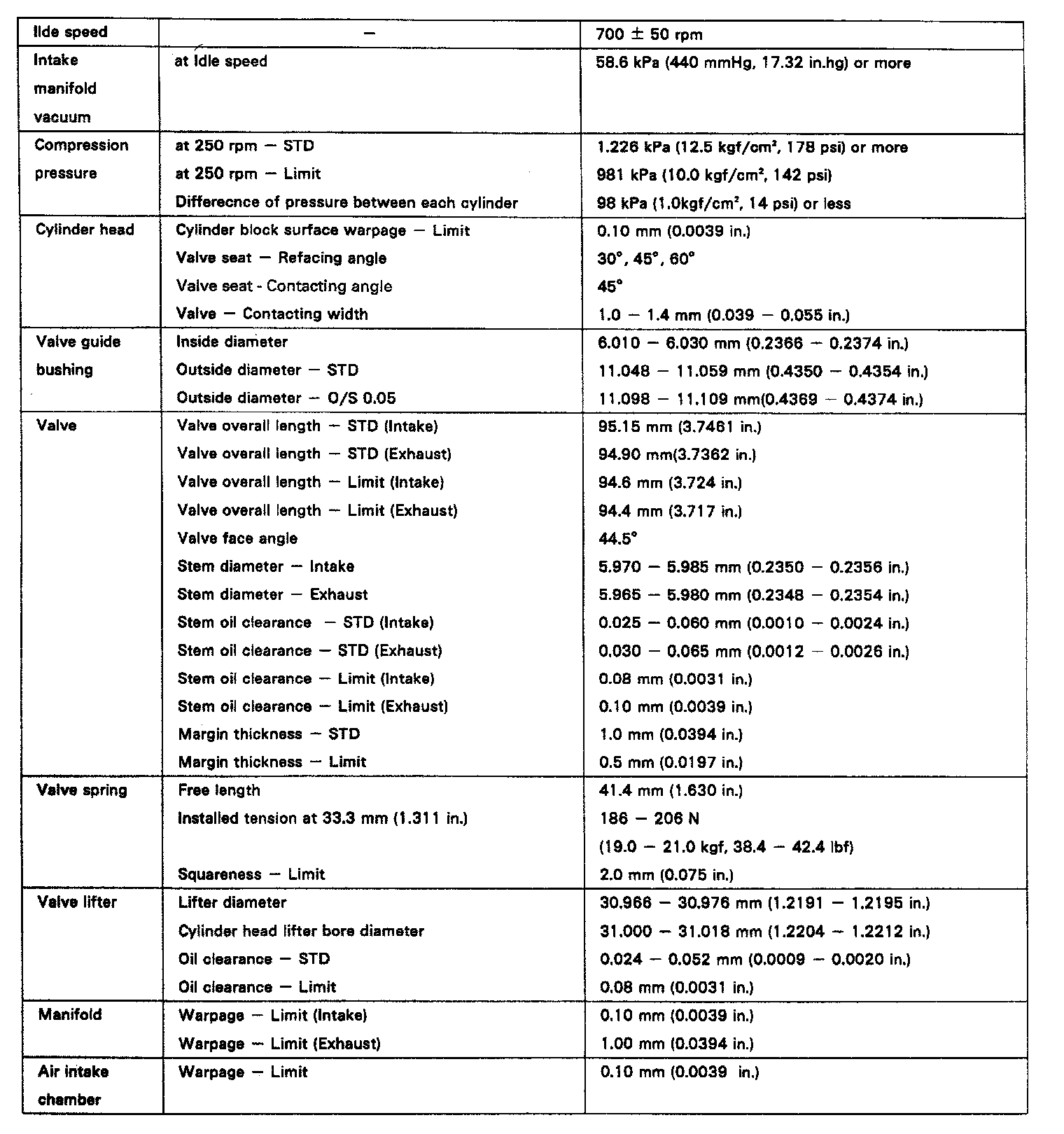

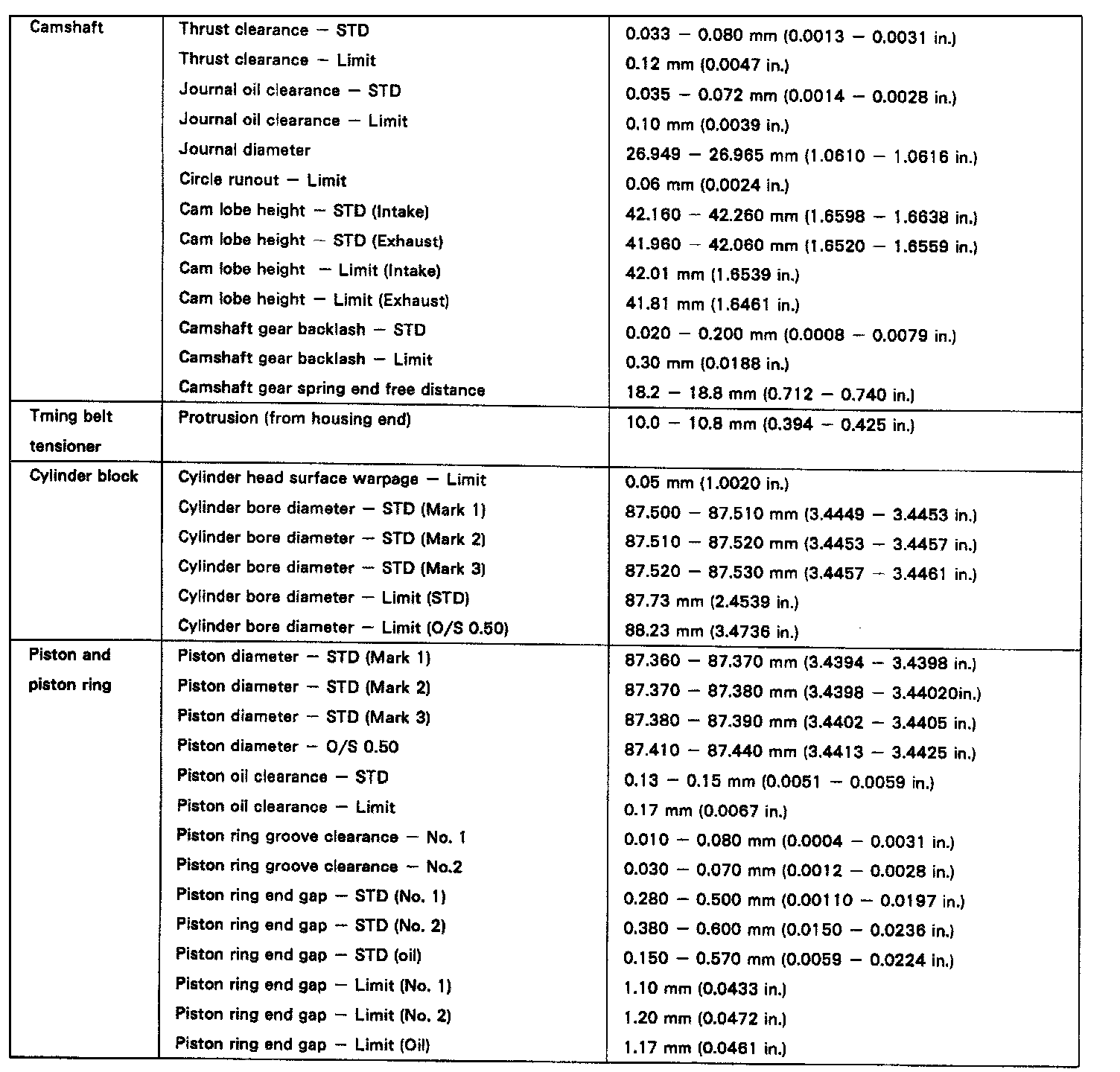

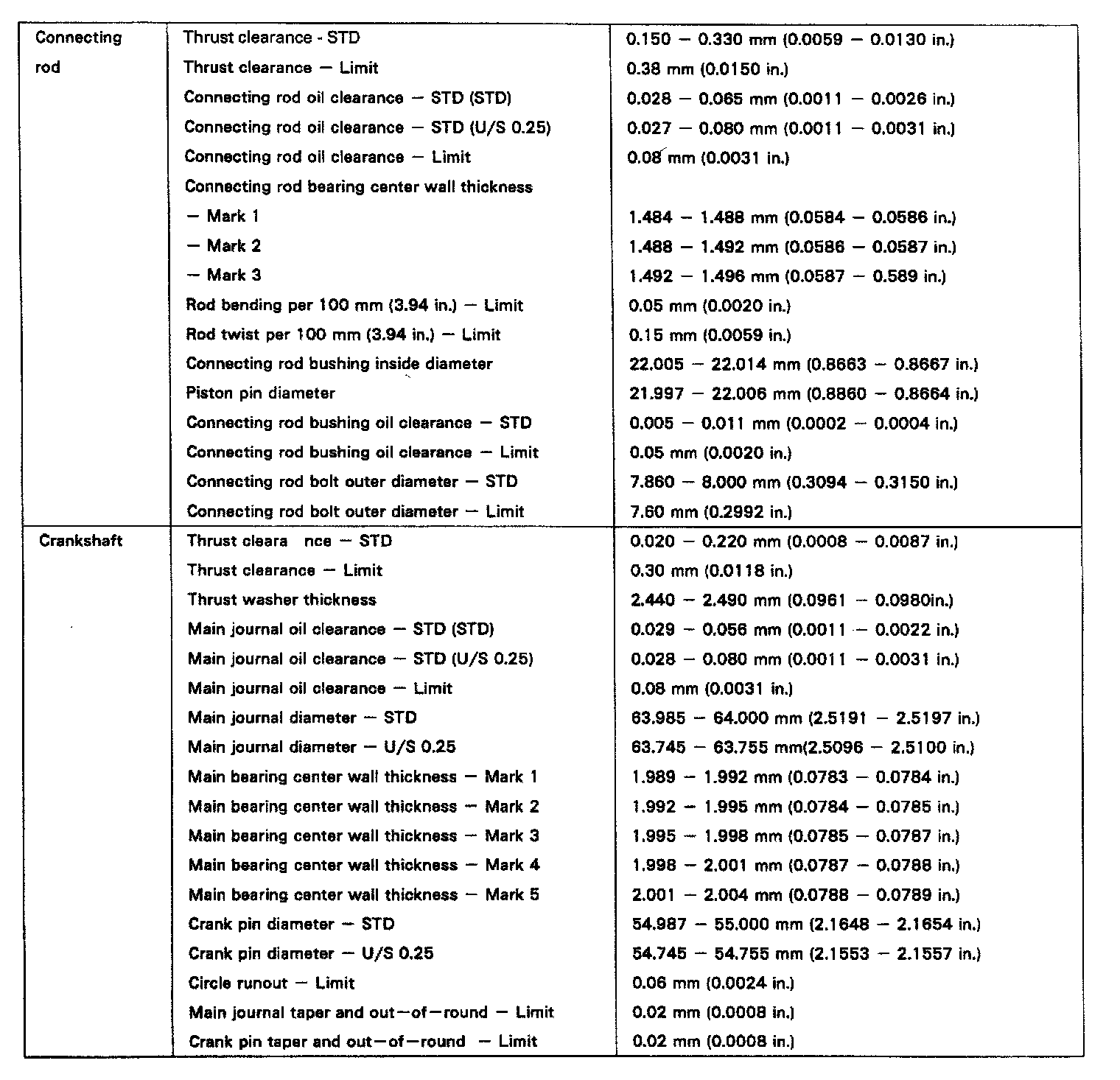

ENGINE SPECIFICATIONS

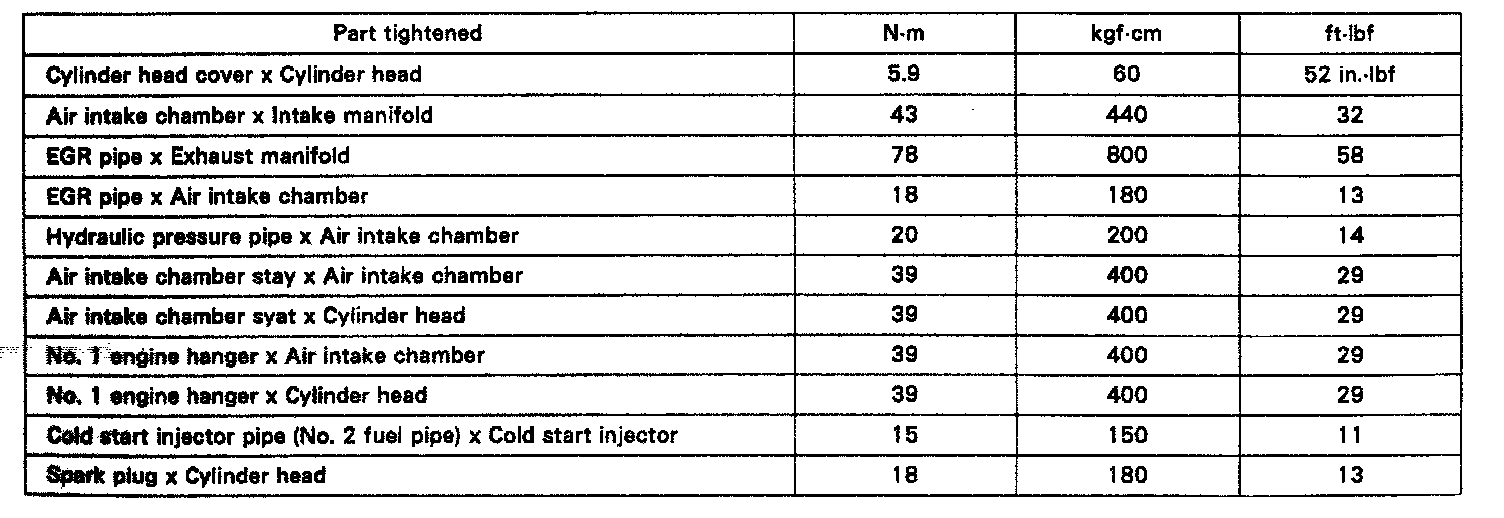

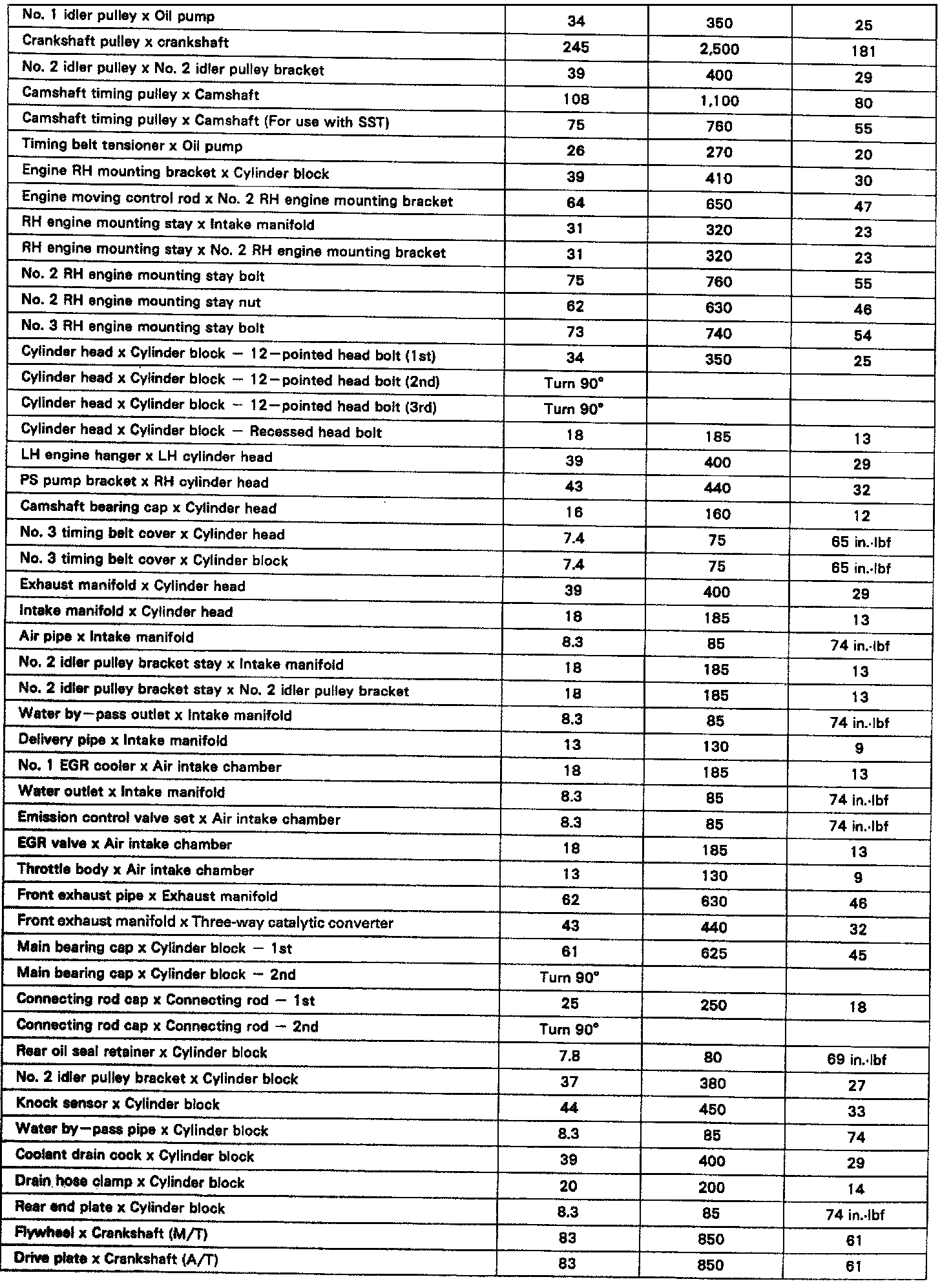

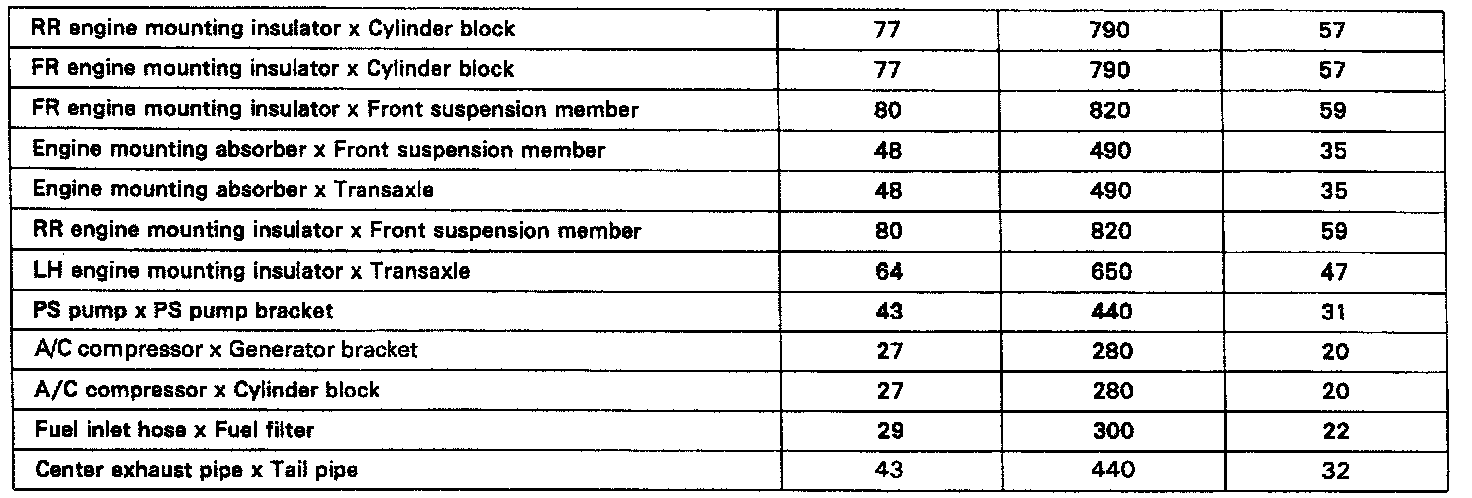

TIGHTENING SPECIFICATIONS

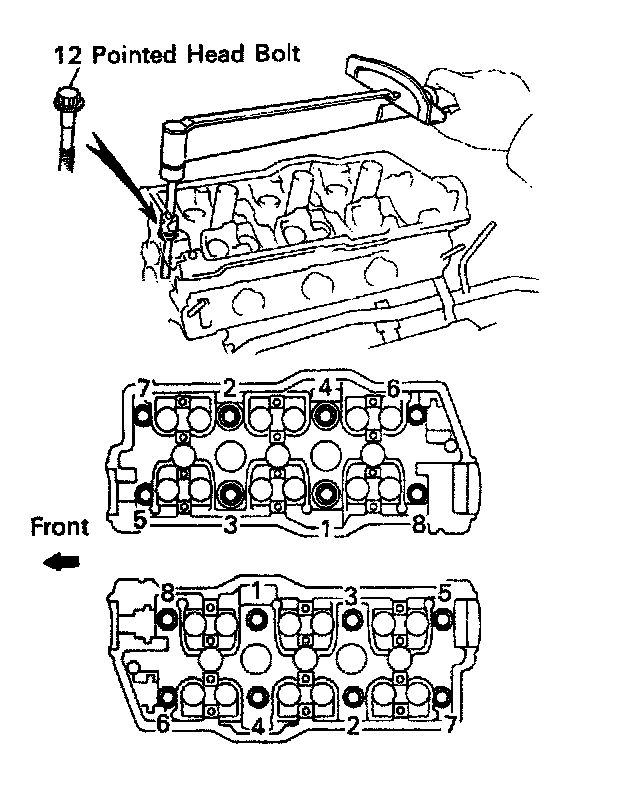

CYLINDER HEAD TIGHTENING SEQUENCE

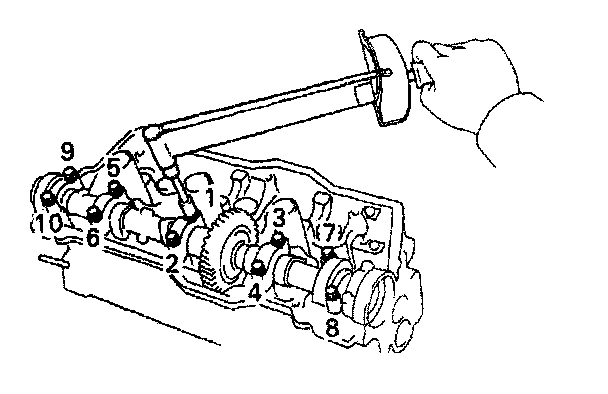

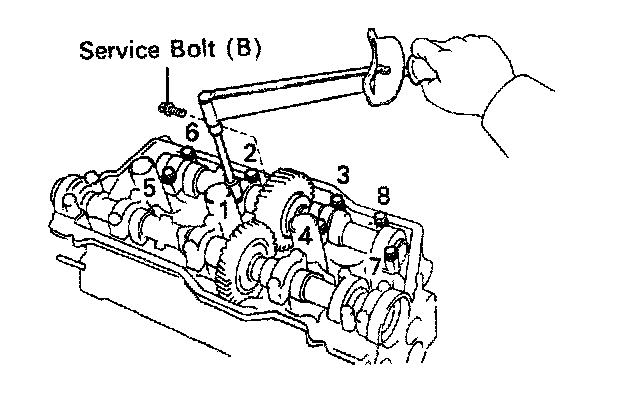

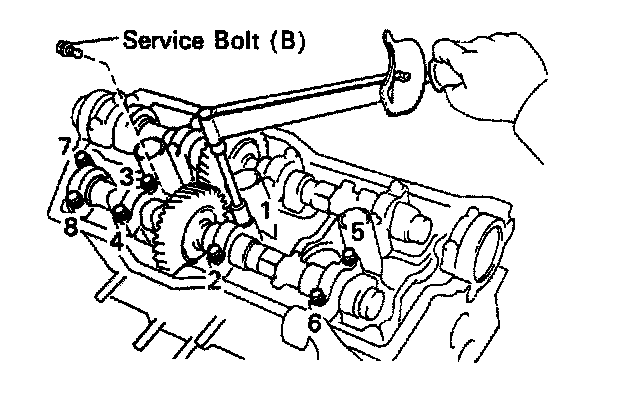

RH CAM TIGHTENING SEQUENCE

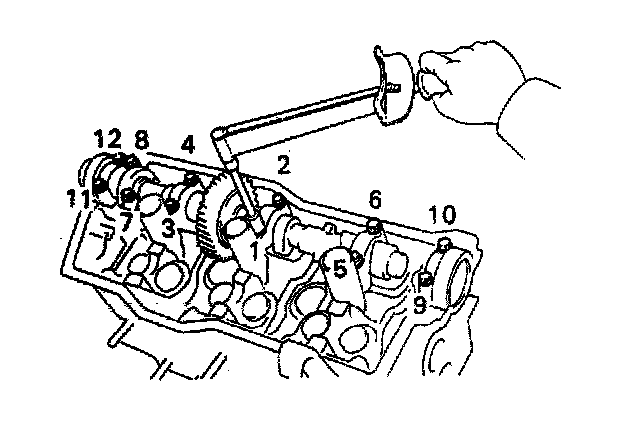

LH CAM TIGHTENING SEQUENCE

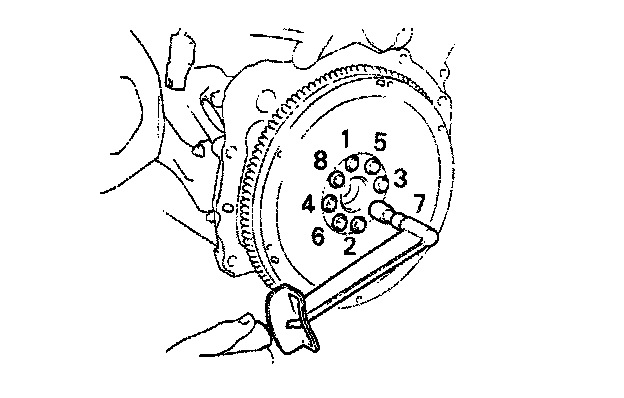

FLYWHEEL TIGHTENING SEQUENCE
