Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||
| Engine Compartment | On left front of engine compartment, behind headlight. | |

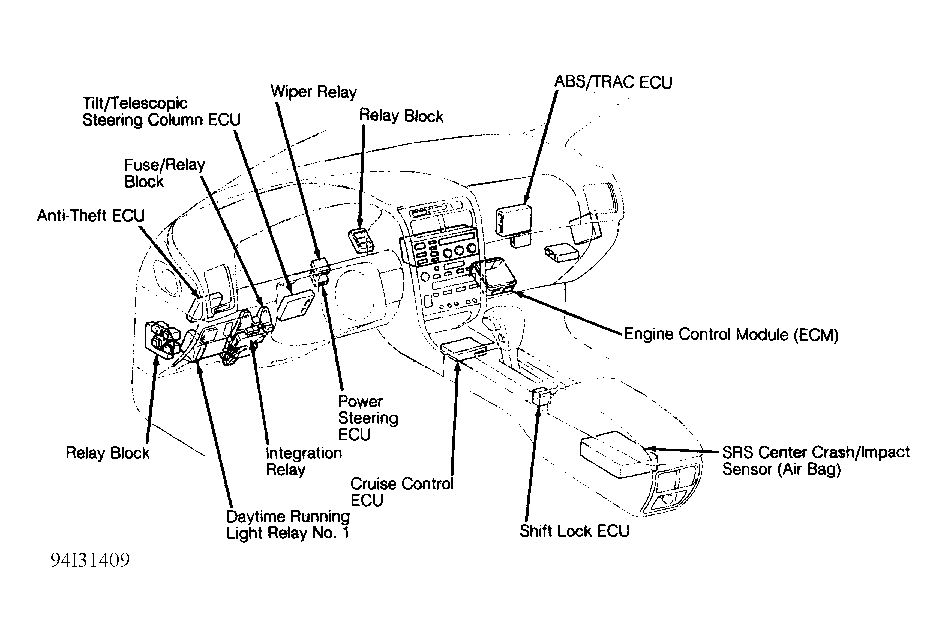

| Passenger Compartment | Behind left side of dash. See Figure. | |
| Fusible Link (Main) | On battery positive terminal. | |
| Relay Blocks | Behind left side and center of dash. See Figure. | |
