Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Electronic Control Unit (ECU) | ||

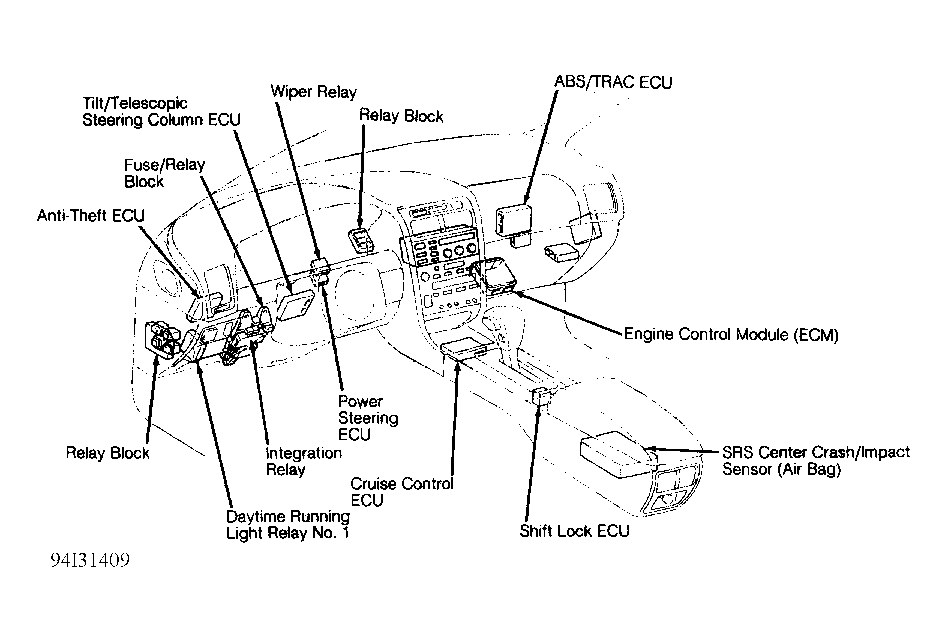

| ABS | Behind right side of dash, integral of TRAC ECU. See Figure. | |
| A/C System | Behind center of console, integral of A/C control assembly. | |
| Anti-Theft | Behind right side of dash. See Figure. | |
| Cruise Control | Under center of console. See Figure. | |

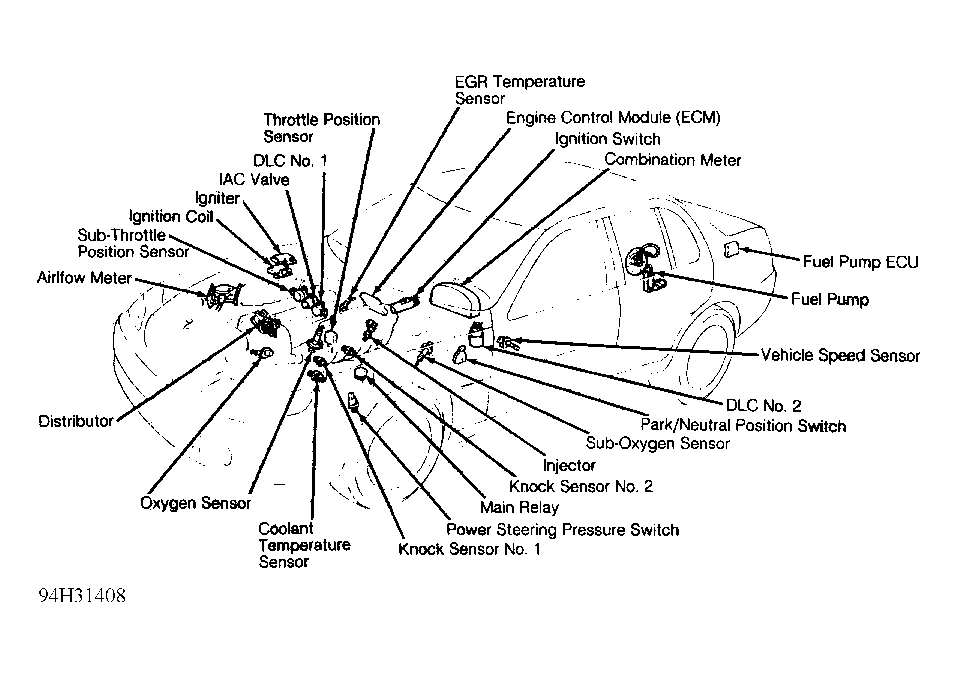

| Engine ECM | Behind right side of dash. See Figure & Figure . | |

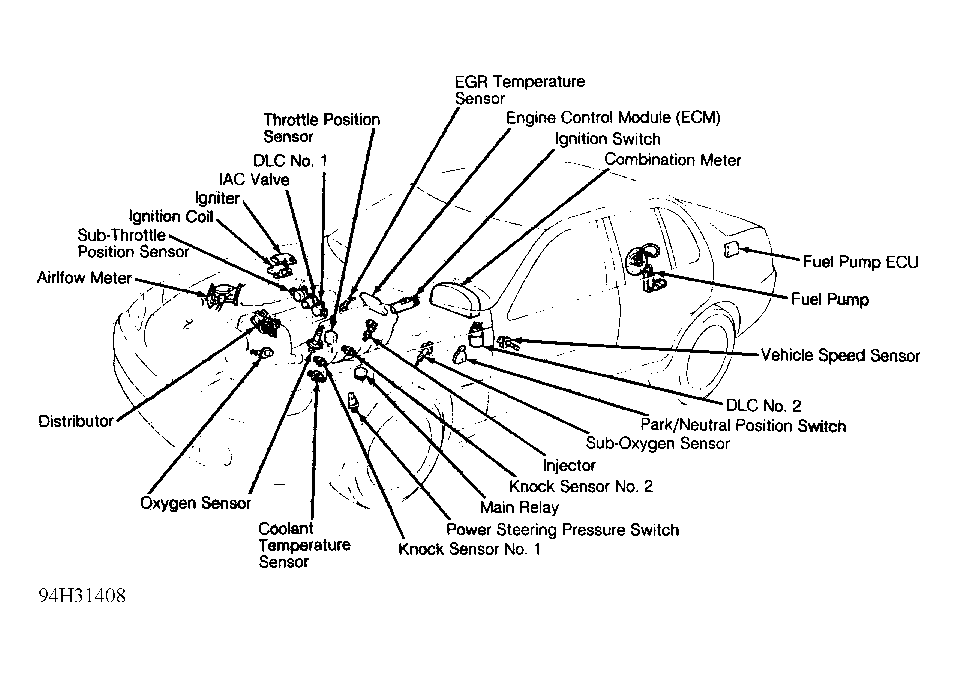

| Fuel Pump | On left side of luggage compartment, behind trim panel. See Figure. | |
| Power Door Lock | Behind left side of dash, near steering column. | |
| Power Seat | Under driver's seat. | |
| Power Steering | Behind left side of dash, above steering column. See Figure. | |
| Shift Lock | Under center console, behind gear selector. See Figure. | |
| Tilt/Telescopic Steering Column | Behind left side of dash, above steering column. See Figure. | |
| TRAC System | Behind right side of dash. | |
| Wireless Door Lock | On right side of luggage compartment. | |
