TT Terminal Circuit

CIRCUIT DESCRIPTION
Checks of Engine Control Module (ECM) input and output signals related to the throttle position sensor, brakes, shift position and other circuits can be performed by measuring the voltages at terminal TT of the DLC 1.

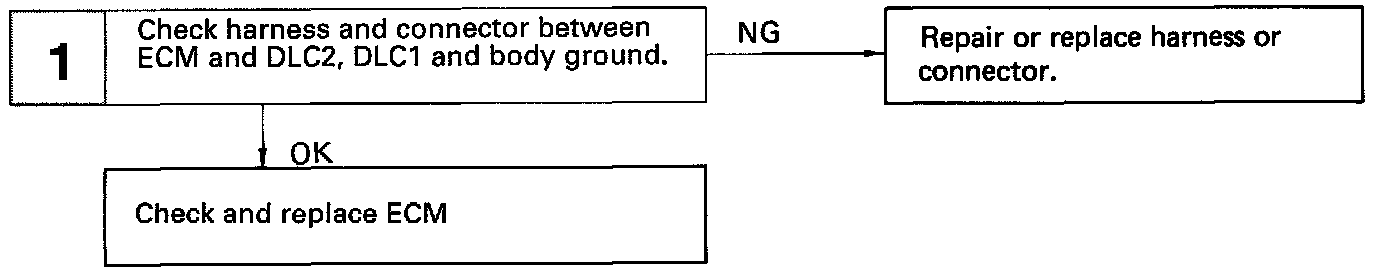

DIAGNOSTIC CHART

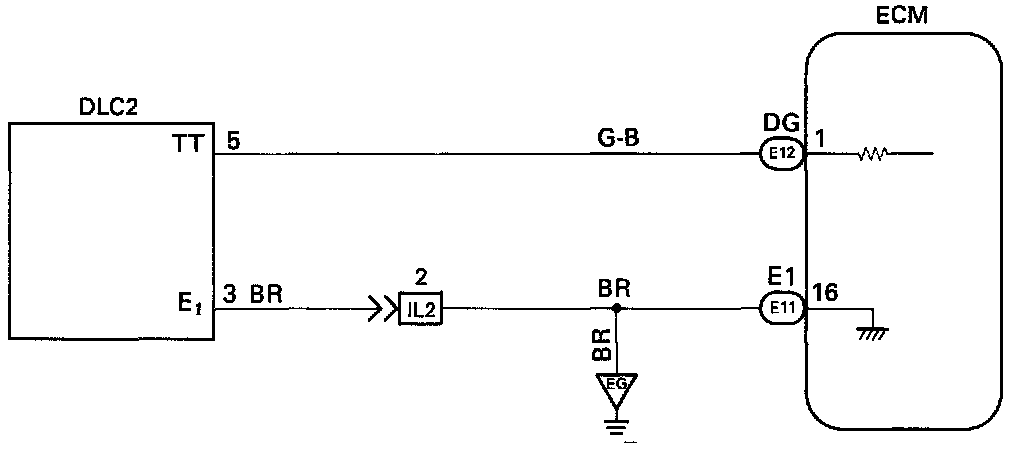

WIRING DIAGRAM
