Diagnostic Code Output
- Locate Total Diagnostic Communication Link (TDCL) under left side of instrument cluster. Turn ignition on. Using Tester (09843-18020), connect terminals Tc and E1 of TDCL. See Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

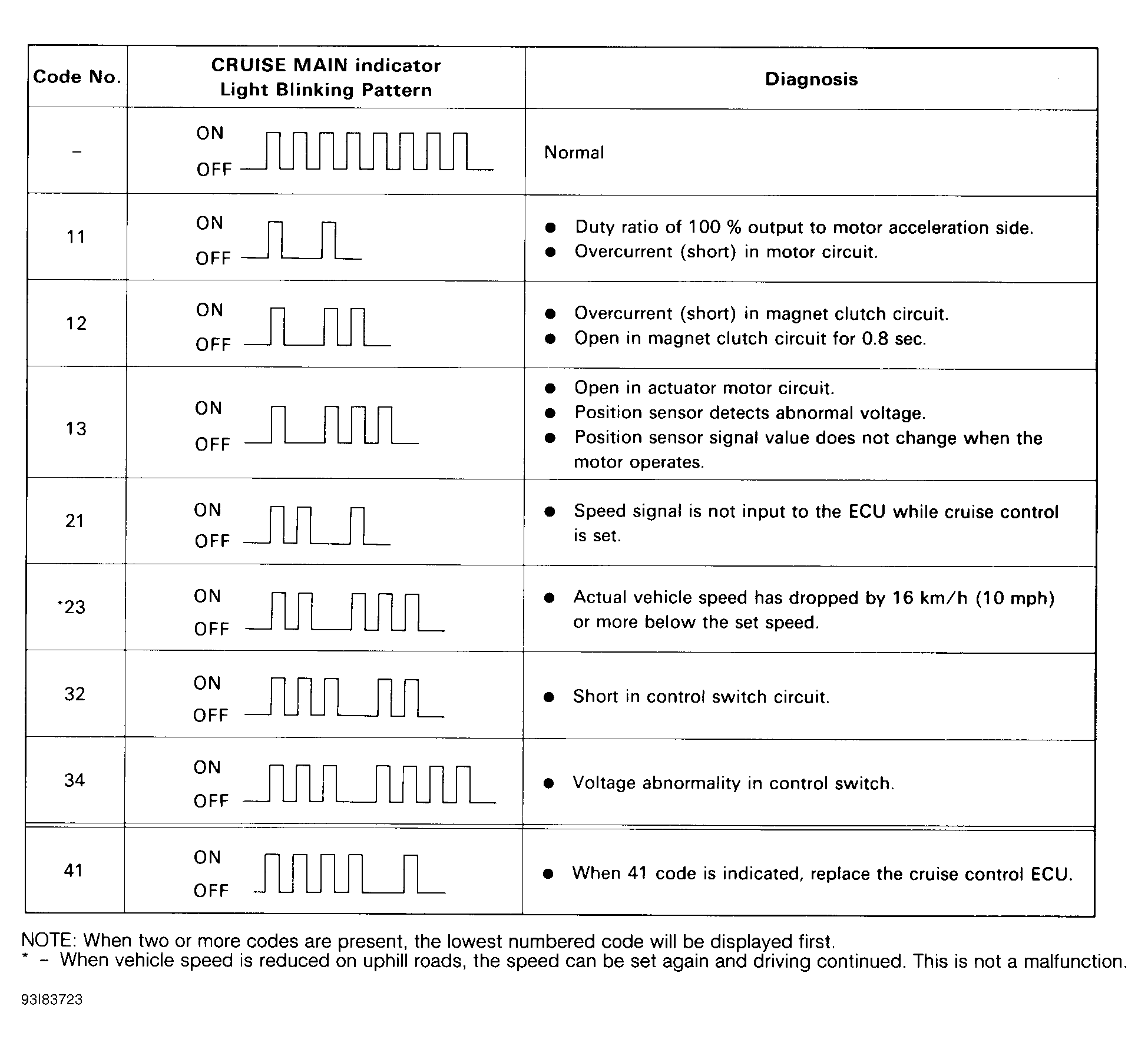

- Read diagnostic code on CRUISE MAIN indicator light. See Figure. If a diagnostic code is not displayed, inspect diagnostic circuit. See DIAGNOSTIC (TC) CIRCUIT under TESTING. If a diagnostic code is displayed, perform procedure indicated by the diagnostic codes chart. See TESTING.
- After completing diagnostic code check, disconnect terminals Tc and E1 and turn off the display. Clear diagnostic codes if necessary.
