Pressure Conversion Reference Chart (AC92-004)
Publication date: 1992-10-30Reference number: AC92-004
PRESSURE CONVERSION REFERENCE CHART
TECHNICAL SERVICE BULLETIN
Reference Number(s): AC92-004, Date of Issue:
October 30, 1992
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
PRESSURE CONVERSION REFERENCE CHART
Model 1993 Lexus LS400
Group Heating & Air Conditioning
Bulletin No. AC92-004
Date October 30, 1992
SERVICE INFORMATION

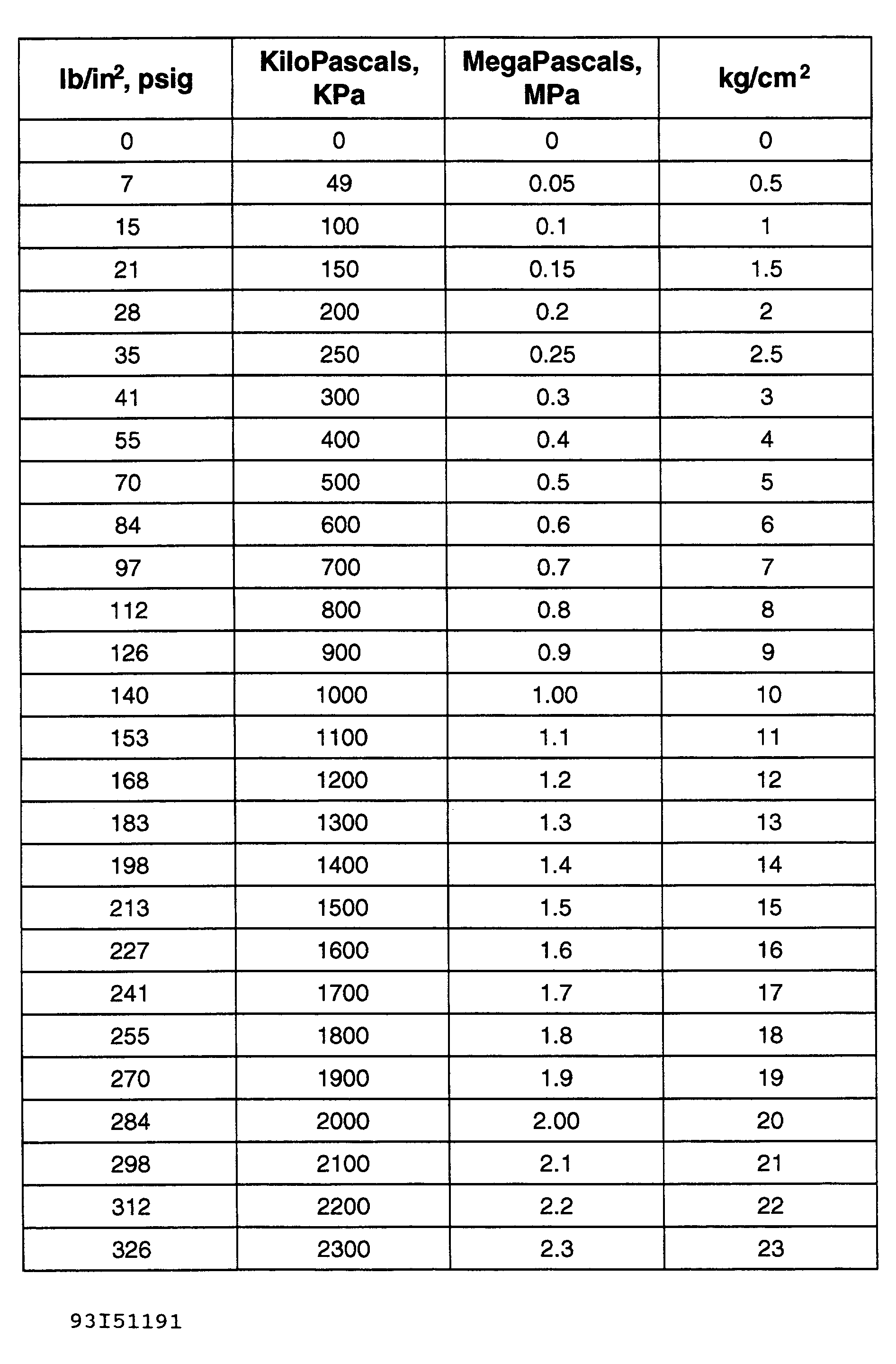

1993 LS 400 publications give air conditioning refrigerant pressure specifications exclusively in the metric units of Pascals and kg/cm2 . Since U.S. service equipment is typically marked in lb/in2 , refer to the chart (shown in Fig 1) for pressure conversion information.
