Code 51 - Switch Condition Signal (Es300)

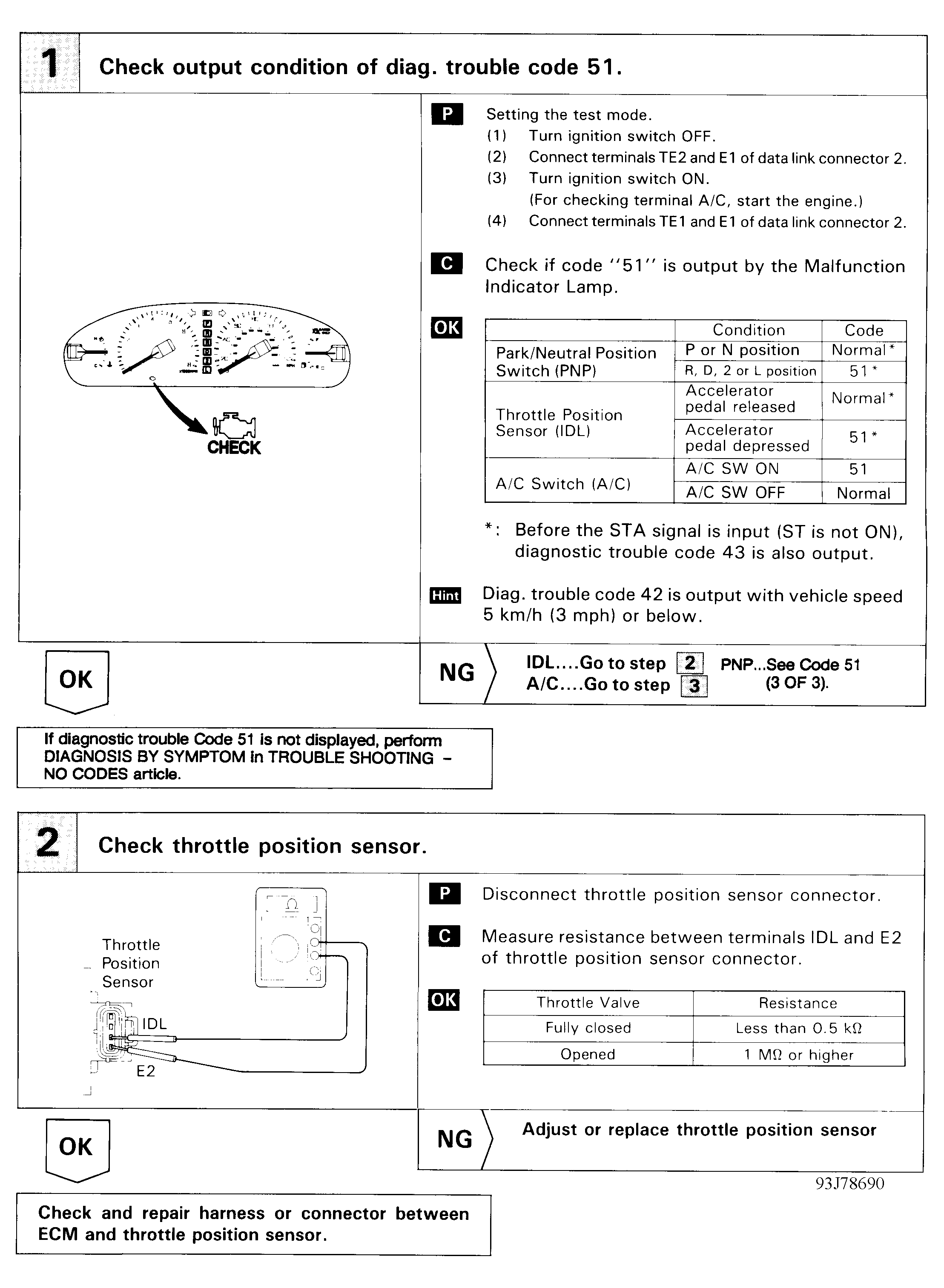

Fig 1: Code 51 - Diagnostic Flowchart (ES300, 1 Of 3)
G93J78690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

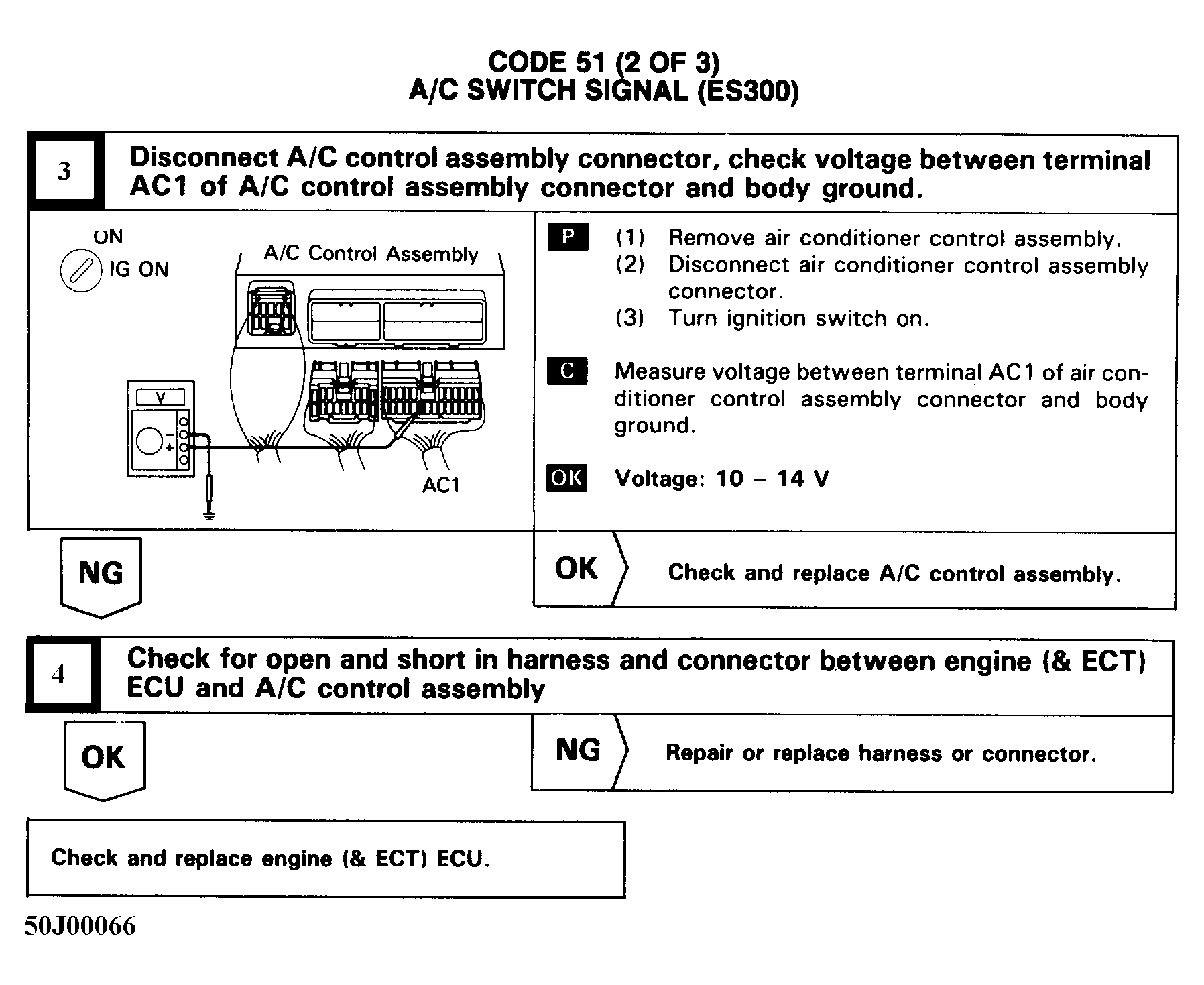

Fig 2: Code 51 - Diagnostic Flowchart (ES300, 2 Of 3)
G50J00066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 51 - Diagnostic Flowchart (ES300, 3 Of 3)
G93D78694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
