Code 51 - Switch Condition Signal (GS300 & SC300)

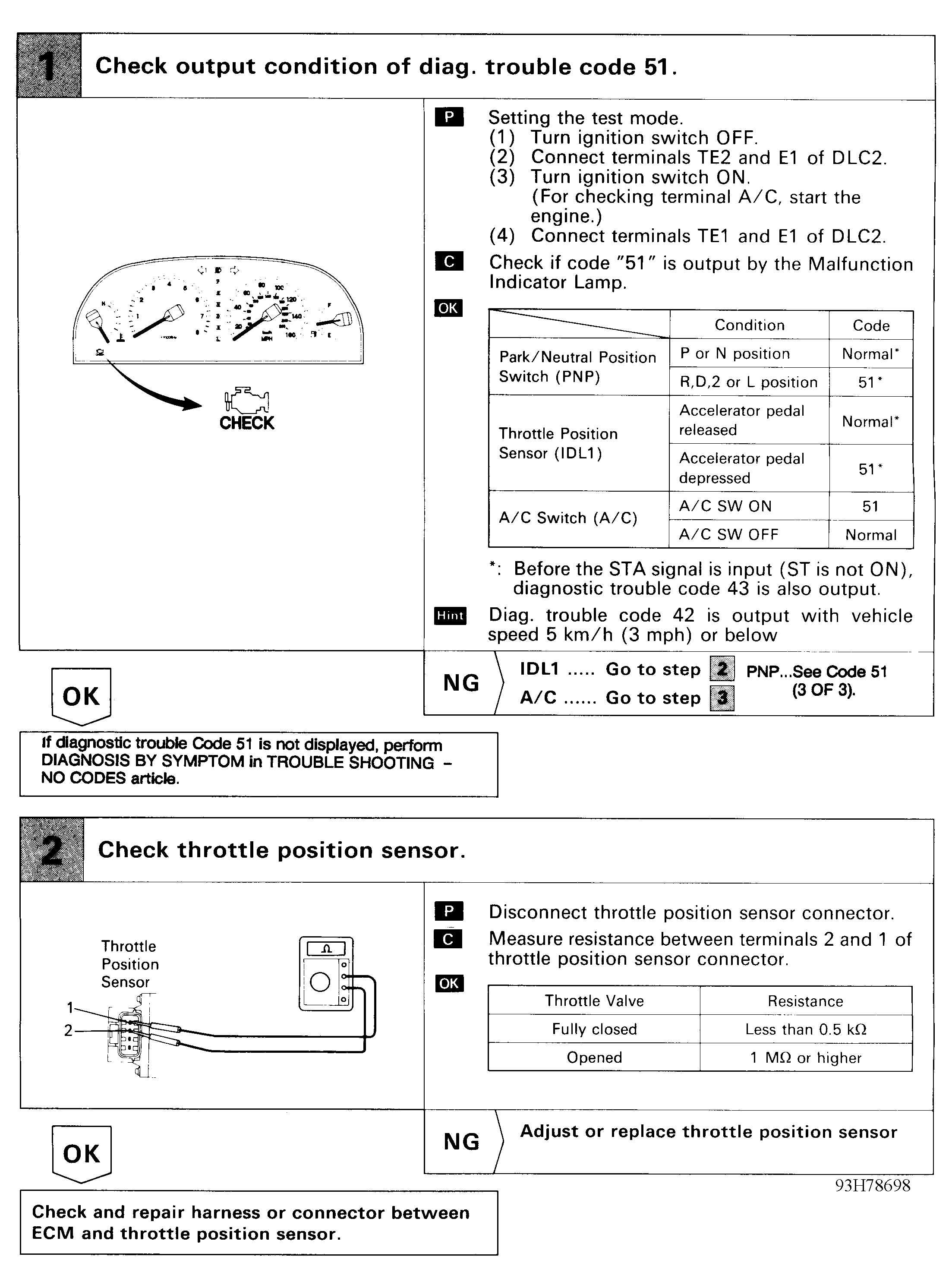

Fig 1: Code 51 - Diagnostic Flowchart (GS300 & SC300, 1 Of 3)
G93H78698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

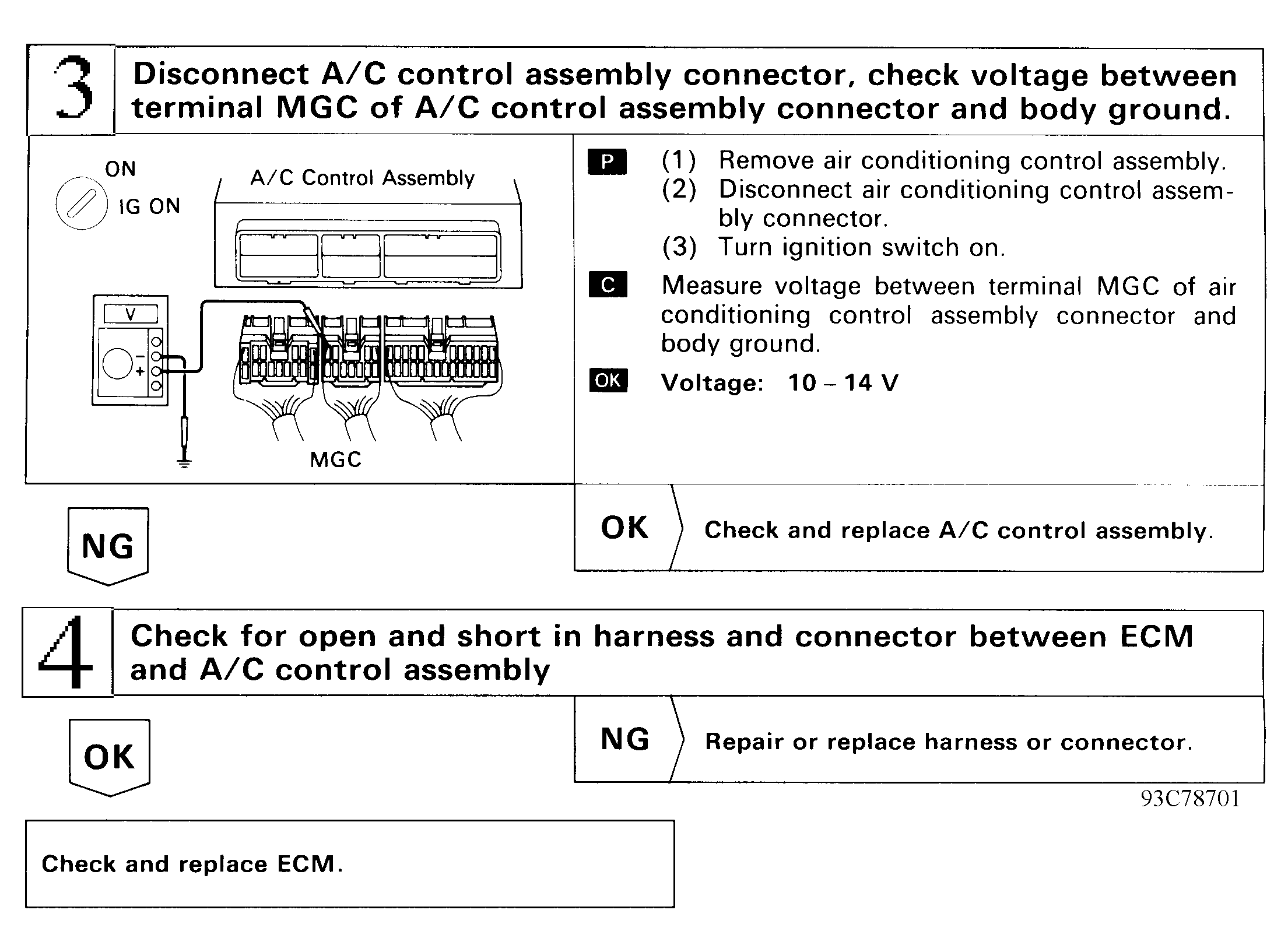

Fig 2: Code 51 - Diagnostic Flowchart (GS300 & SC300, 2 Of 3)
G93C78701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

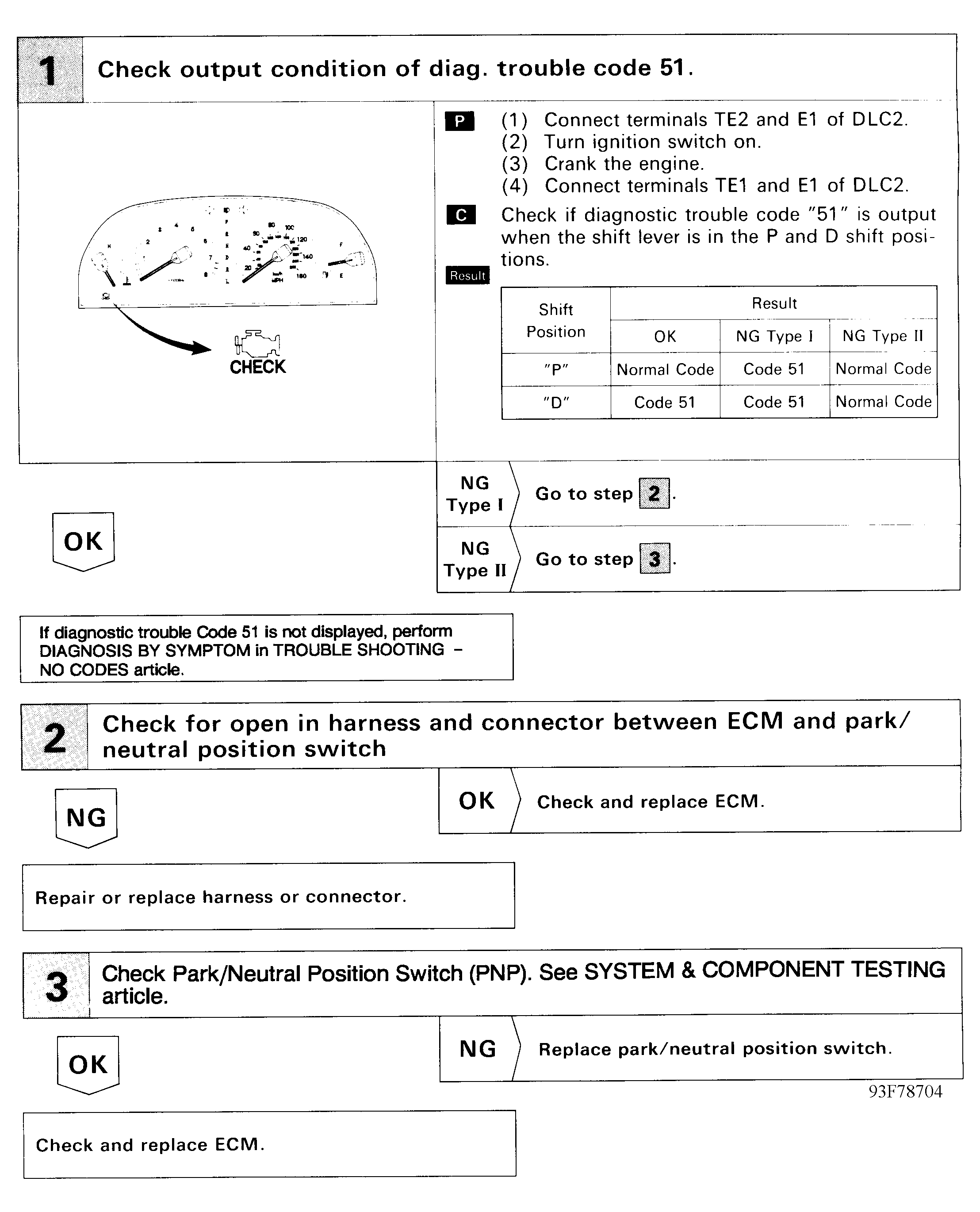

Fig 3: Code 51 - Diagnostic Flowchart (GS300 & SC300, 3 Of 3)
G93F78704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
