Codes 52, 53 & 55 - Knock Sensor Signal
Code 52 - Left Bank - ES300 Front Side - GS300 & SC300
Code 55 - Right Bank - ES300 Rear Side - GS300 & SC300

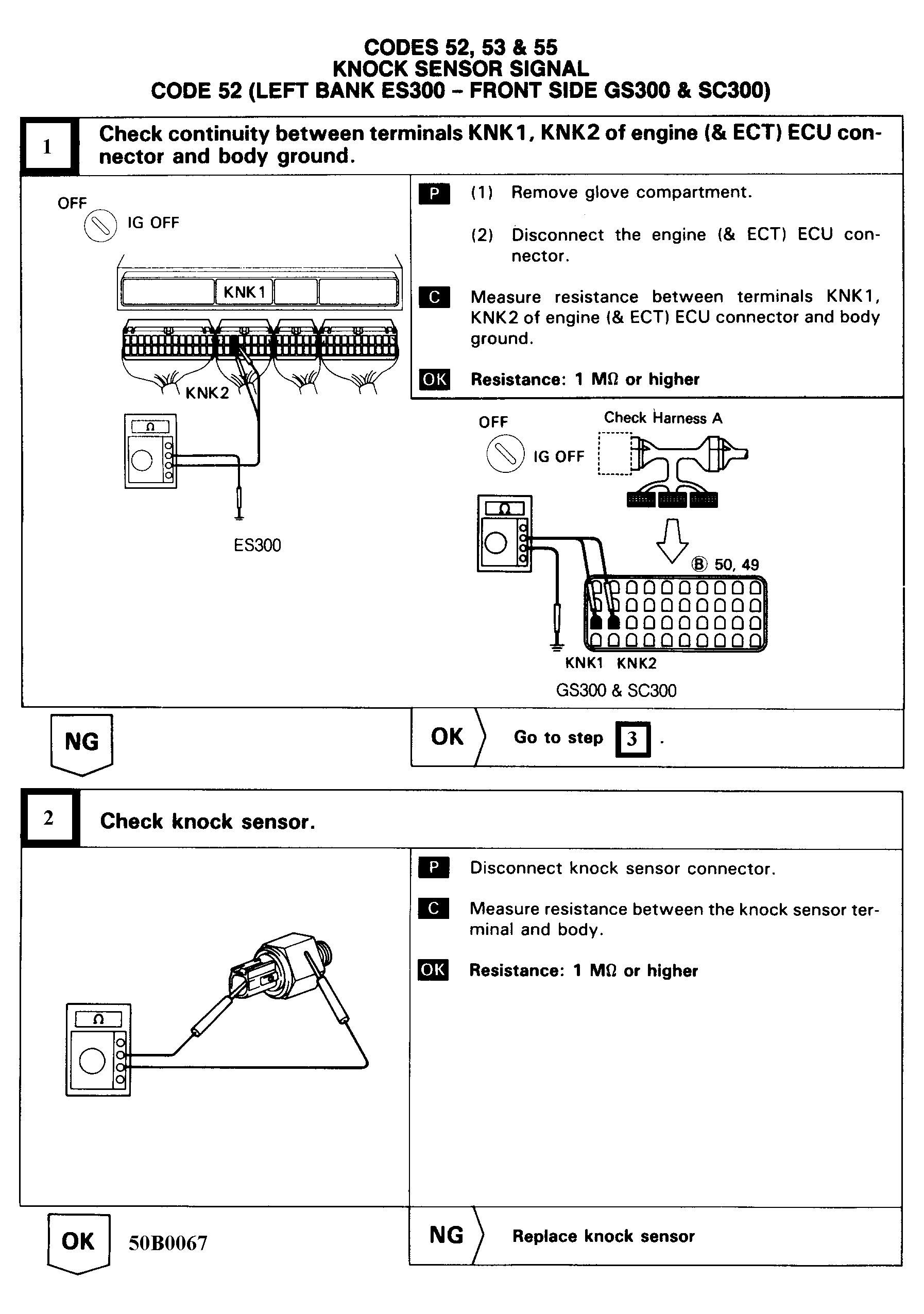

Fig 1: Codes 52, 53 & 55 - Diagnostic Flowchart (ES300, 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

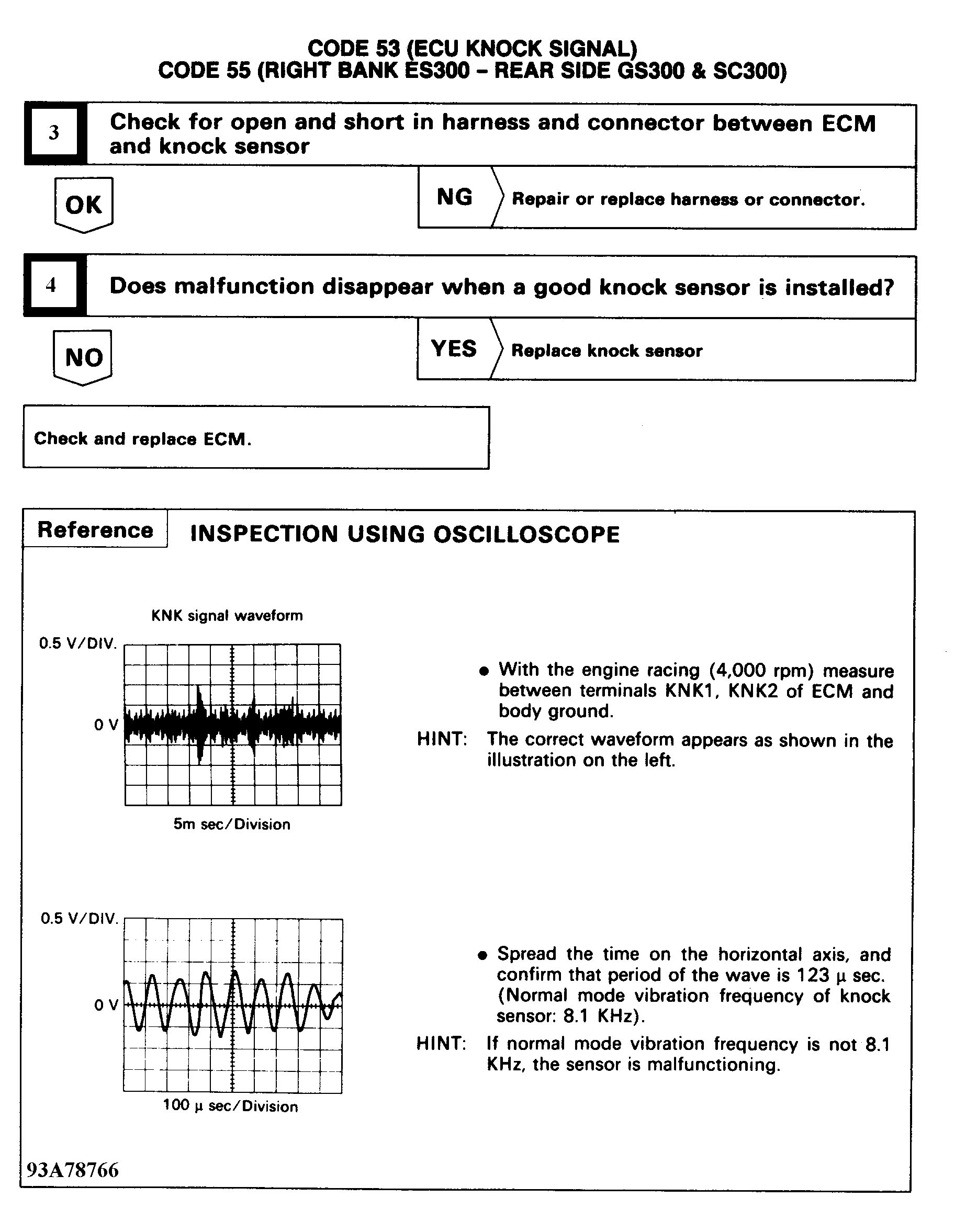

Fig 2: Codes 52, 53 & 55 - Diagnostic Flowchart (ES300, 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
