Clutch Start System
- Ensure pedal height, free play and push rod play are correct. Verify that engine does not start when clutch pedal is released. Ensure that engine starts when clutch pedal is fully depressed.

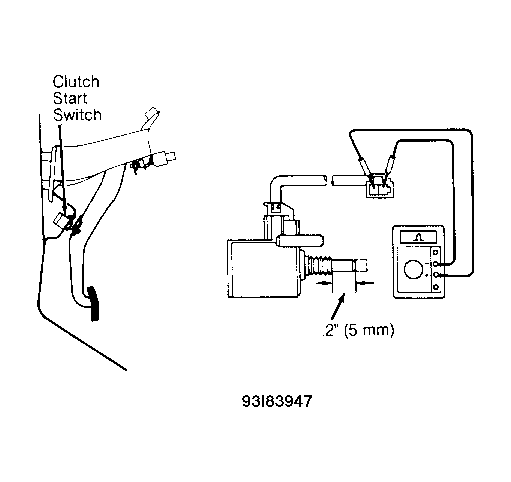

- If system is not operating correctly, ensure electrical continuity exists between terminals when switch is depressed. See Fig 1. Replace or adjust switch as necessary.
