Traction Control Module

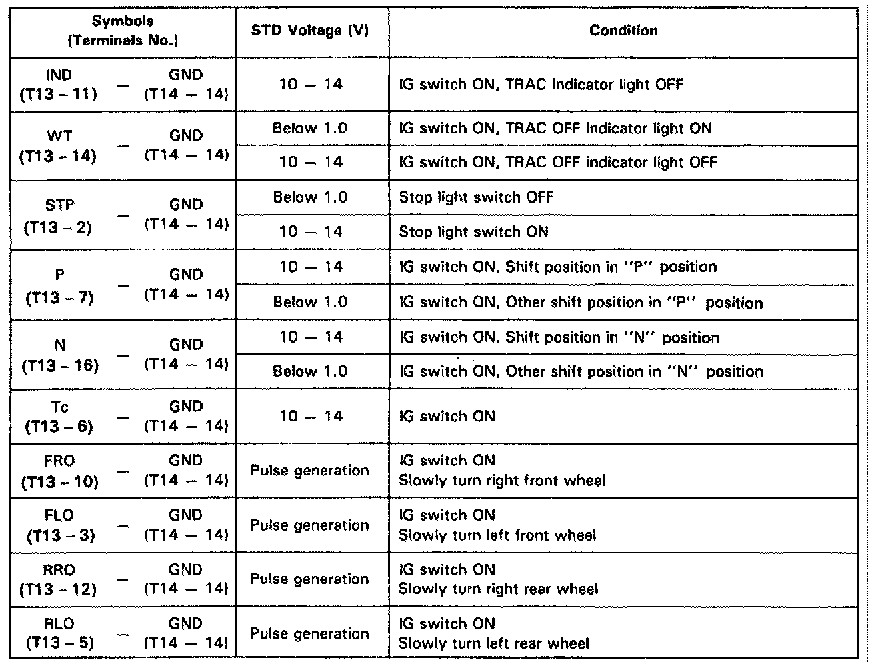

Fig. 47 TRAC ECU Terminal Values (Part 1 Of 2):

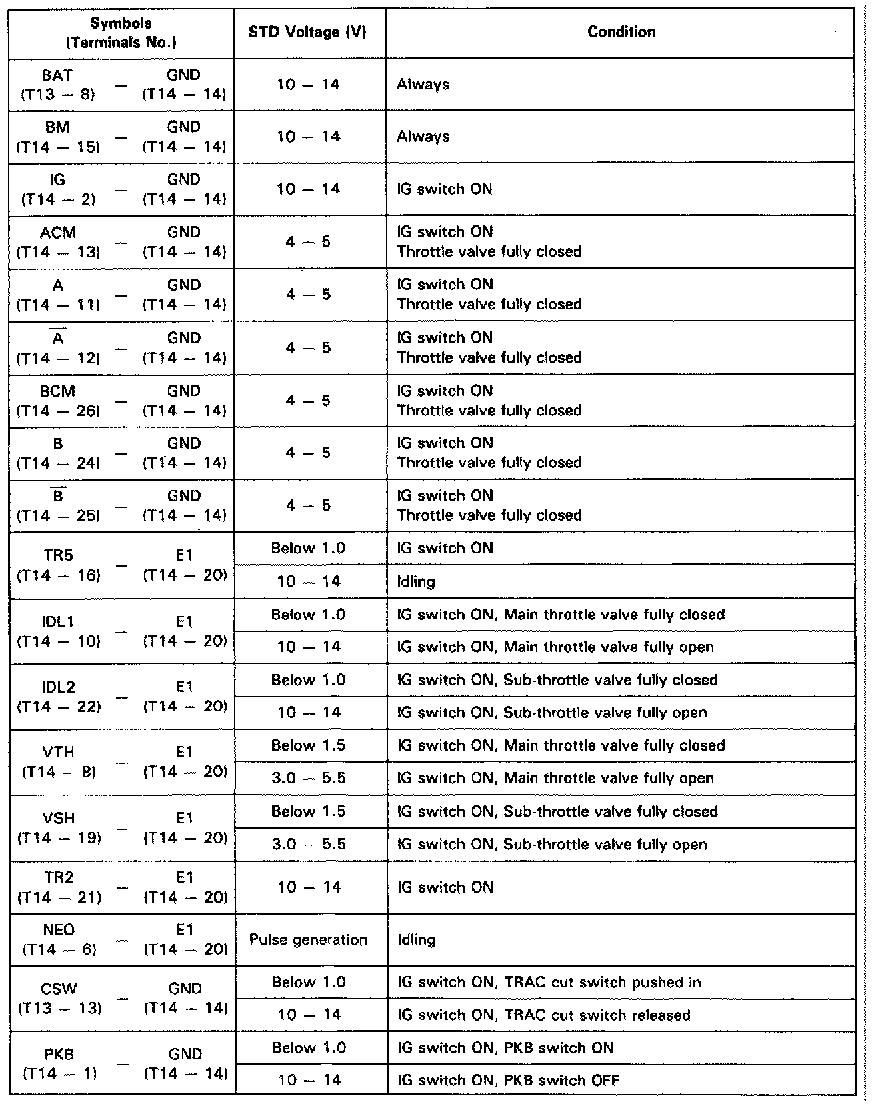

Fig. 47 TRAC ECU Terminal Values (Part 2 Of 2):
