Code 27 - Sub-Oxygen Sensor Circuit (GS300 & SC300 Ca)

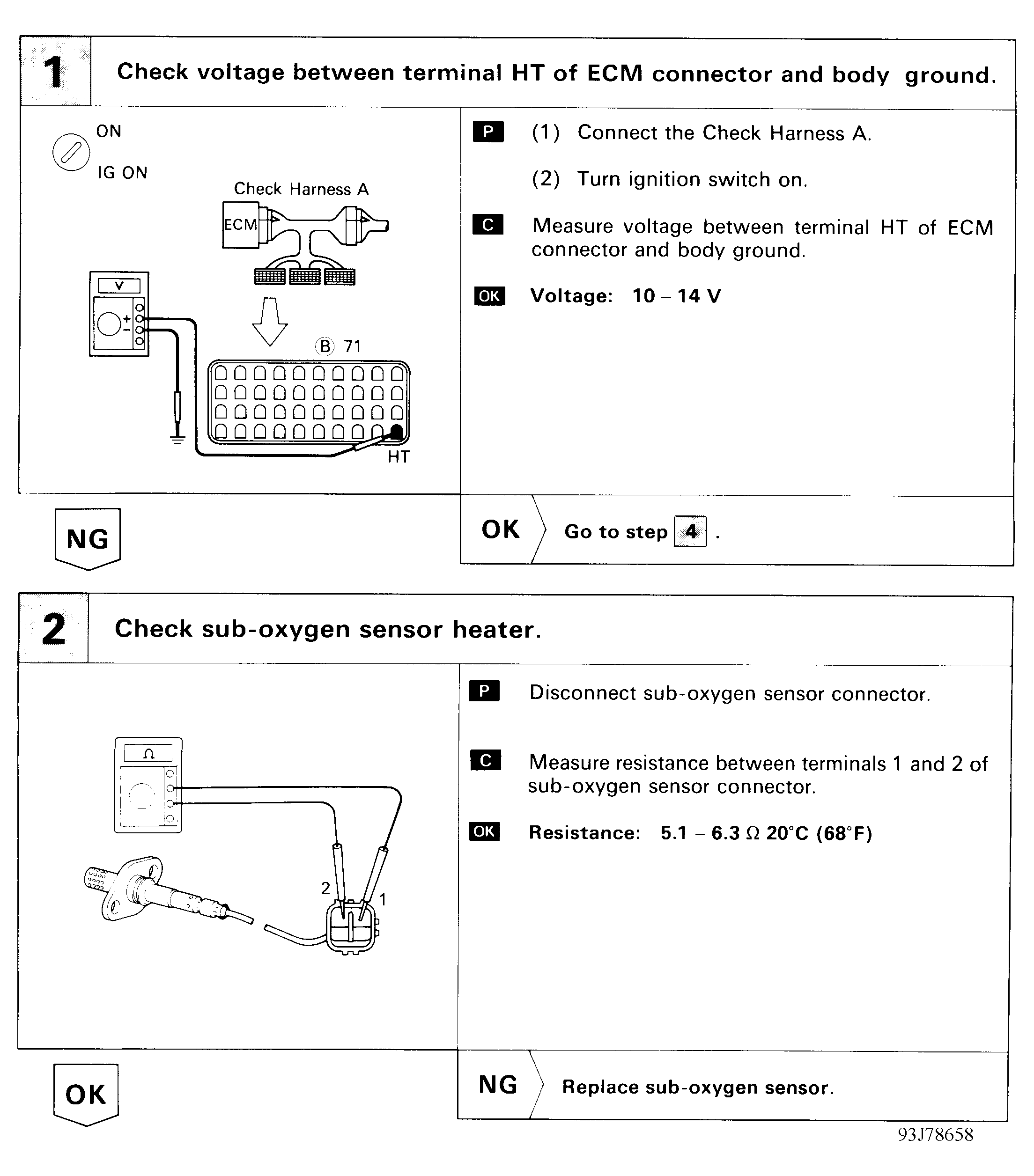

Fig 1: Code 27 - Diagnostic Flowchart (1 Of 2)
G93J78658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

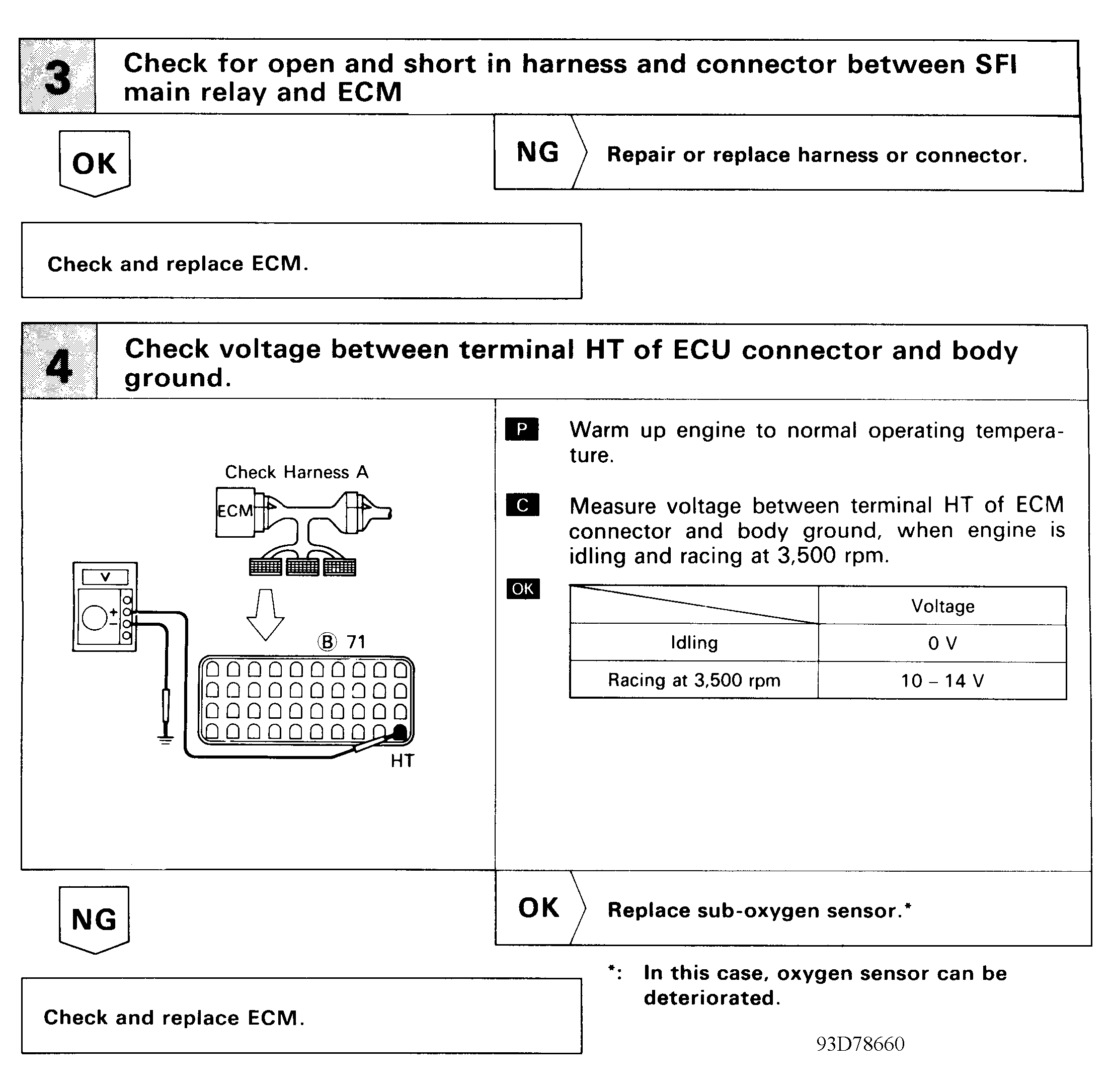

Fig 2: Code 27 - Diagnostic Flowchart (2 Of 2)
G93D78660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
