Power Mirror Control Module: Testing and Inspection

MIRROR ECU INSPECTION








1. INSPECT MIRROR ECU CIRCUIT

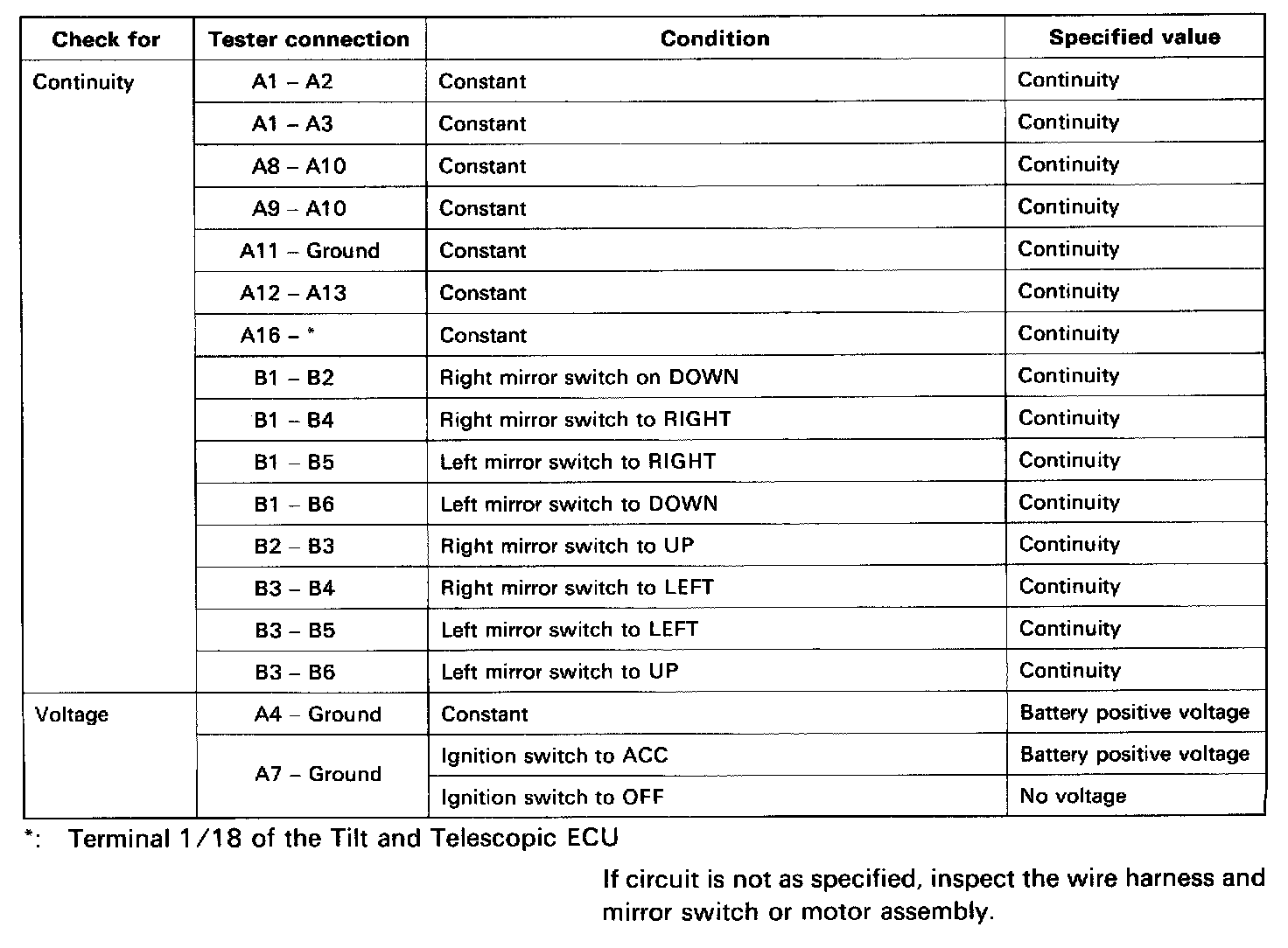

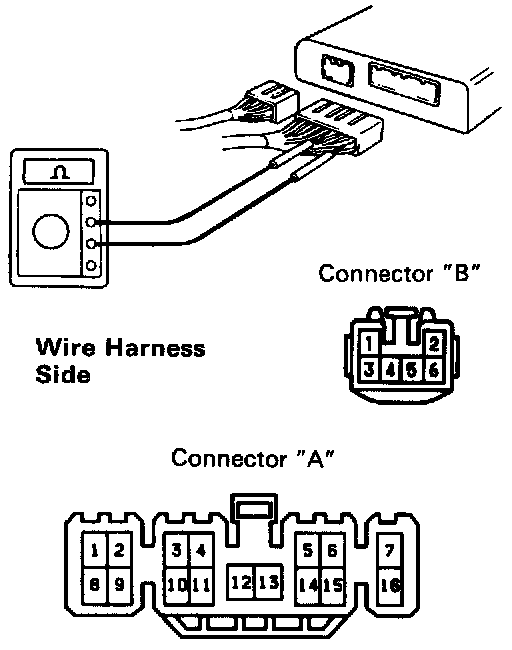

Disconnect the connectors from the ECU and inspect the connector on the wire harness side as shown in the chart above.








2. INSPECT MIRROR ECU OPERATION

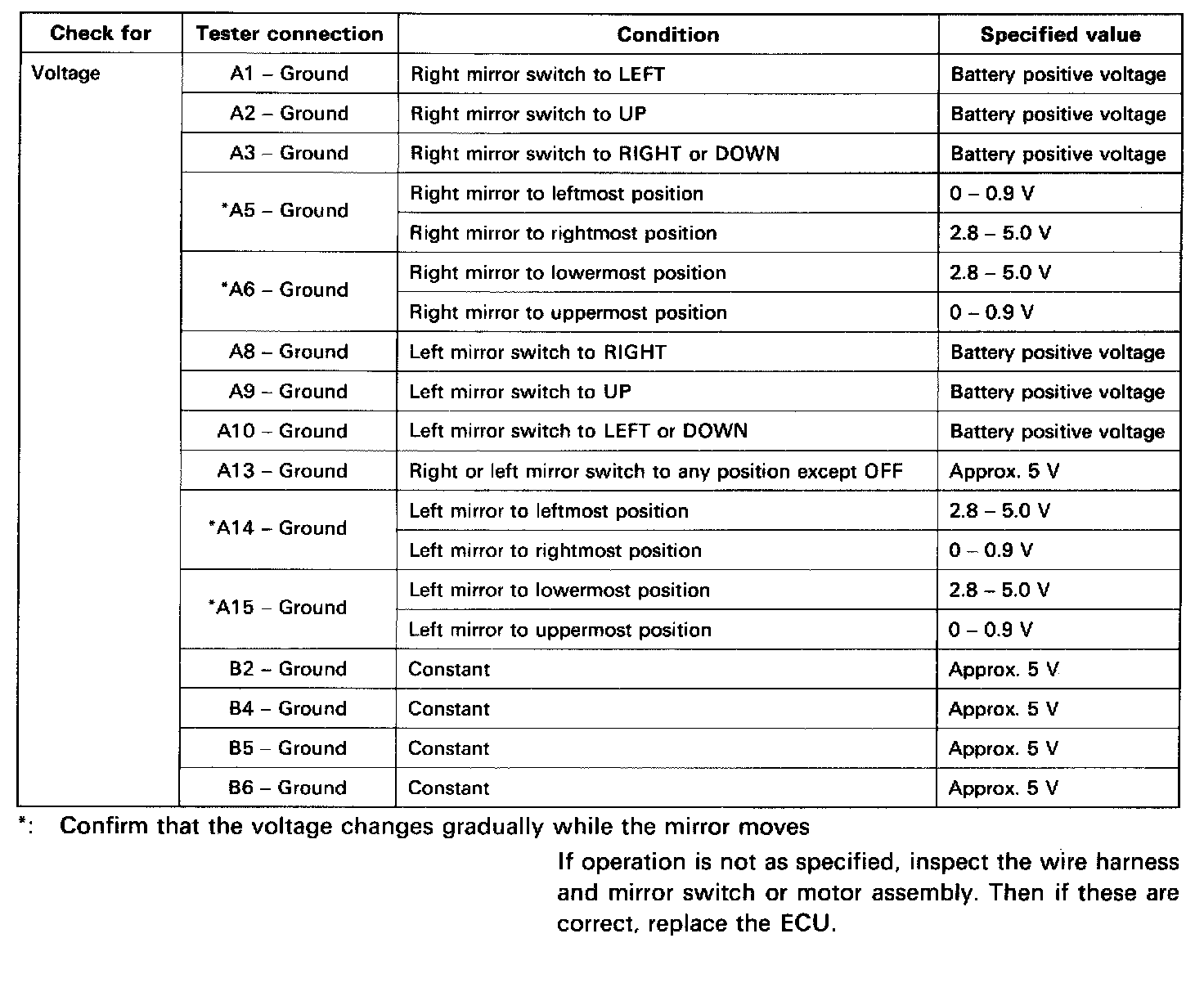

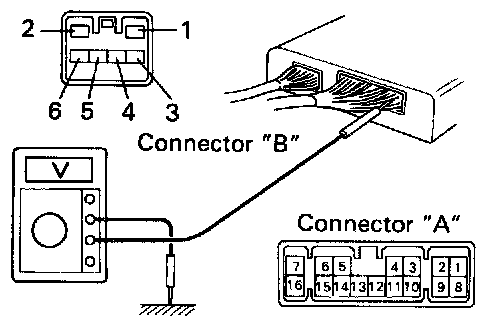

Connect the connectors and using a voltmeter with high impedance (10 kohms/V minimum), measure the voltage at each terminal and body ground.
