Ignition Control Module: Locations

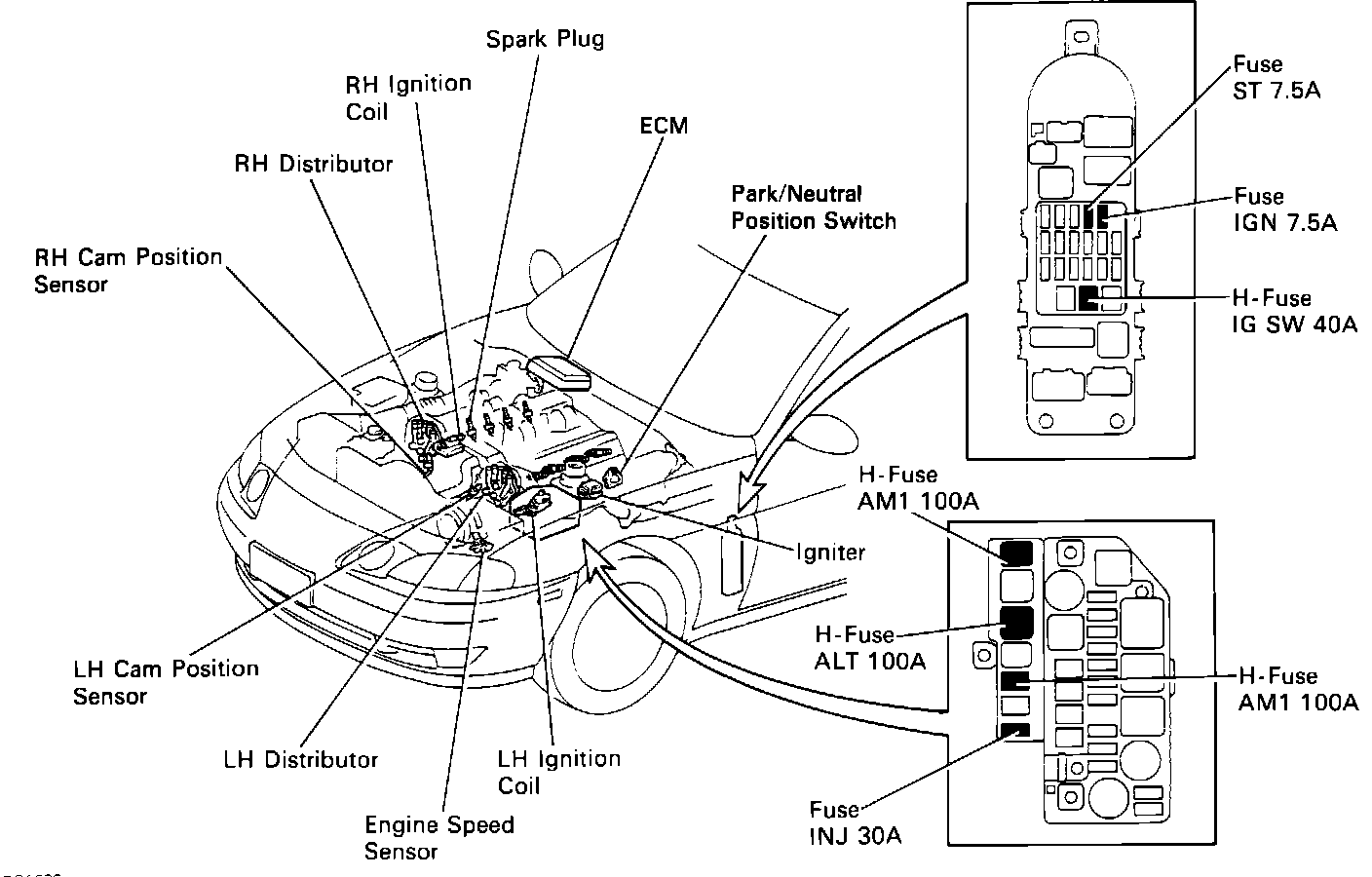

Ignition System Components:

DISTRIBUTORS
Mounted to front of each camshaft sprocket, under timing cover.

ECM
Under the right side of dash.

IGNITION RELAY
Located in relay box, in the left front corner of the engine compartment.

IGNITERS
Mounted to the left strut tower.

IGNITION COIL - EVEN CYLS
Mounted near right side distributor.

IGNITION COIL - ODD CYLS
Mounted to left cylinder head, near distributor.

IGNITION FUSES
Located in junction box under left side of dash.
