Rear Light Failure Warning System Tests: Notes

NOTE: In following tests, see appropriate chassis WIRING DIAGRAMS article in WIRING DIAGRAMS section where required.

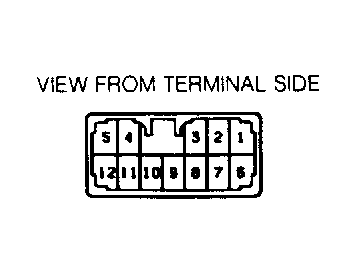

Fig 1: Rear Light Failure Sensor Connector ID
G92H01201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
