Cooling Fan ECM (ES300 & SC400)
- Disconnect negative battery cable. Turn ignition off and wait 20 seconds. Remove cover under instrument panel. Remove lower instrument panel cover and glove box door assembly. Disconnect cooling fan ECM.

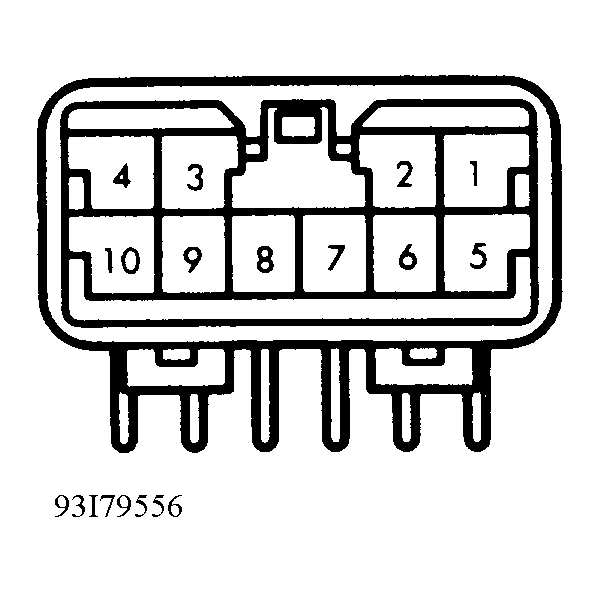

- Reconnect negative battery cable. Using a DVOM, measure resistance and voltage as indicated in COOLING FAN ECM SPECIFICATIONS table. Make all measurements from harness side of connector. See Fig 1. Repair harness as necessary.
COOLING FAN ECM SPECIFICATIONS
| Terminals |
Condition |
Value |
| ES300 |
| 1 & Ground |
Ignition On |
Battery Voltage |
| 2 & 3 |
77°F (25°C) |
Approx. 7.8 Ohms |
| 4 & Ground |
(2) |
Continuity |
| 5 & Ground |
Throttle Valve Open |
No Continuity |
| 5 & Ground |
Throttle Valve Closed |
Continuity |
| 8 & Ground |
A/C Press. Sw. Disc. |
No Continuity |
| 8 & Ground |
A/C Press. Sw. Conn. |
Continuity |
| 9 & 10 |
176°F (80°C) |
Approx. 1.52 Ohms |
| SC400 |
| 1 & Ground |
Ignition On |
Battery Voltage |
| 2 & 3 |
68°F (20°C) |
Approx. 8 Ohms |
| 4 & Ground |
(2) |
Continuity |
| 5 & Ground |
Throttle Open |
No Continuity |
| 5 & Ground |
Throttle Closed |
Continuity |
| 9 & 10 |
176°F (80°C) |
1.48-1.58 k/Ohms |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
