Neutral Start Switch

If vehicle starts in positions other than Neutral and Park, adjust neutral start switch. Loosen neutral start switch bolt and set shift lever to "N" position. Align groove and neutral base line on neutral start switch. See Fig 1. Hold switch in position and tighten bolt to 115 INCH lbs. (13 N.m).

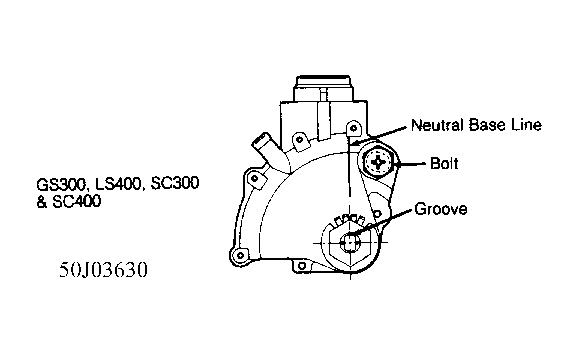

Fig 1: Adjusting Neutral Start Switch
G50J03630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
