Camber

MEASURE VEHICLE HEIGHT

NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.

INSTALL CAMBER-CASTER-KINGPIN GAUGE OR ONTO WHEEL ALIGNMENT TESTER

Follow the specific instructions of the equipment manufacturer.

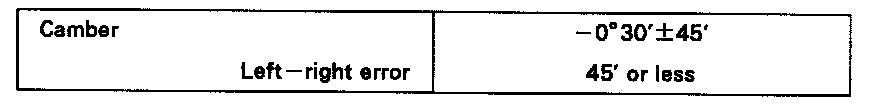

INSPECT CAMBER





HINT: Camber is not adjustable, if the measurements are not within the specification, inspect the suspension parts for damaged and/or worn out parts and replace them as necessary.
