Instrument Panel Control Module: Testing and Inspection

RHEOSTAT LIGHT CONTROL INSPECTION
INSPECT RHEOSTAT LIGHT CONTROL CIRCUIT

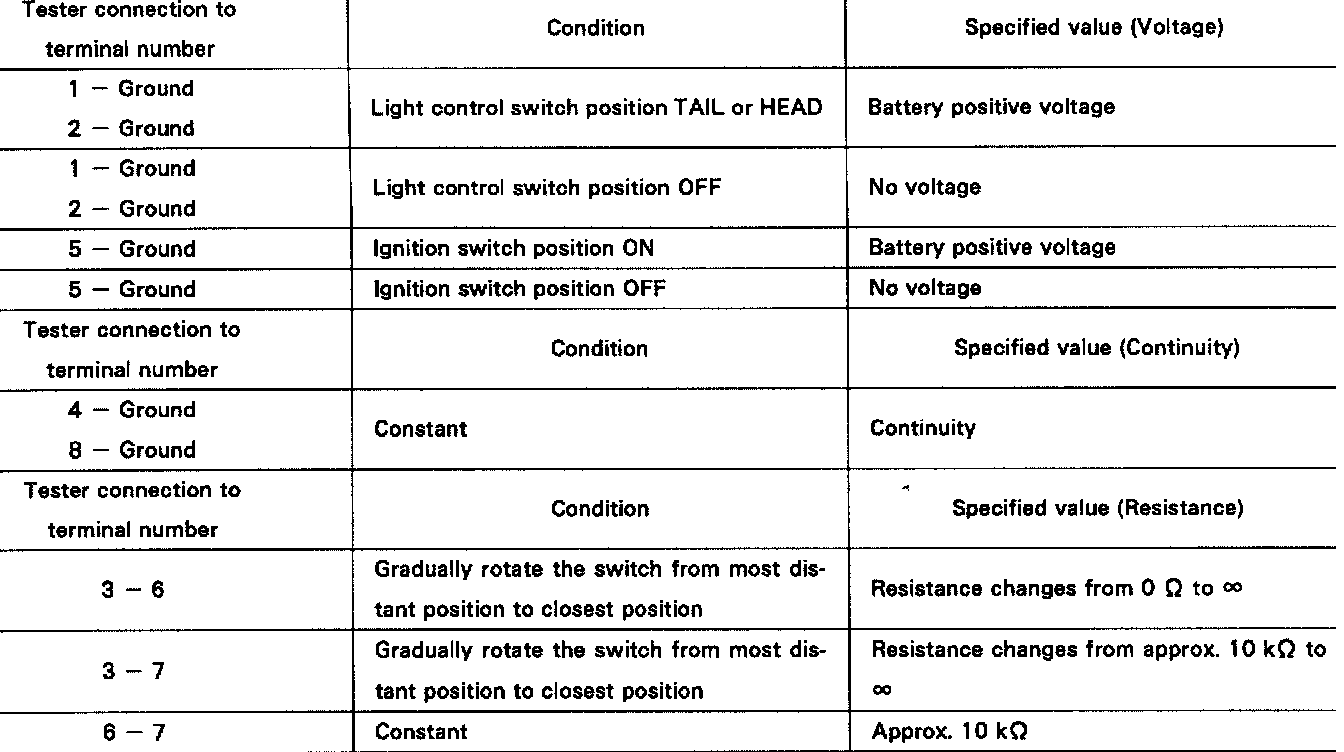

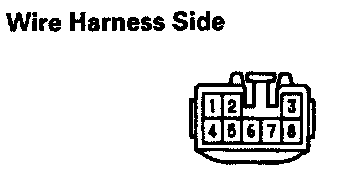

Disconnect the connector to rheostat light control and inspect connector on wire harness side, as shown.






If circuit is as specified, replace the rheostat light control.
If the circuit is not as specified, refer to Electrical Diagramsand inspect the circuits connected to other parts.
