System Specifications

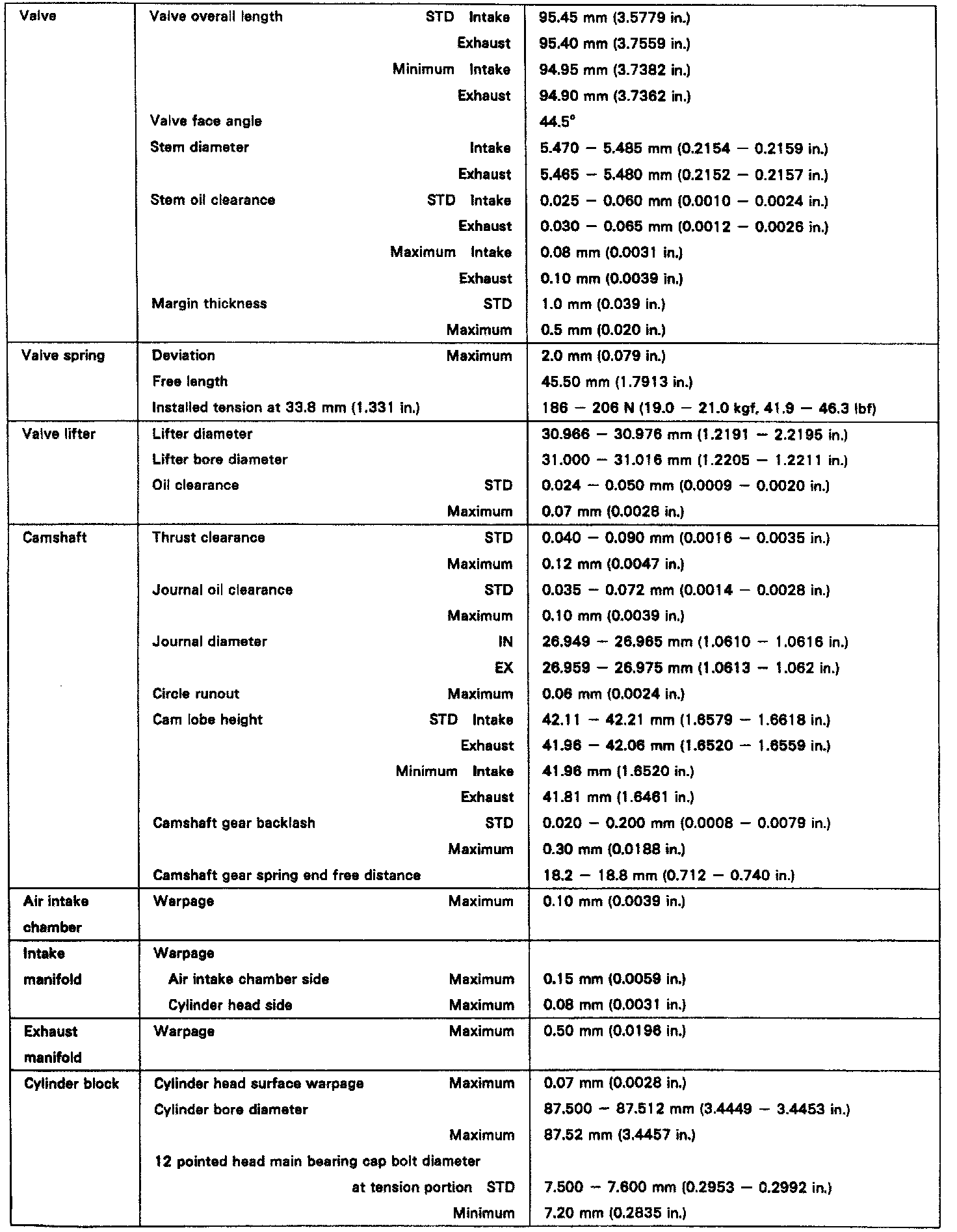

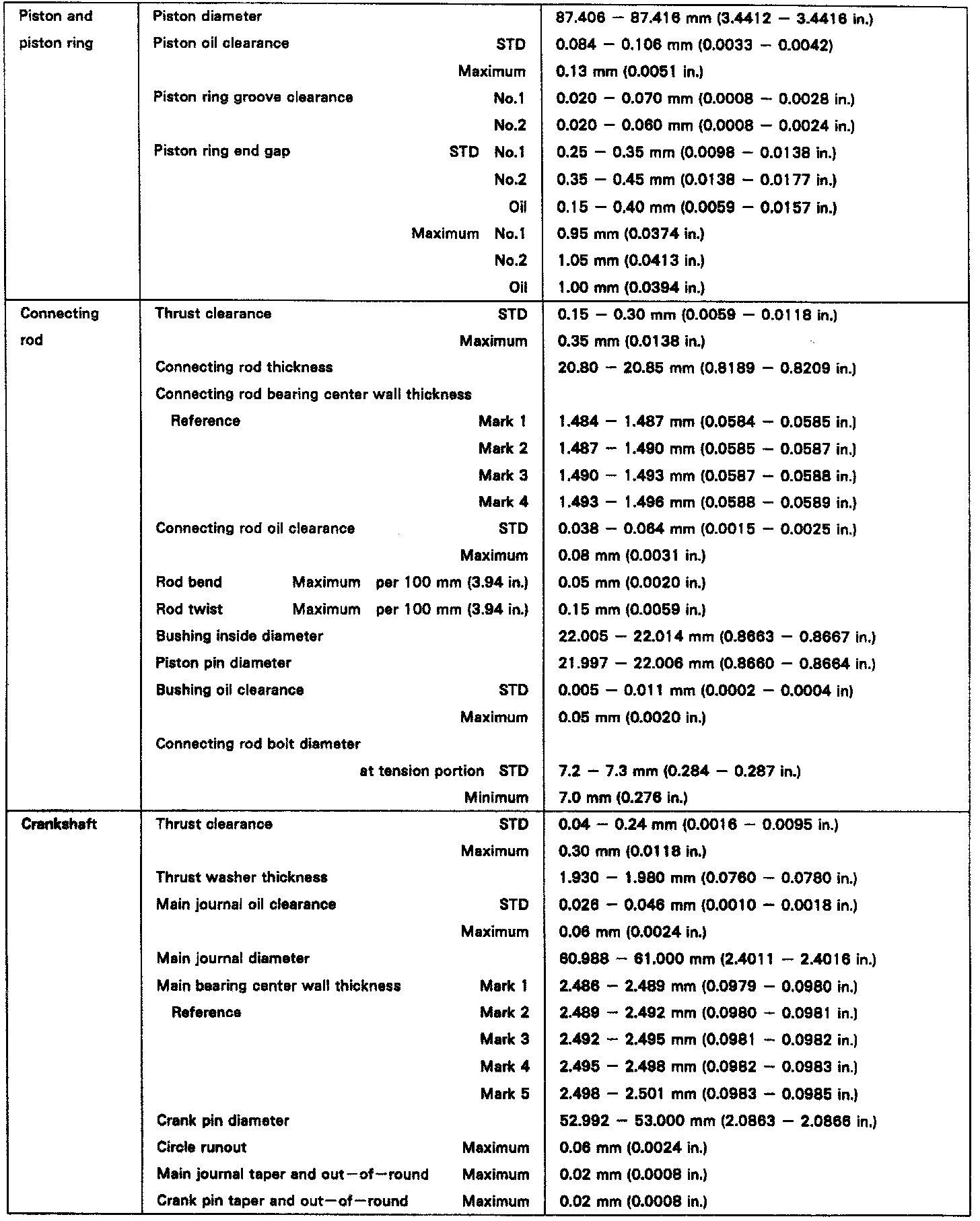

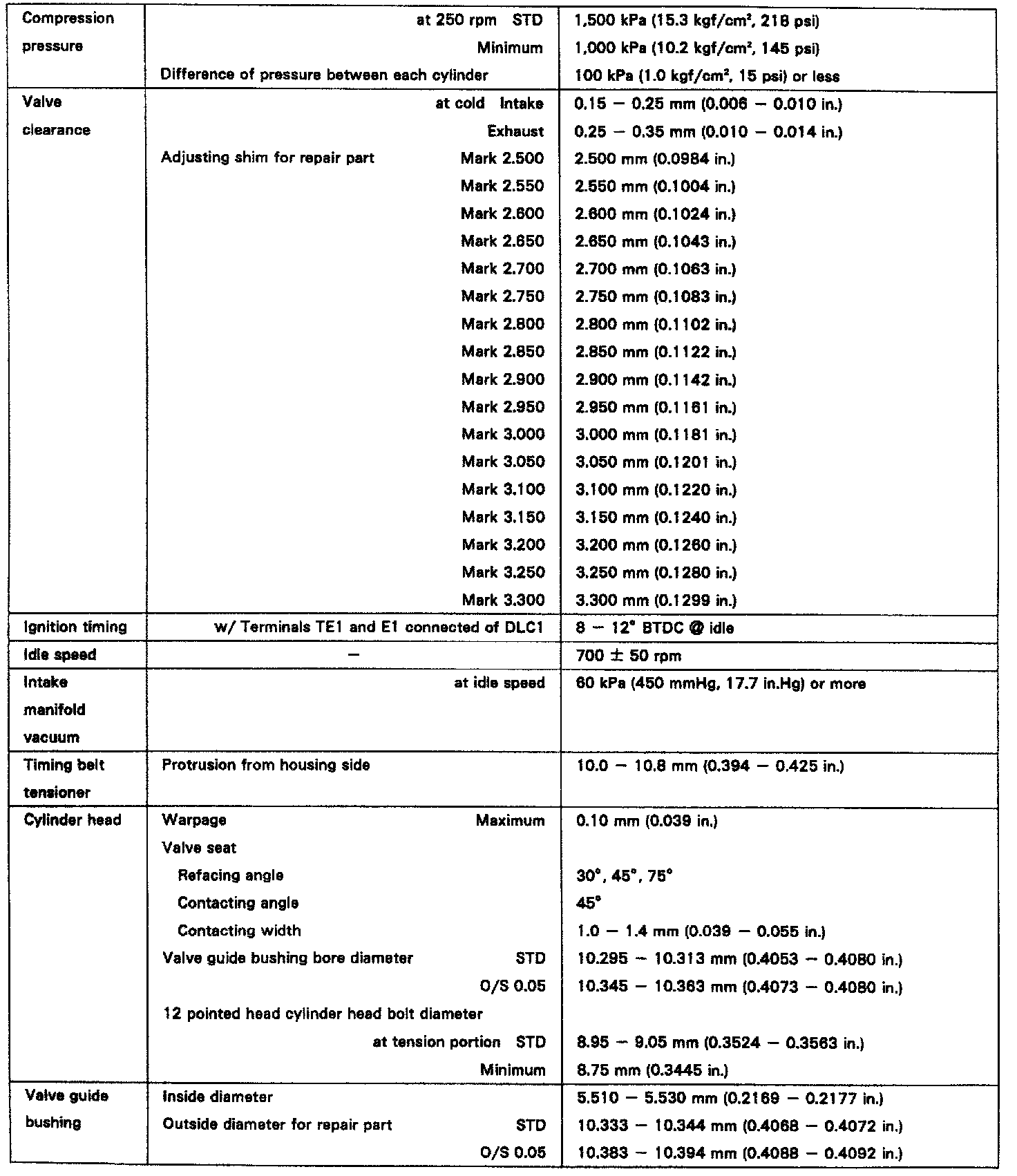

ENGINE SPECIFICATIONS

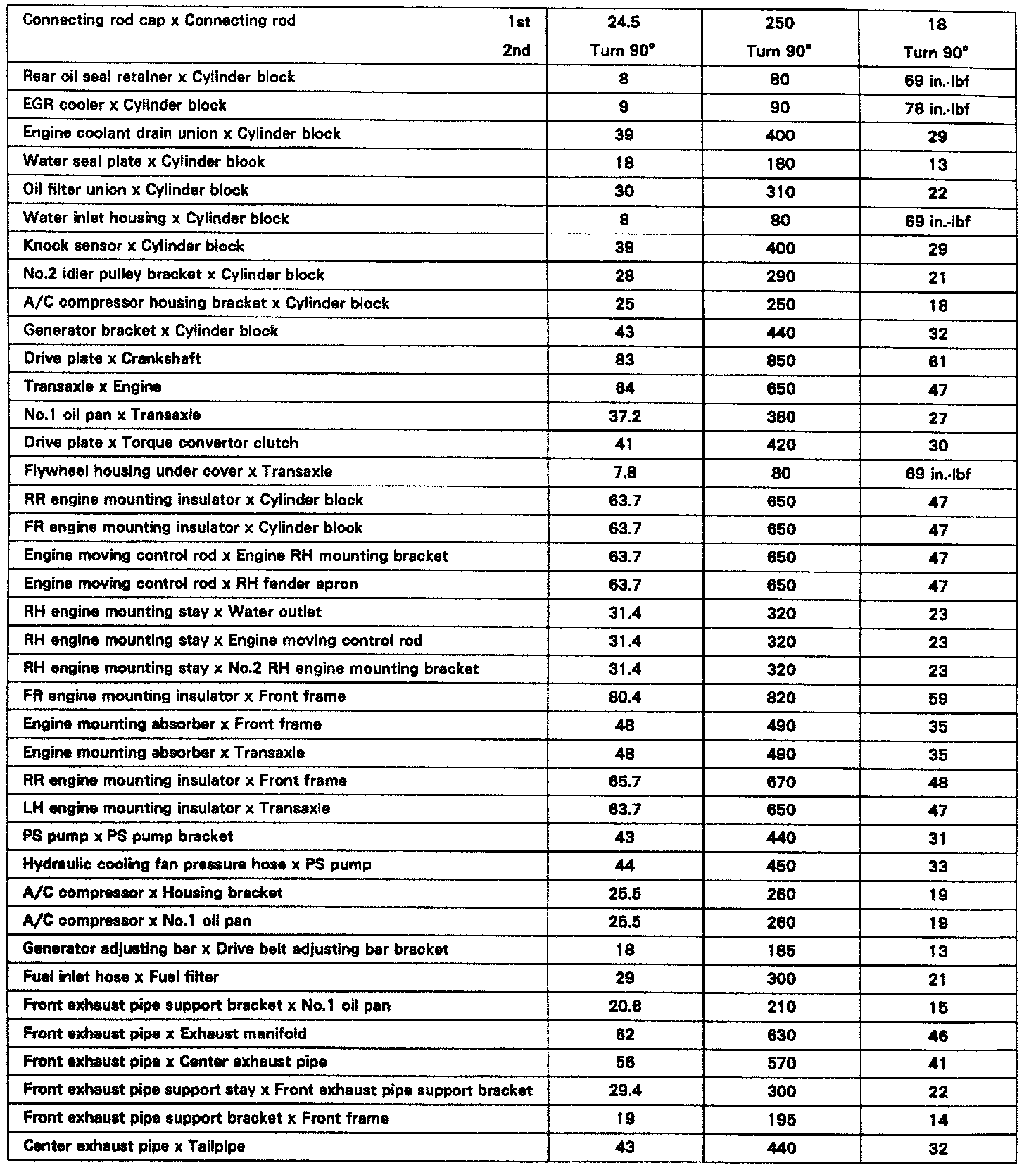

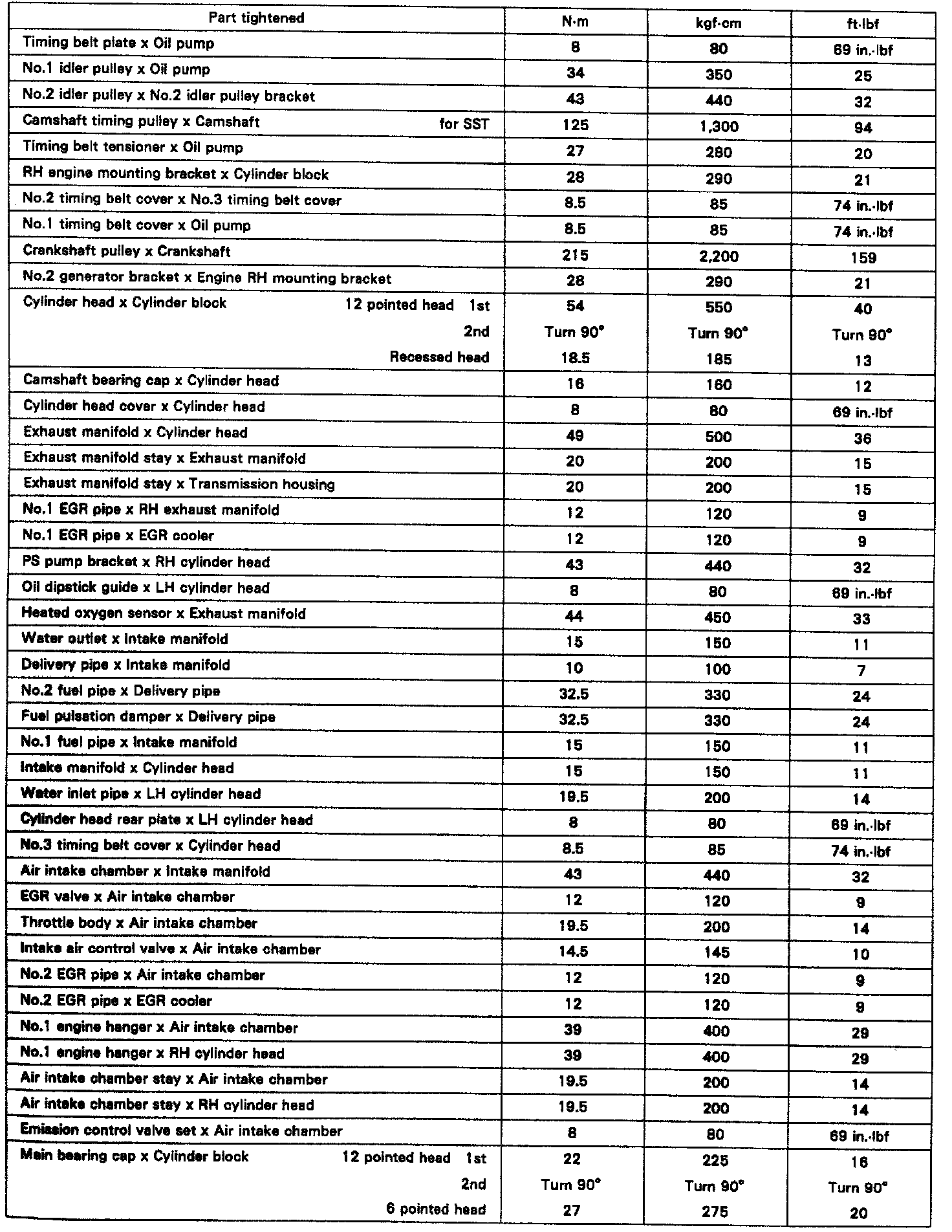

TIGHTENING SPECIFICATIONS

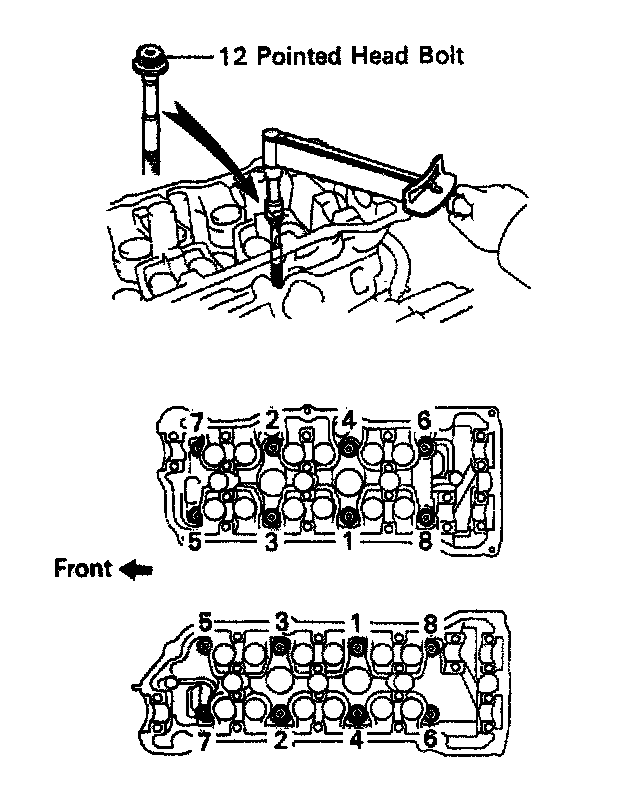

CYLINDER HEAD TIGHTENING SEQUENCE

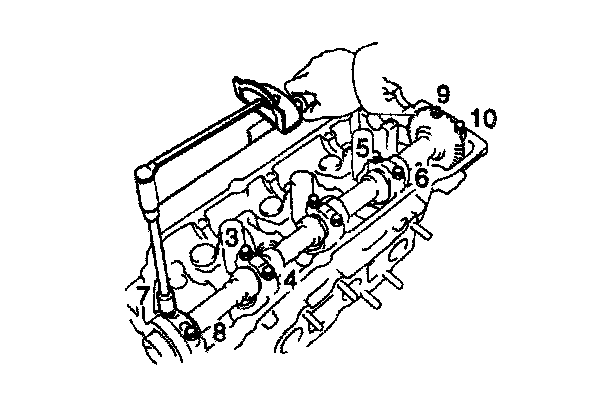

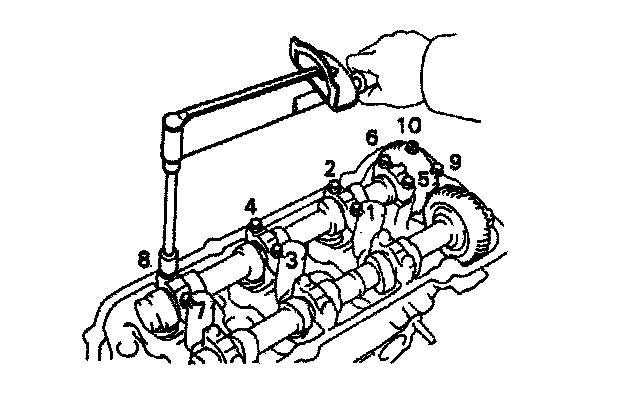

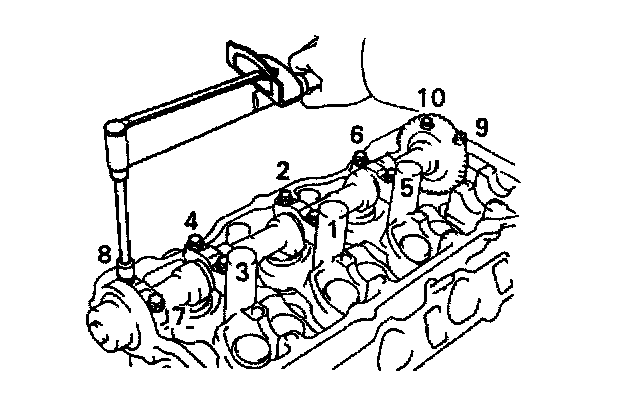

RH CAP TIGHTENING SEQUENCE

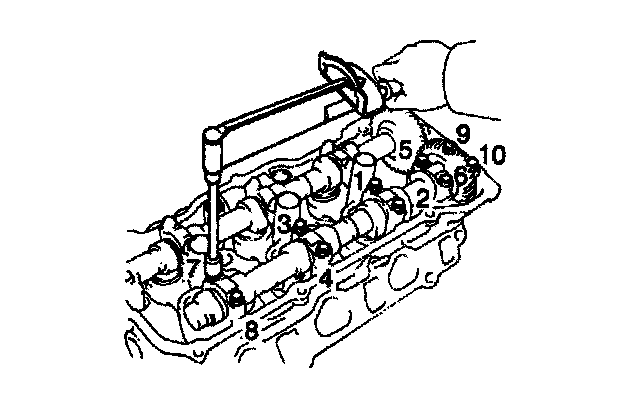

LH CAP TIGHTENING SEQUENCE

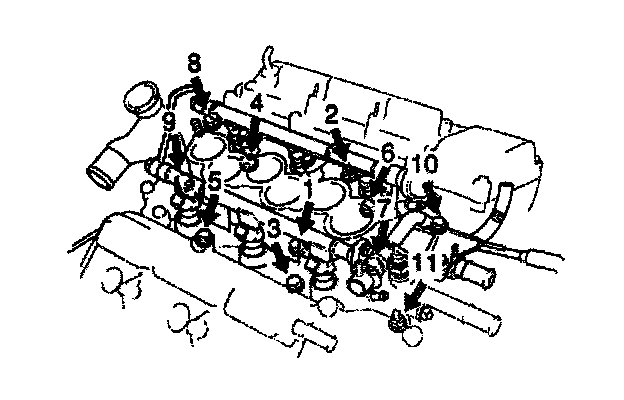

INTAKE TIGHTENING SEQUENCE

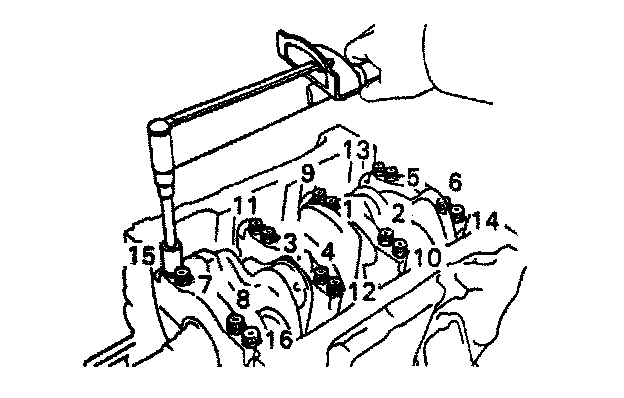

MAIN BEARING TIGHTENING SEQUENCE

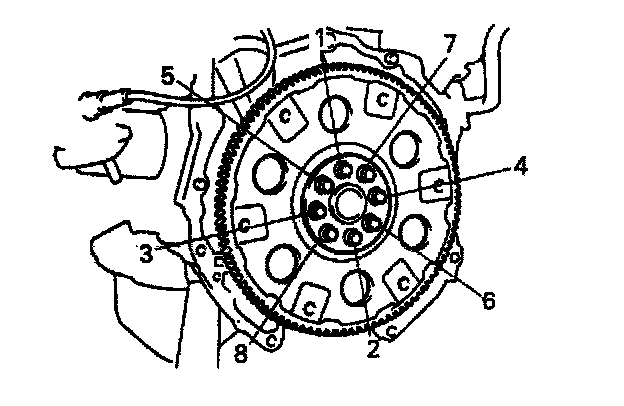

FLYWHEEL TIGHTENING SEQUENCE
