Pattern Select Switch Test

Disconnect electrical connector from pattern select switch. See Fig 1. Using ohmmeter, ensure continuity exists between terminals No. 3 and 6 with switch in PWR position. No continuity should exist in NORM position.

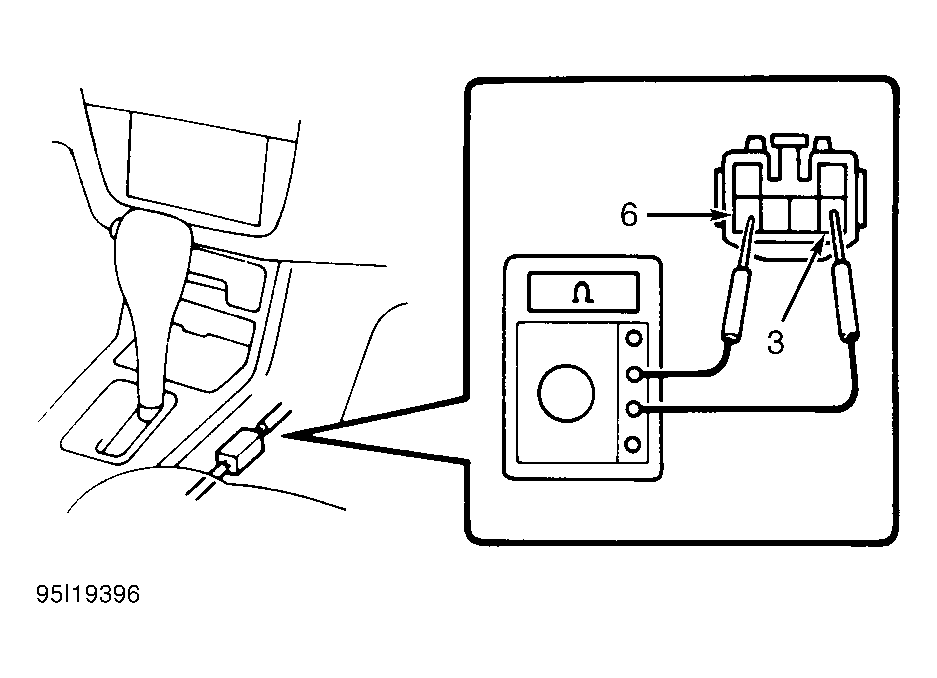

Fig 1: Identifying Pattern Select Switch Terminals
