Stoplight Switch Circuit

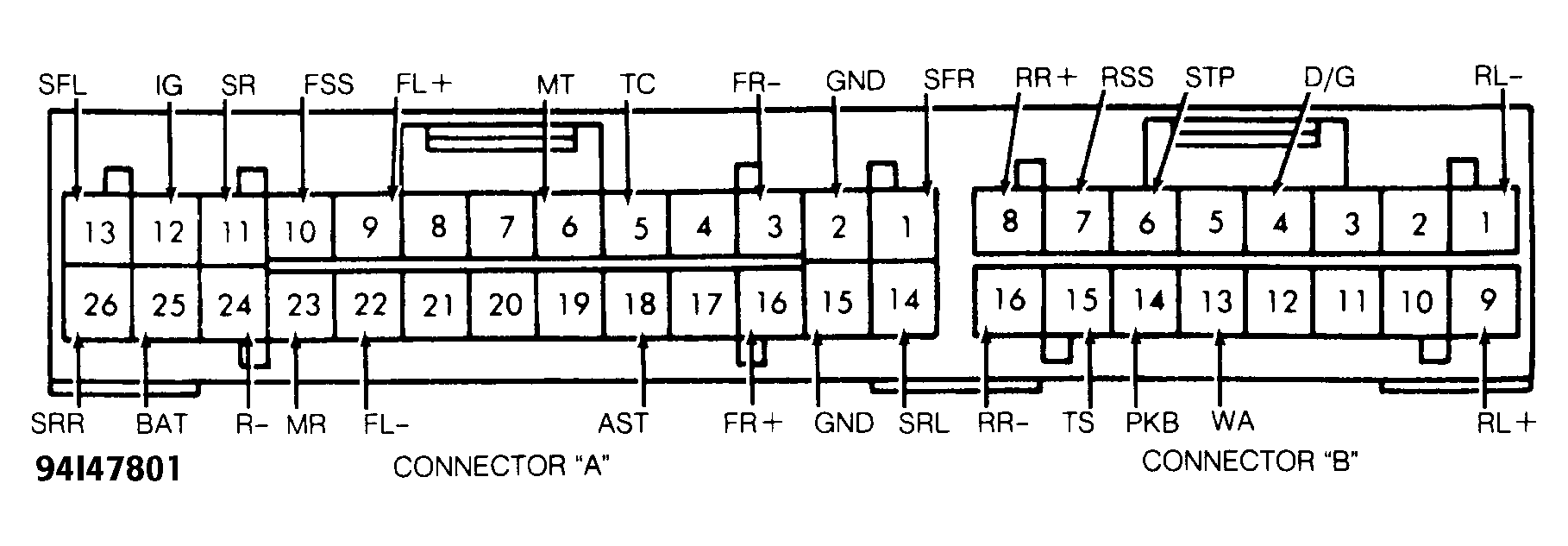

Ensure stoplights operate when brake pedal is pressed. Leave ABS ECU connectors attached. Measure voltage between chassis ground and terminal B6 of ABS ECU connector. See Figure. If battery voltage is present, stoplight switch circuit is okay. If battery voltage is not present, check circuit between stoplight switch and ABS ECU. If circuit is okay, replace ABS ECU.
