Anti-Lock Brake System: Description

Anti-Lock Brake System (ABS) consists of an actuator, control relay (which consist of a solenoid relay and a pump motor relay), Electronic Control Unit (ECU), and a speed sensor at each wheel. If a system fault occurs, the ECU stores a self-diagnostic code(s) that can be retrieved to help find the problem.

NOTE: For more information on brakes, see BRAKE SYSTEM article in the BRAKES section.

ELECTRICAL COMPONENT LOCATIONS

Component

Location

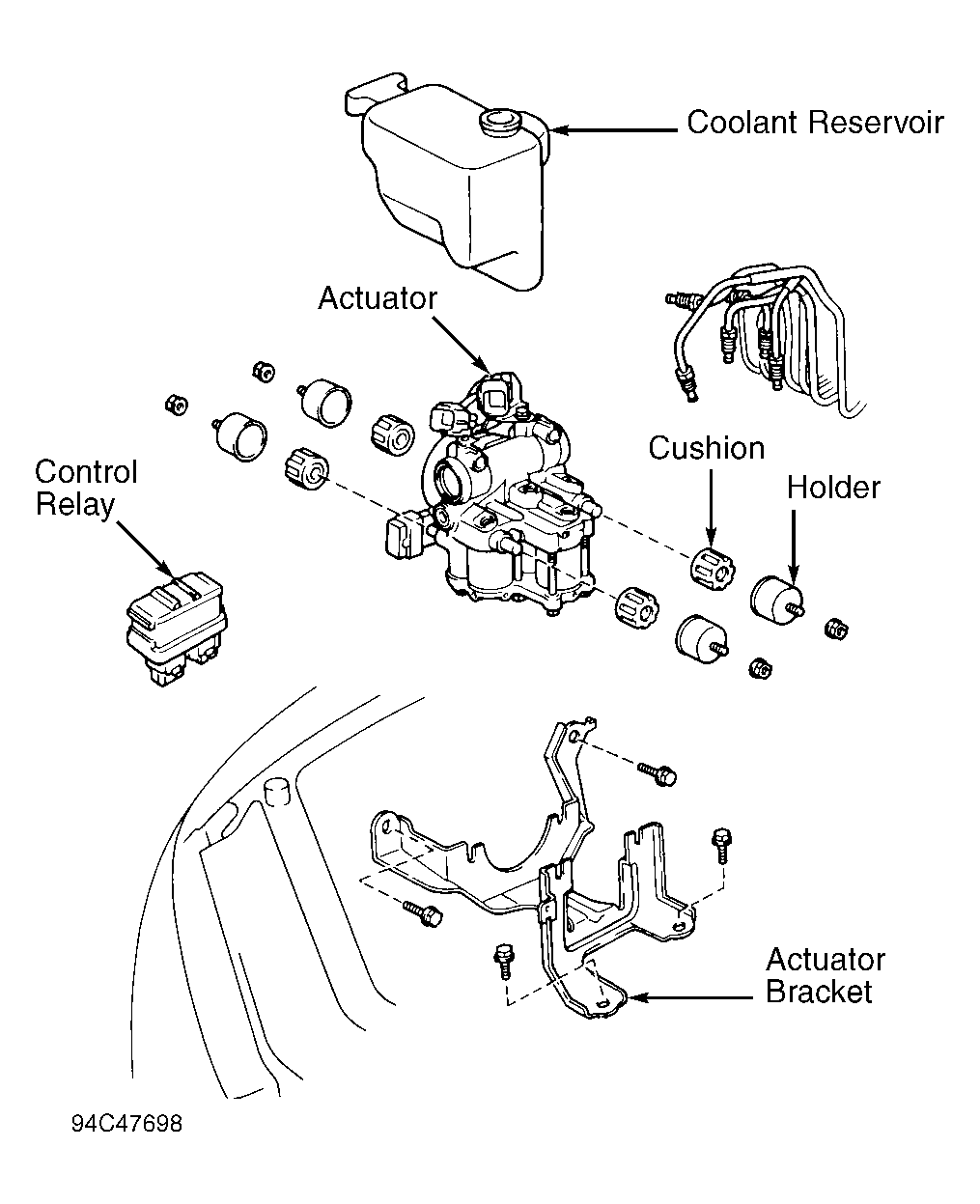

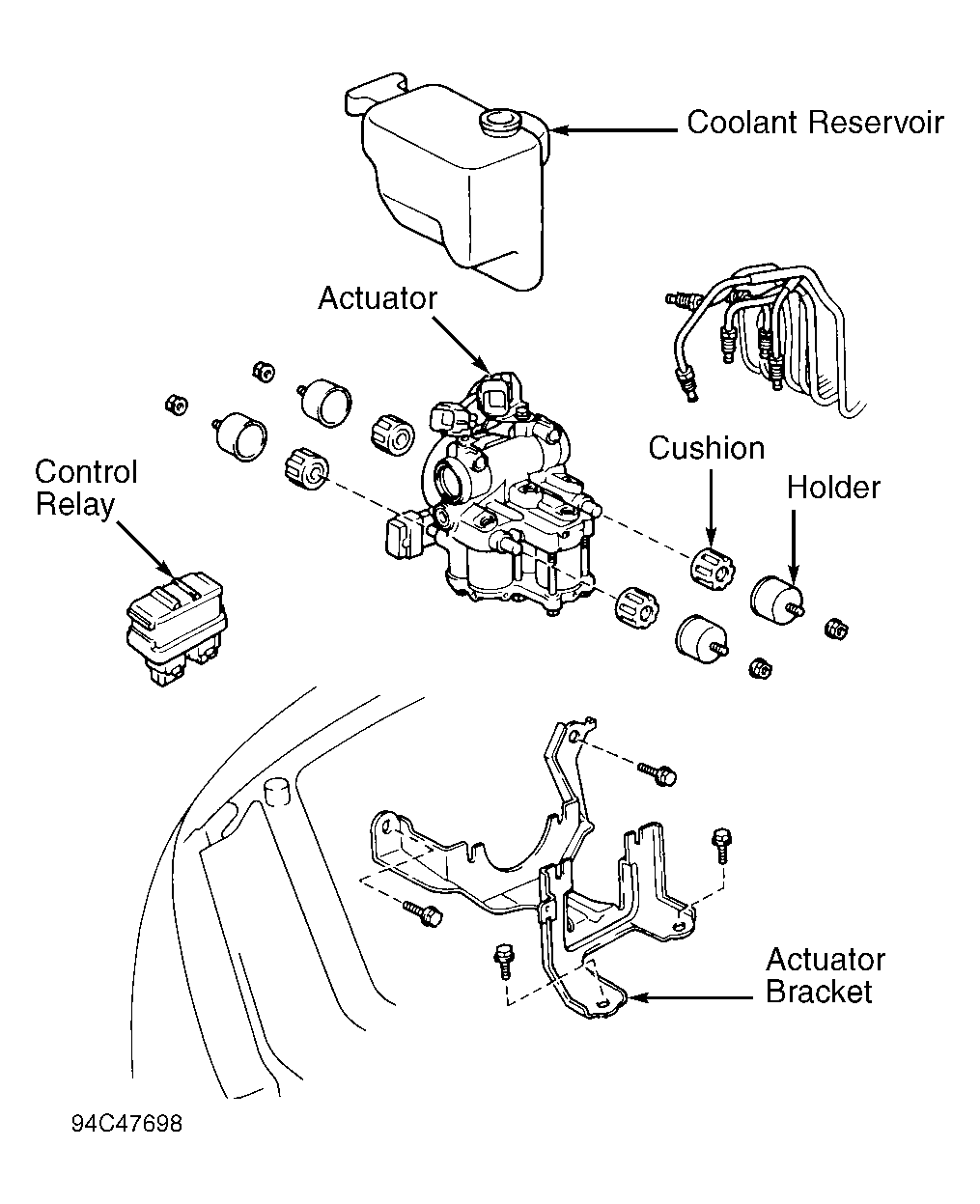

ABS Actuator

⁽¹⁾ Right Front Corner Of Engine Compartment

ABS ECU

Behind (Or Near) Right Kick Panel

Control Relay

⁽¹⁾ On ABS Actuator

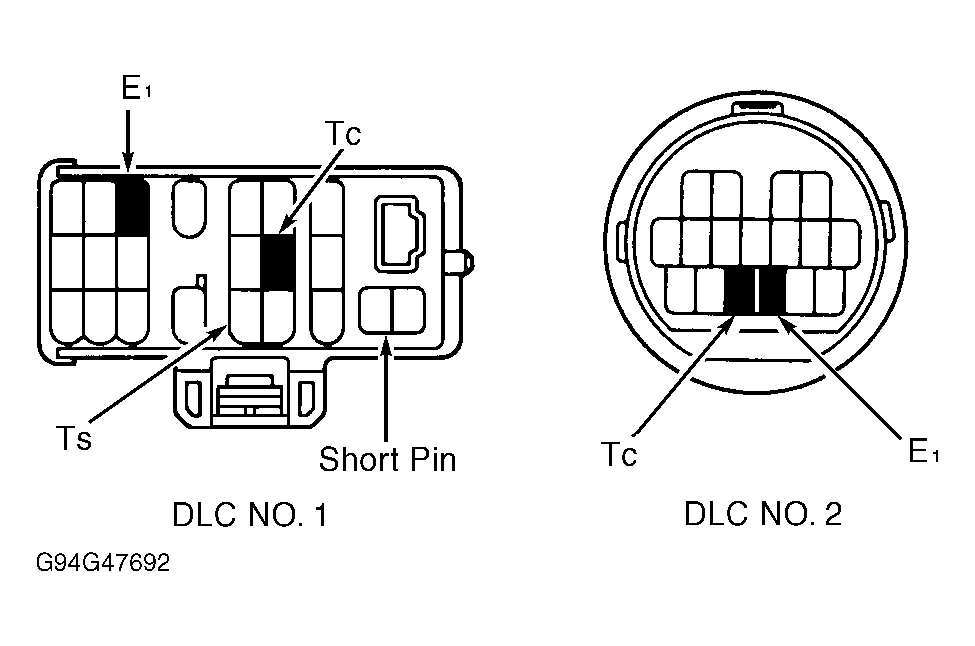

Data Link Connectors ⁽²⁾

No. 1

Right Rear Corner Of Engine Compartment

No. 2

Behind Left Side Of Dash

Speed Sensors

One At Each Wheel Hub

⁽¹⁾	See Figure.

⁽²⁾	See Figure.
