Control Units

CONTROL UNITS LOCATION

Component Location
ABS ECU Behind right side of dash. See Figure.
Anti-Theft/Door Lock ECU Behind right side of dash.
Cooling Fan Control Unit Behind right side of dash, behind glove compartment.
Cruise Control ECU Behind right side of dash. See Figure.

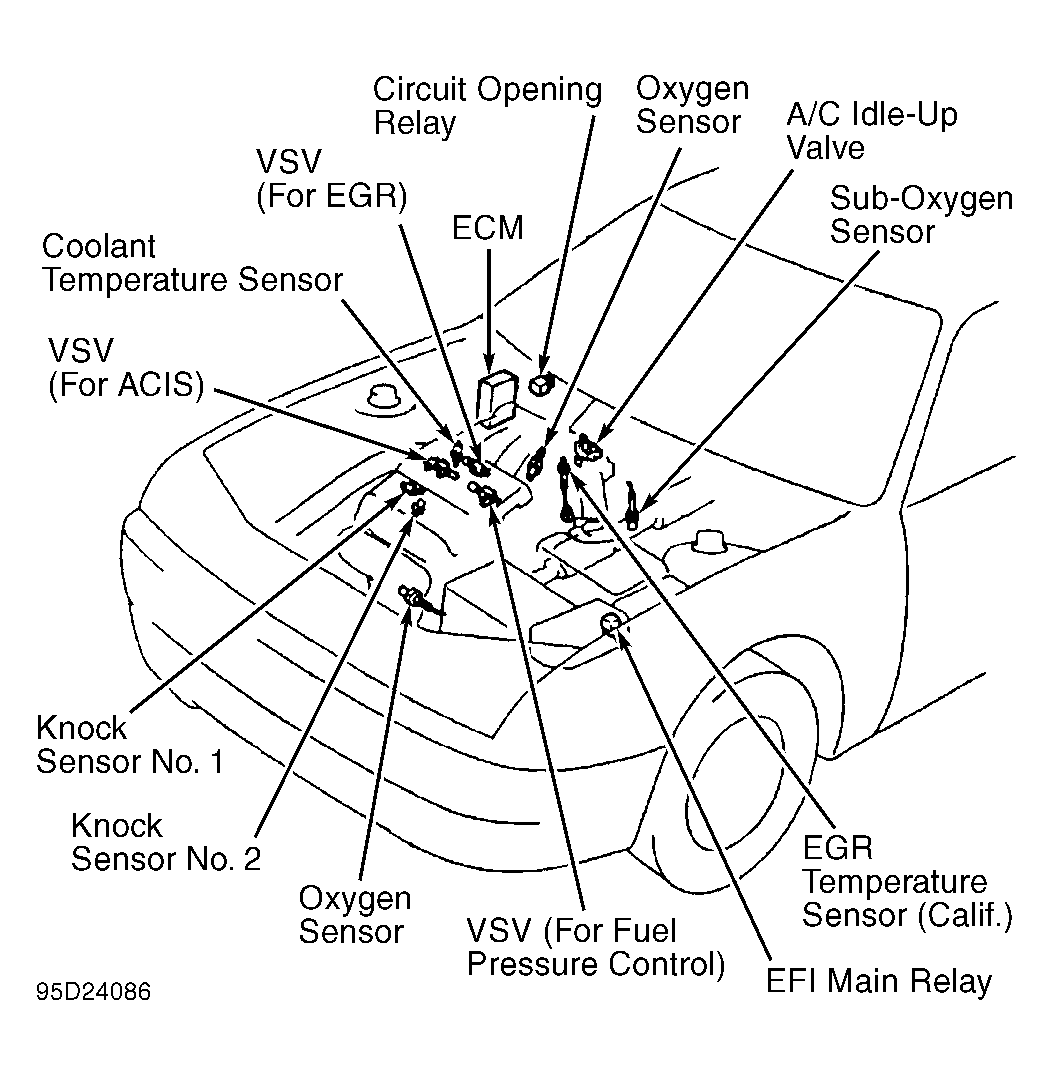

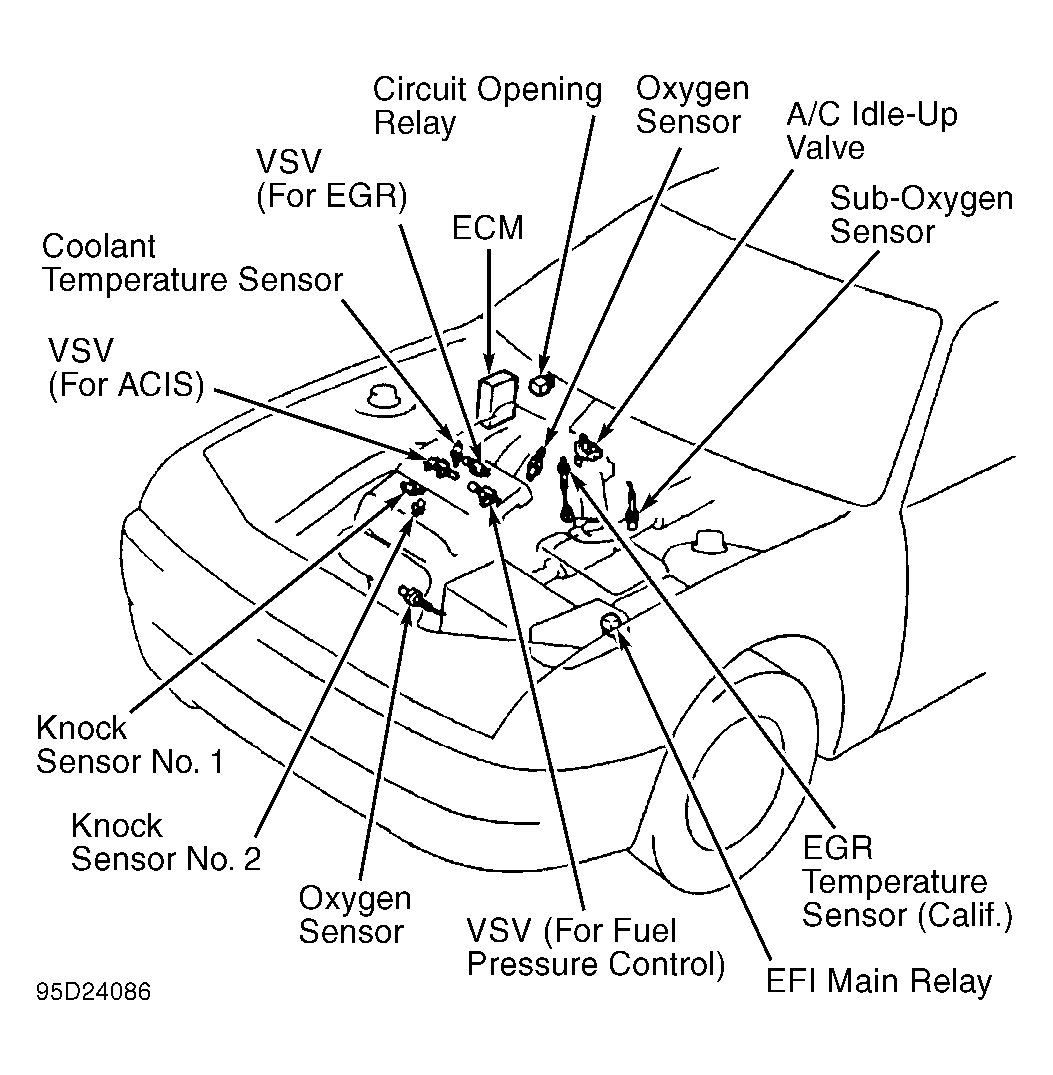

ECM (Engine Control Module) Behind right side of dash. See Figure & Figure .
Shift Lock Control ECU (A/T) Under center console, behind shifter.
Wireless Door Lock ECU On left side of luggage compartment.
