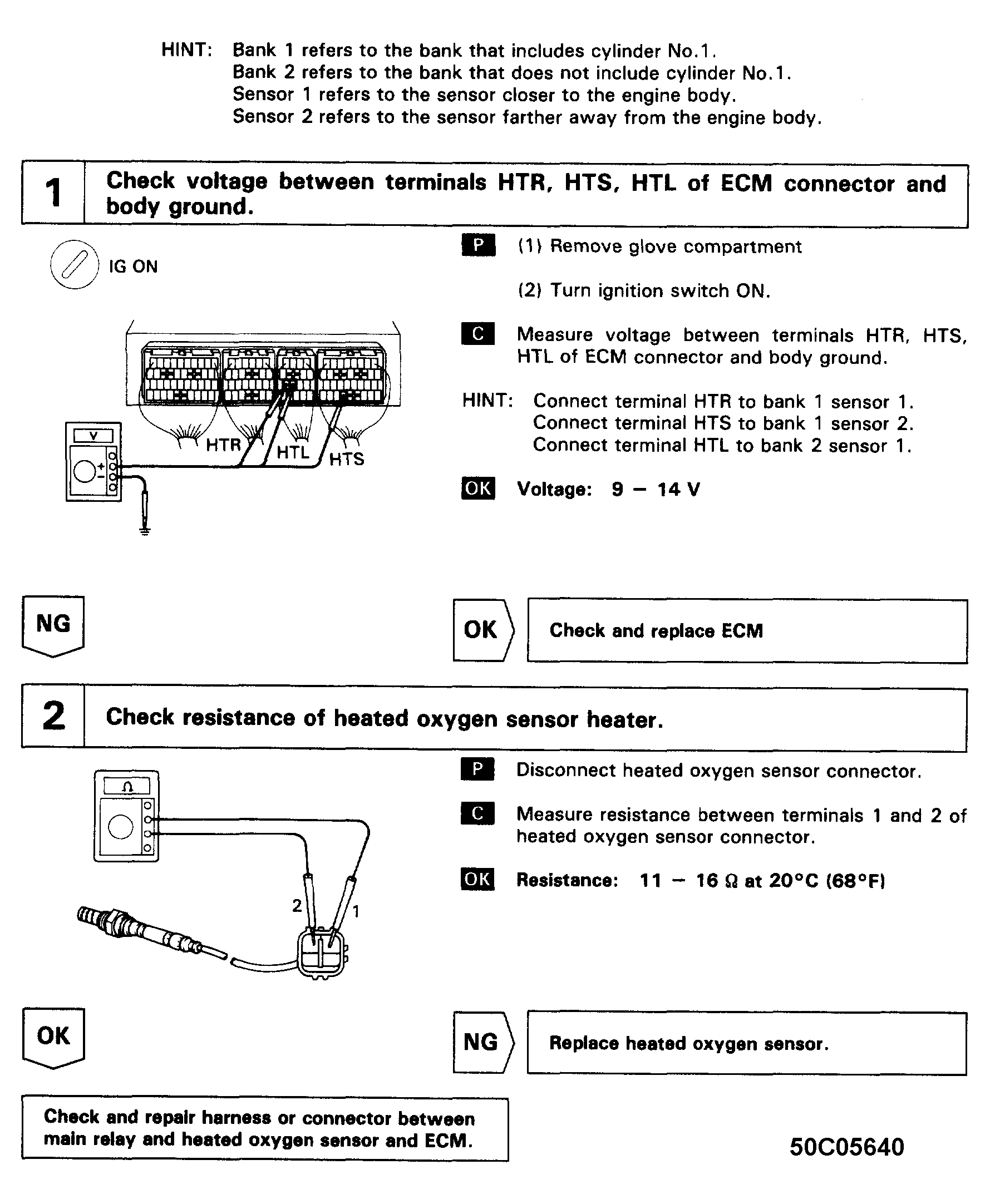

Circuit Description
Code is set when either of the following conditions is present:
- Sensor heater current draw exceeds 2 amps, or voltage drop of circuit exceeds 5 volts.
- Sensor heater current draw is .25 amps or less.
Possible causes are:
- Heated oxygen sensor open or short circuit.
- Heated oxygen sensor heater.
- ECM malfunction.
