Code P0340 - Camshaft Position Sensor Circuit Malfunction

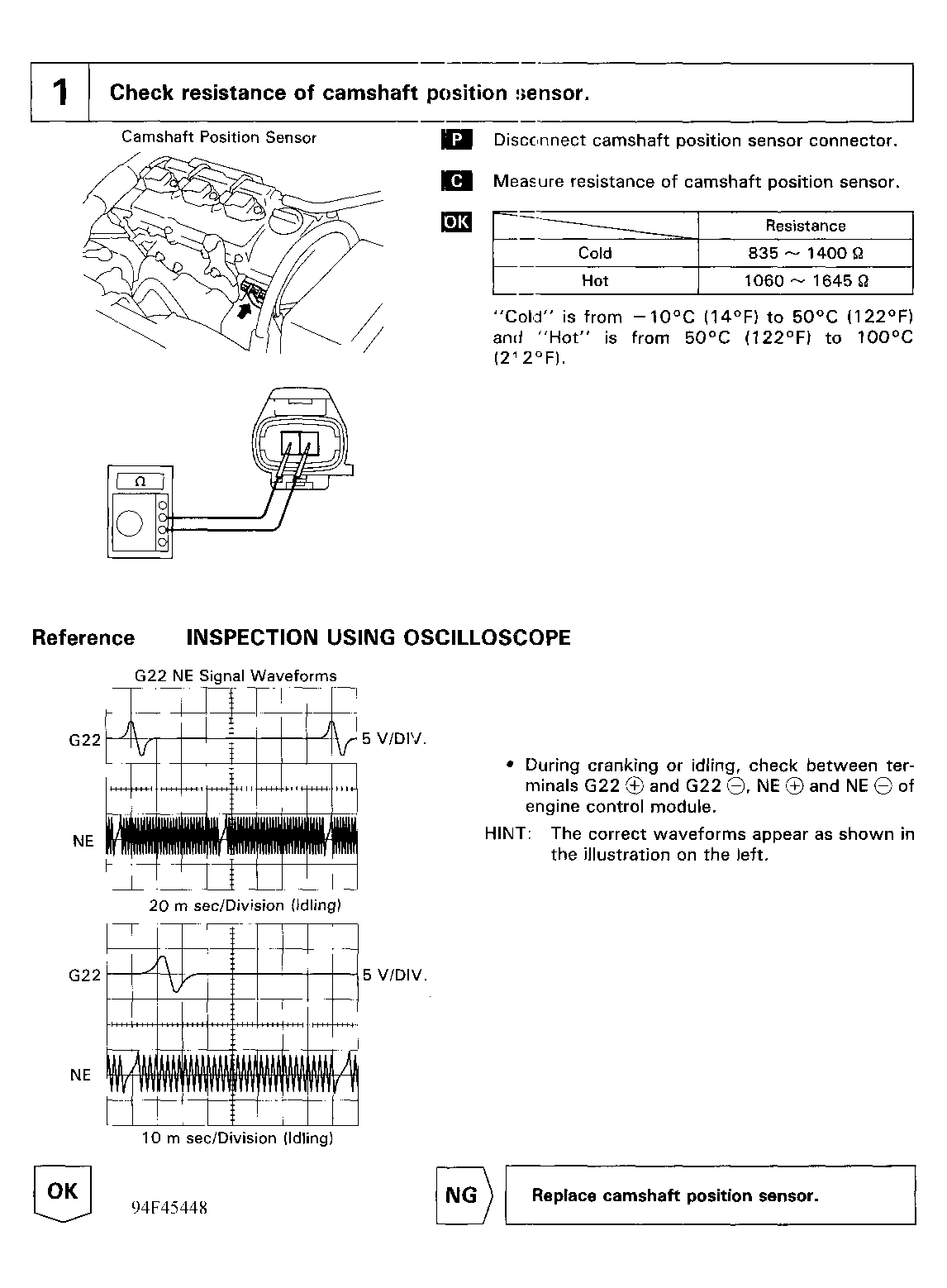

Fig 1: Code P0340 Flow Chart (1 Of 2) Camshaft Position Sensor Circuit Malfunction
G94F45448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

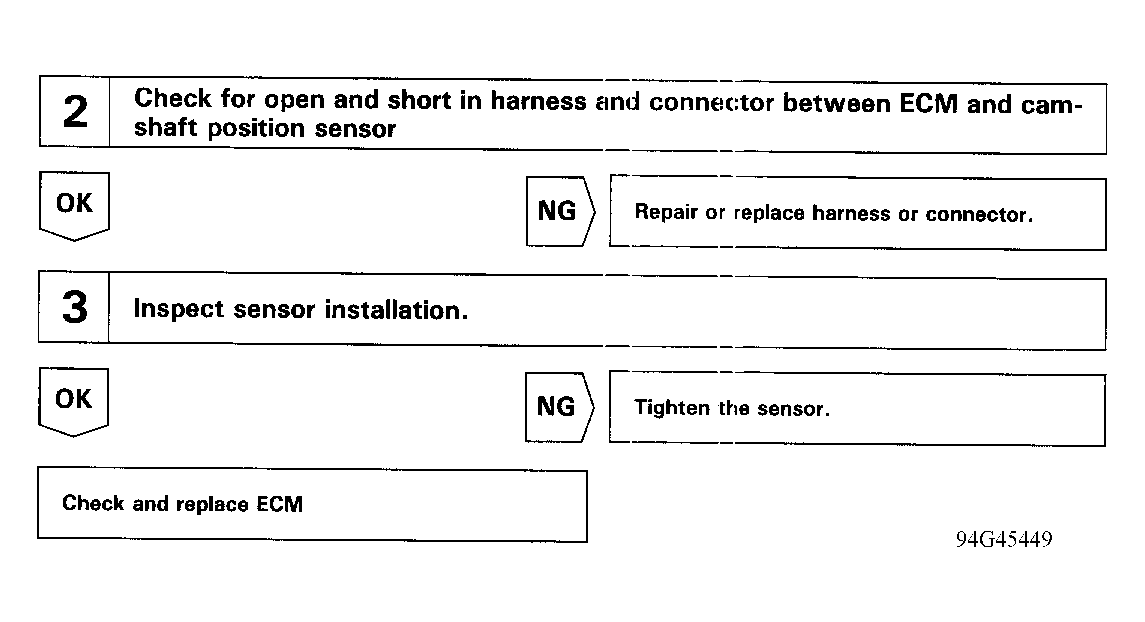

Fig 2: Code P0340 Flow Chart (2 Of 2) Camshaft Position Sensor Circuit Malfunction
G94G45449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
