Code P0401 - Exhaust Gas RECIRCULATION Flow Insufficient Detected

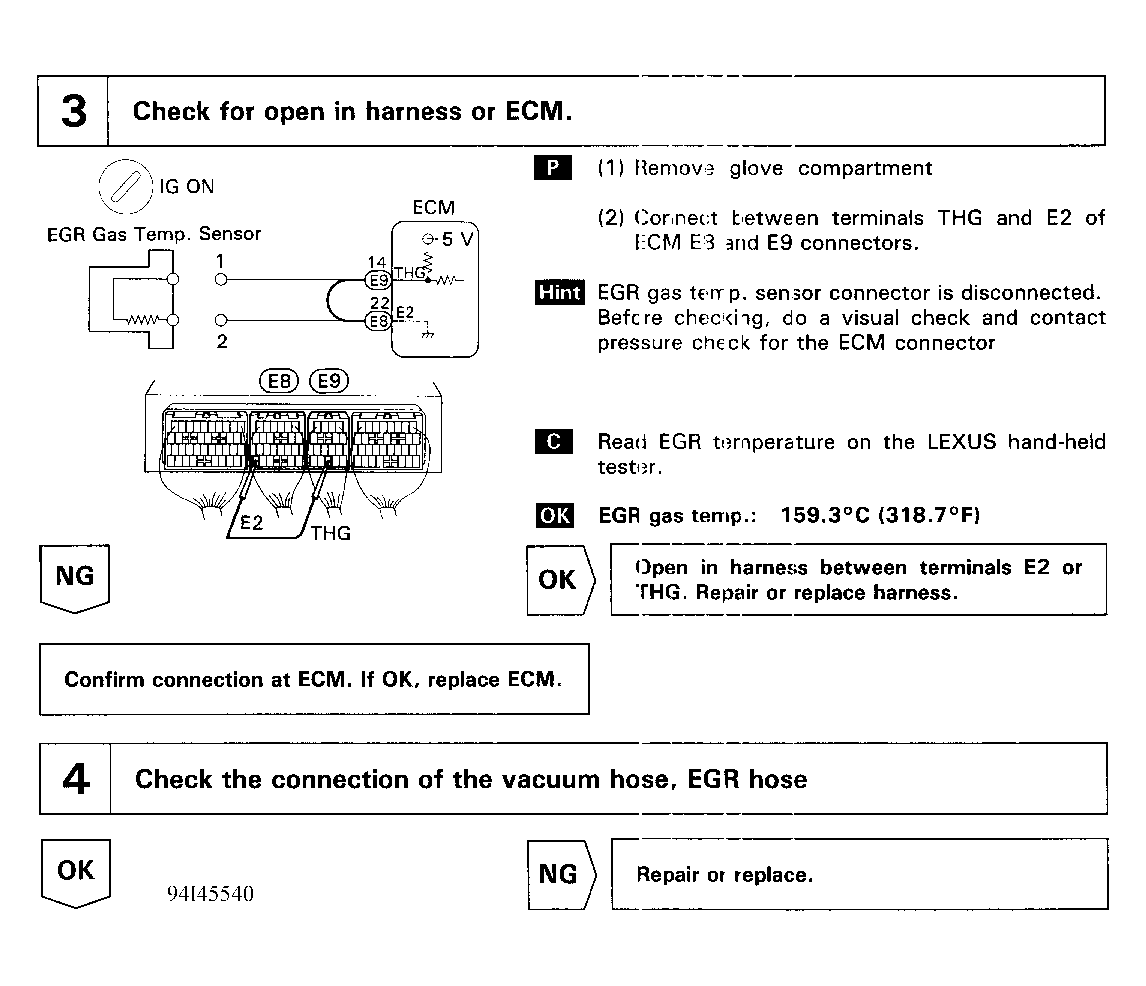

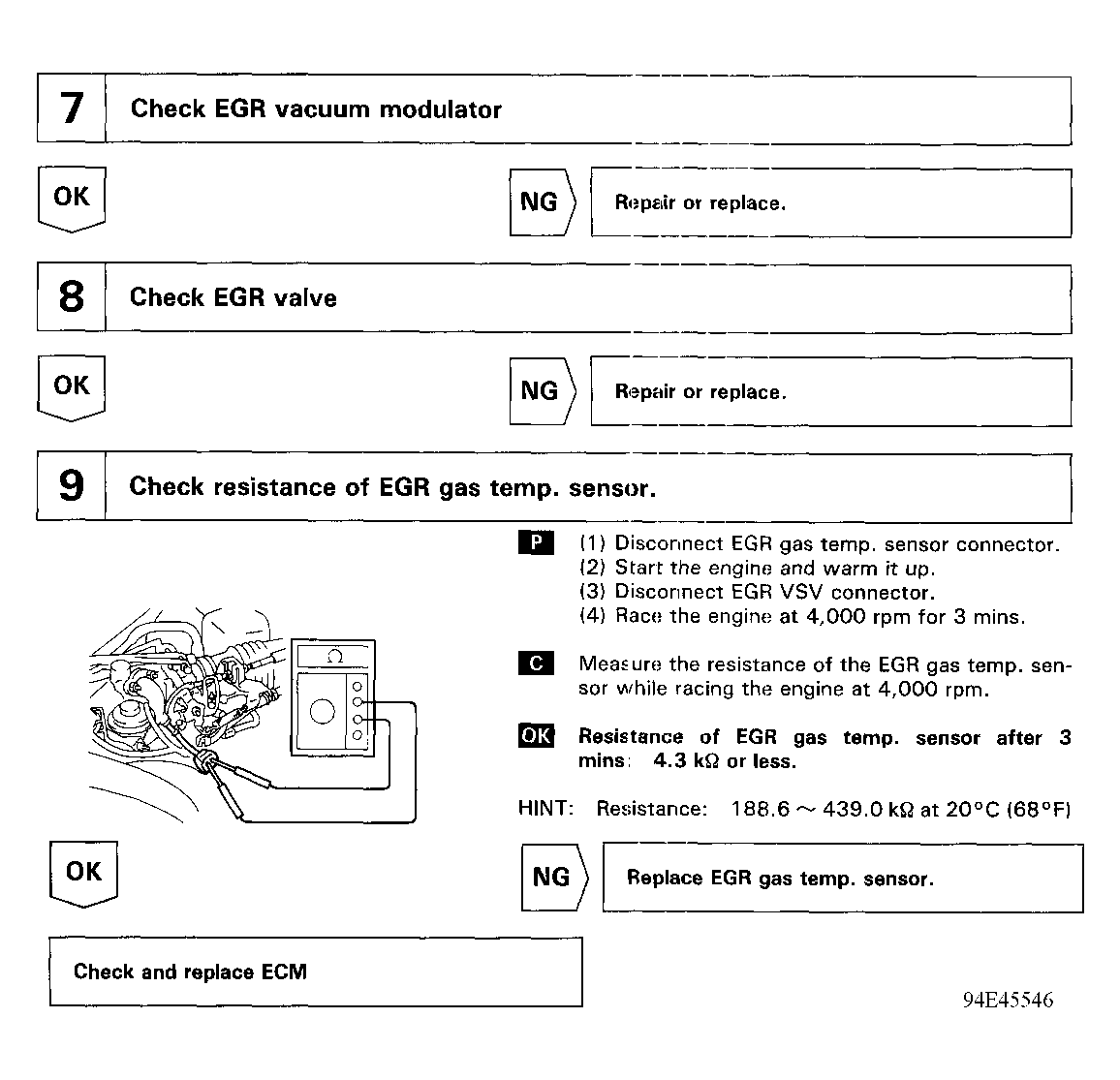

Fig 1: Code P0401 Flow Chart (1 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

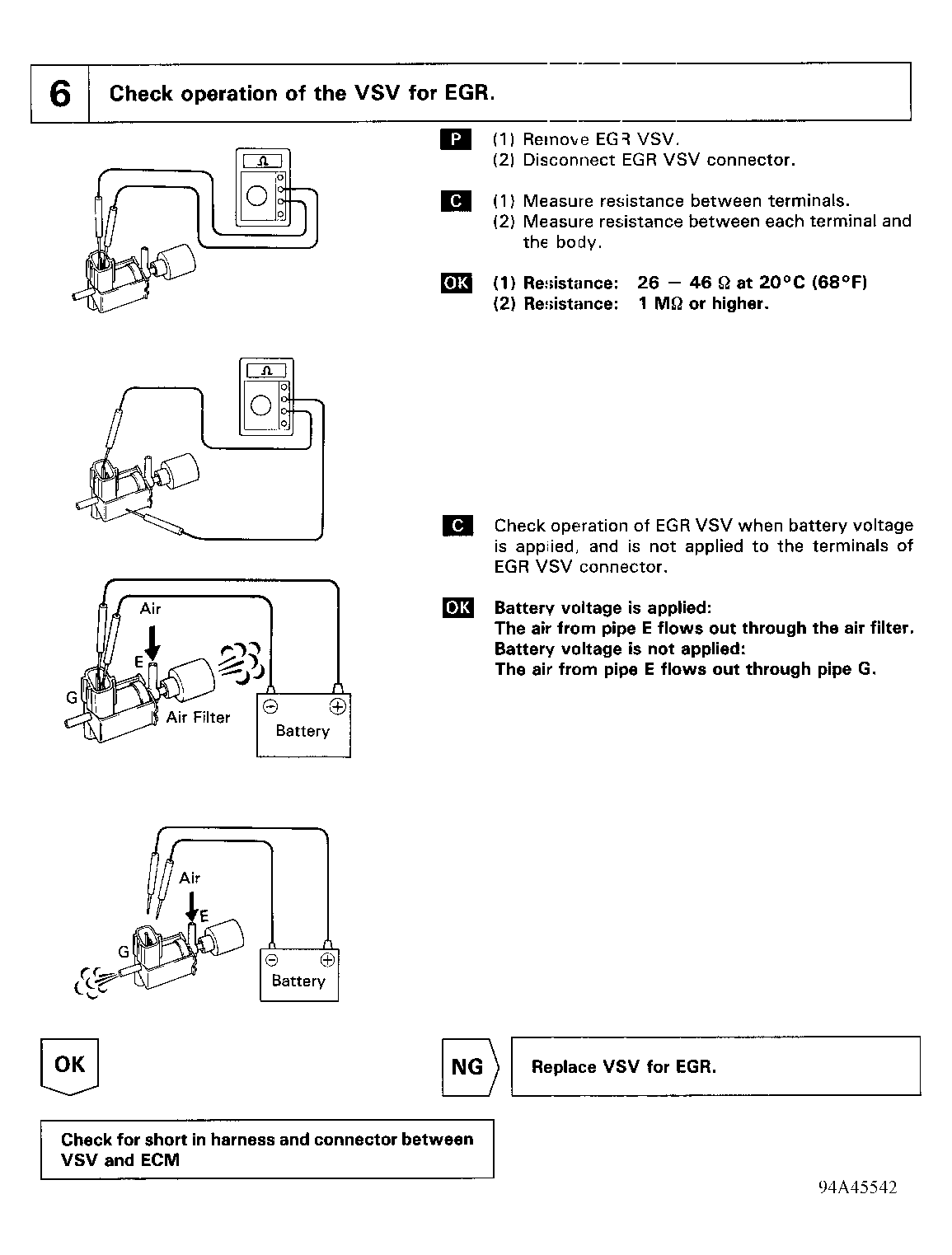

Fig 2: Code P0401 Flow Chart (2 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

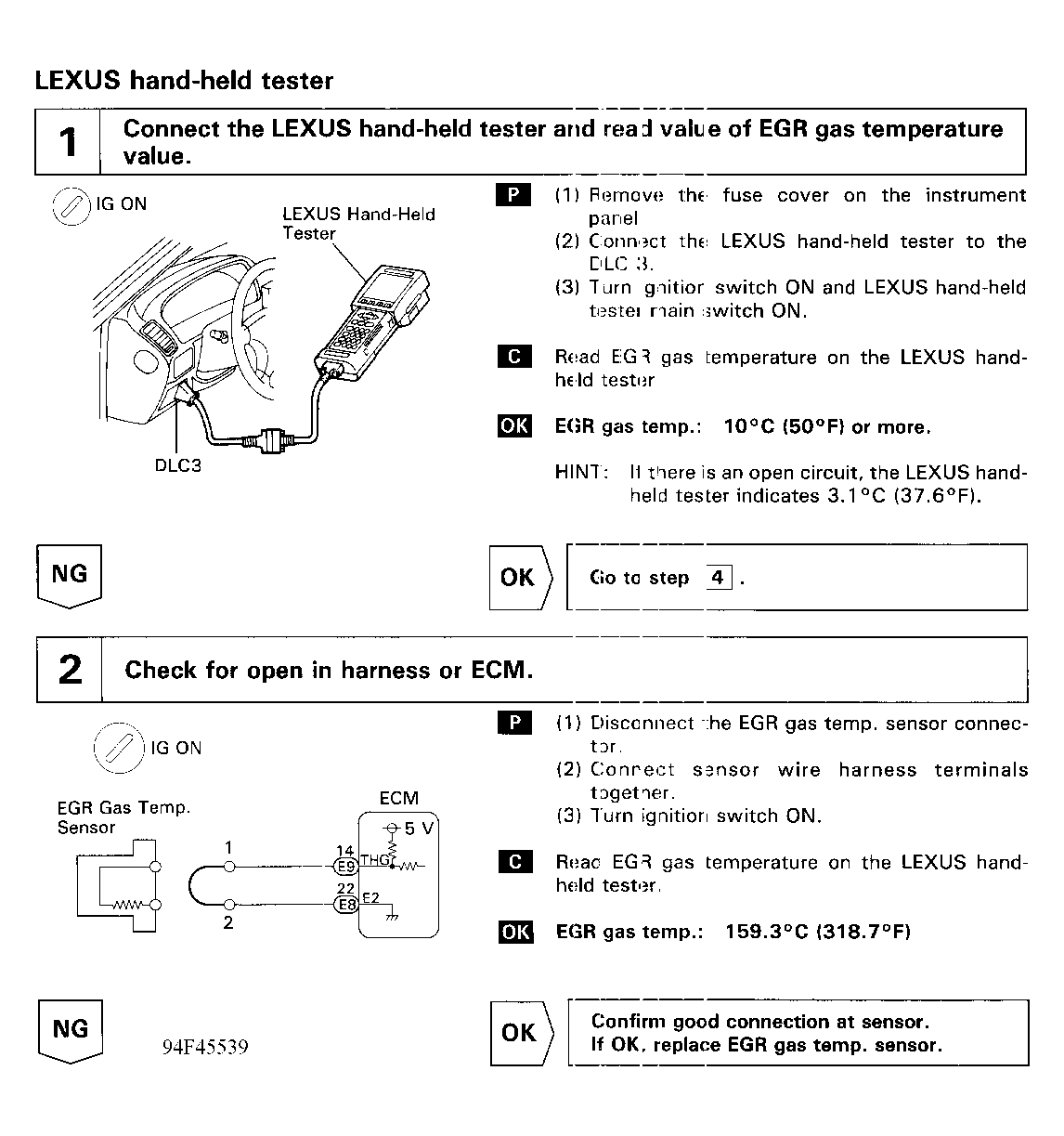

Fig 3: Code P0401 Flow Chart (3 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

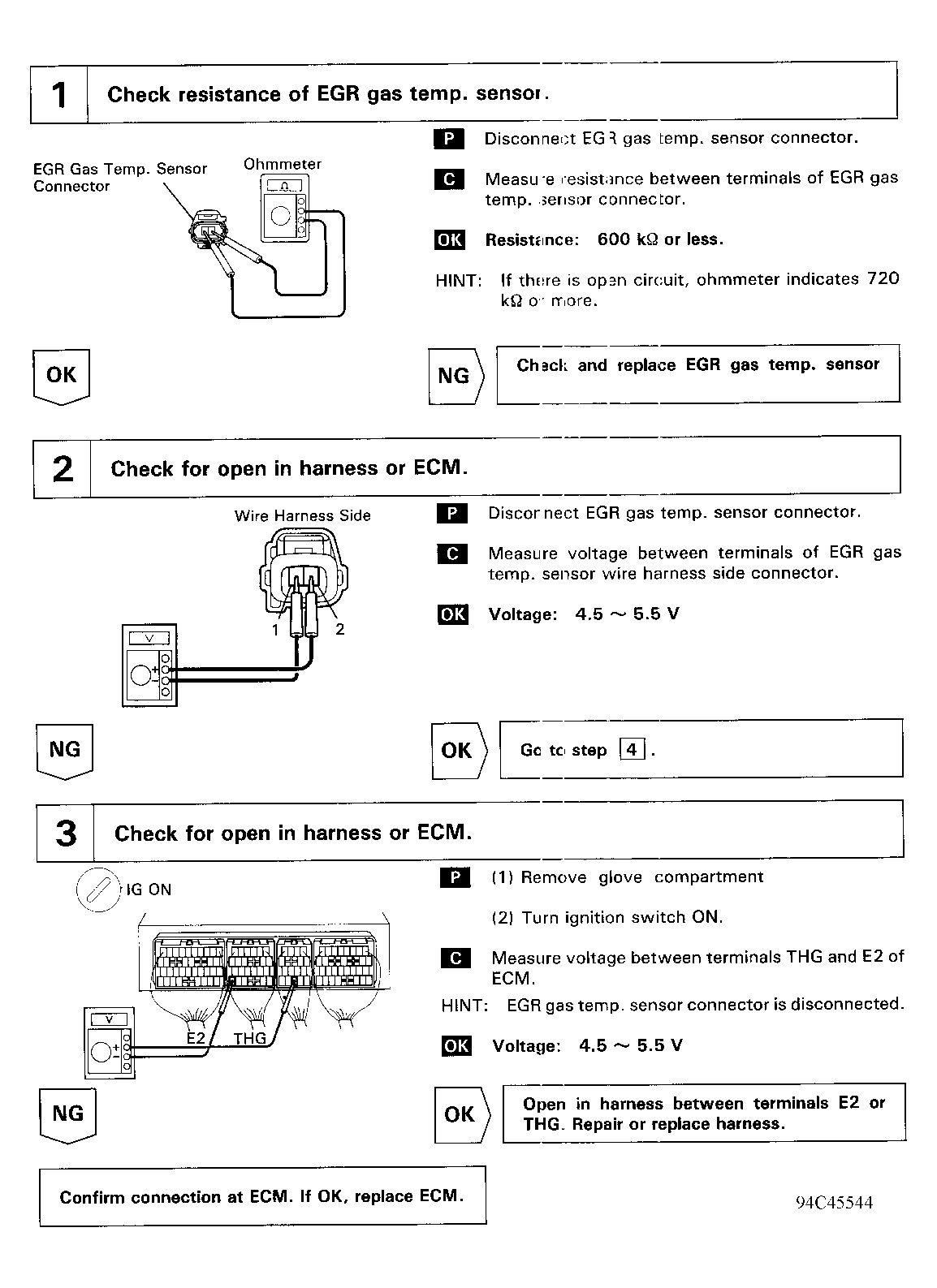

Fig 4: Code P0401 Flow Chart (4 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

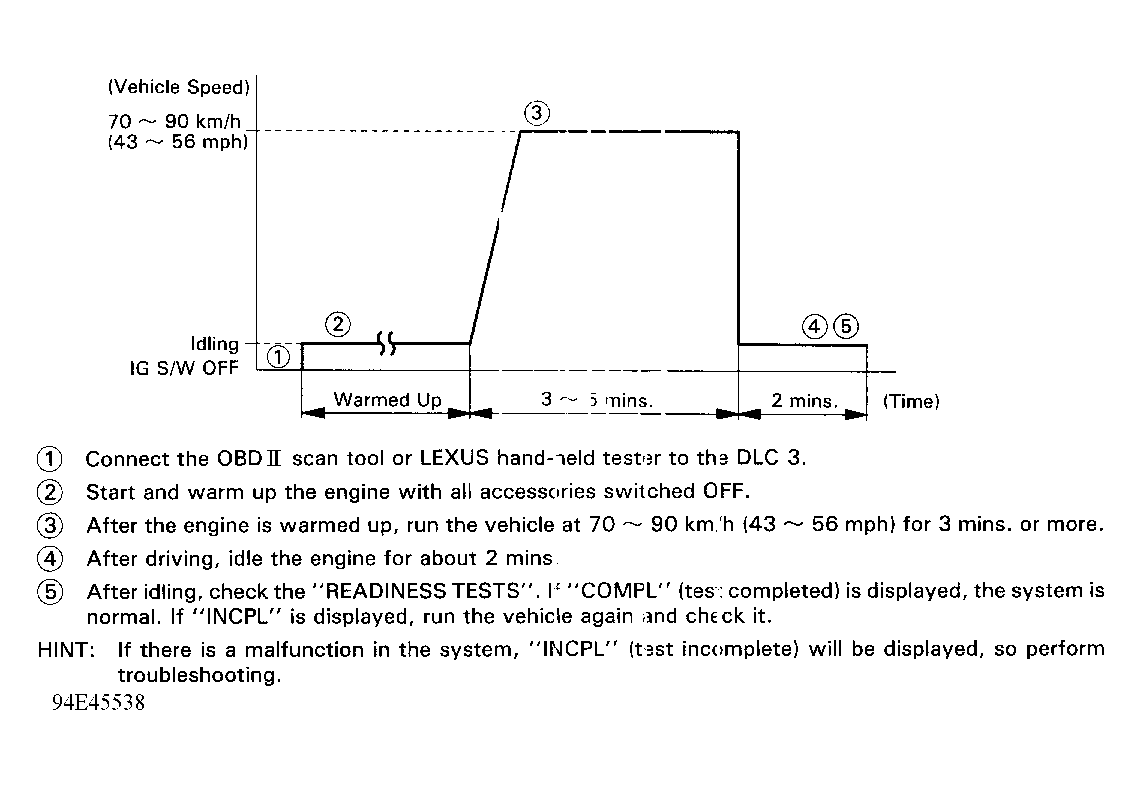

Fig 5: Code P0401 Flow Chart (5 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

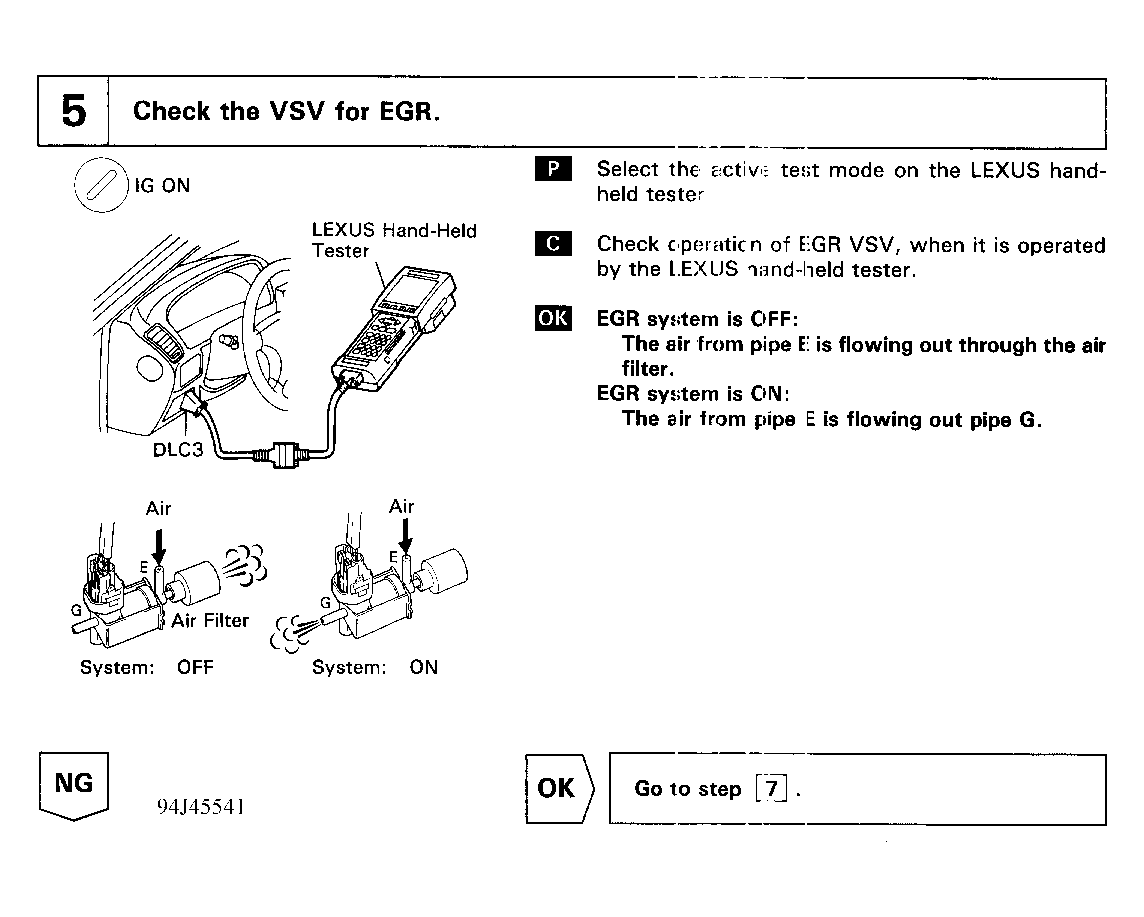

Fig 6: Code P0401 Flow Chart (6 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

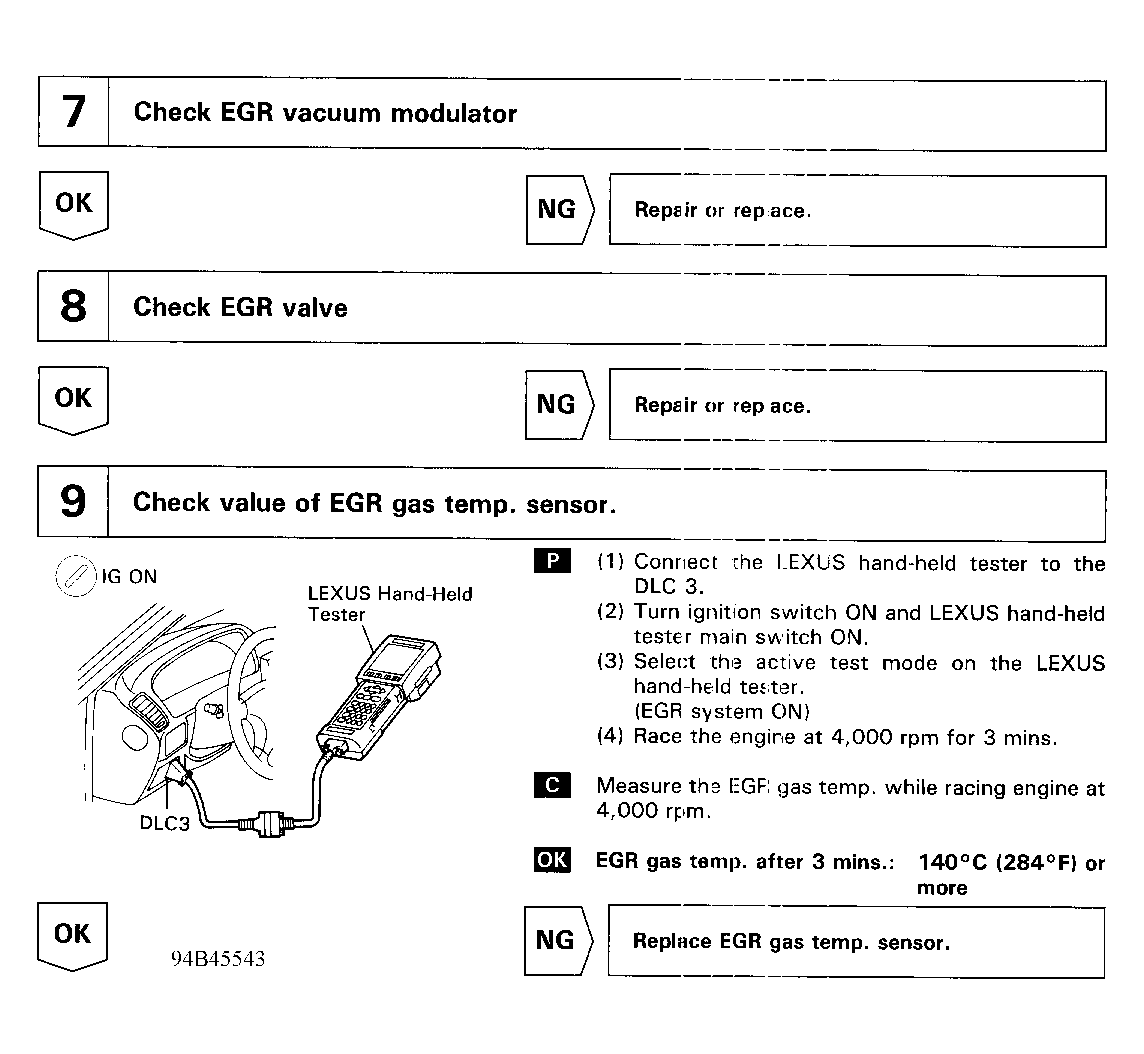

Fig 7: Code P0401 Flow Chart (7 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

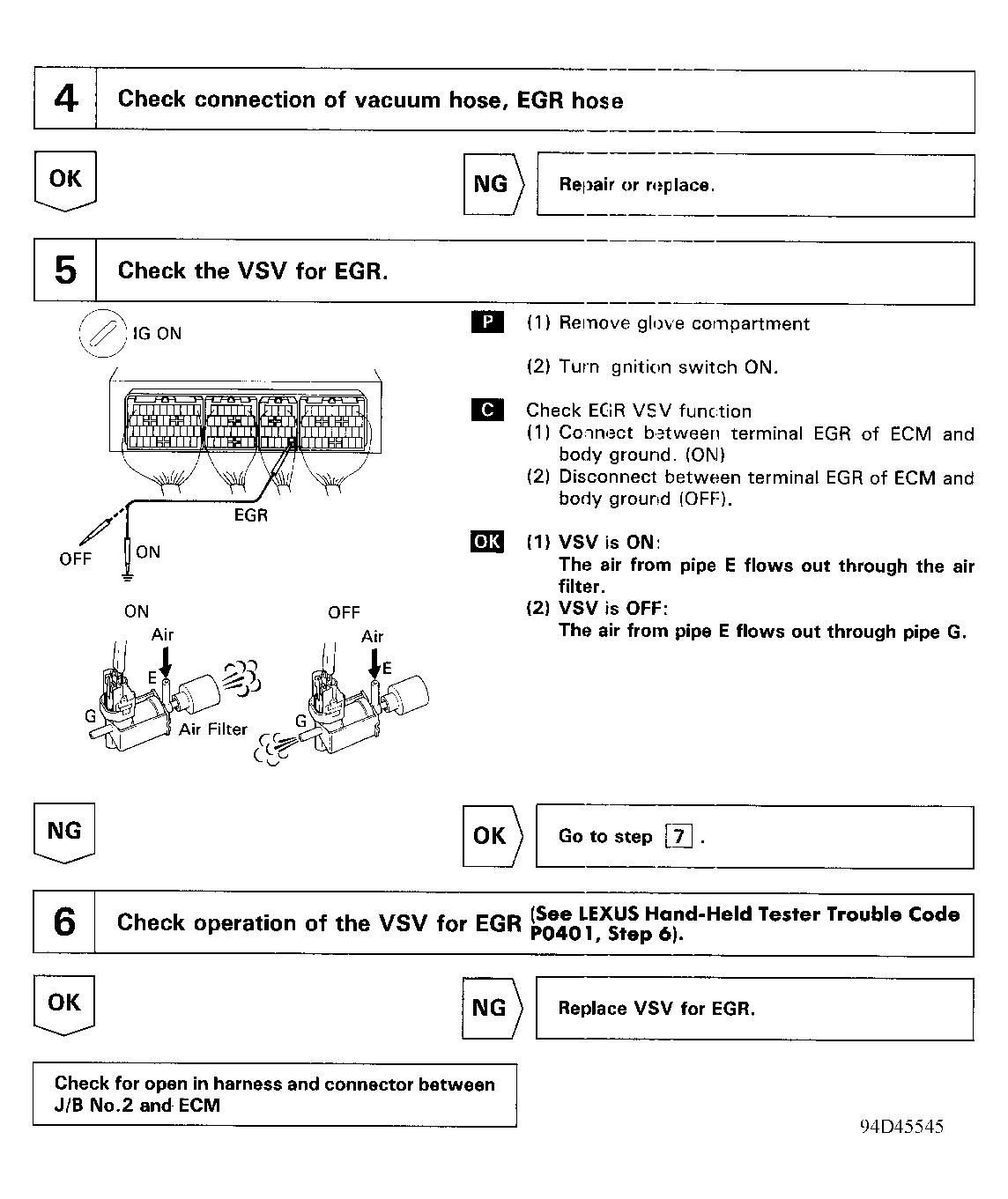

Fig 8: Code P0401 Flow Chart (8 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected

Fig 9: Code P0401 Flow Chart (9 Of 9) Exhaust Gas Recirculation Flow Insufficient Detected
