Code P0420 - Catalyst System Efficiency Below Threshold

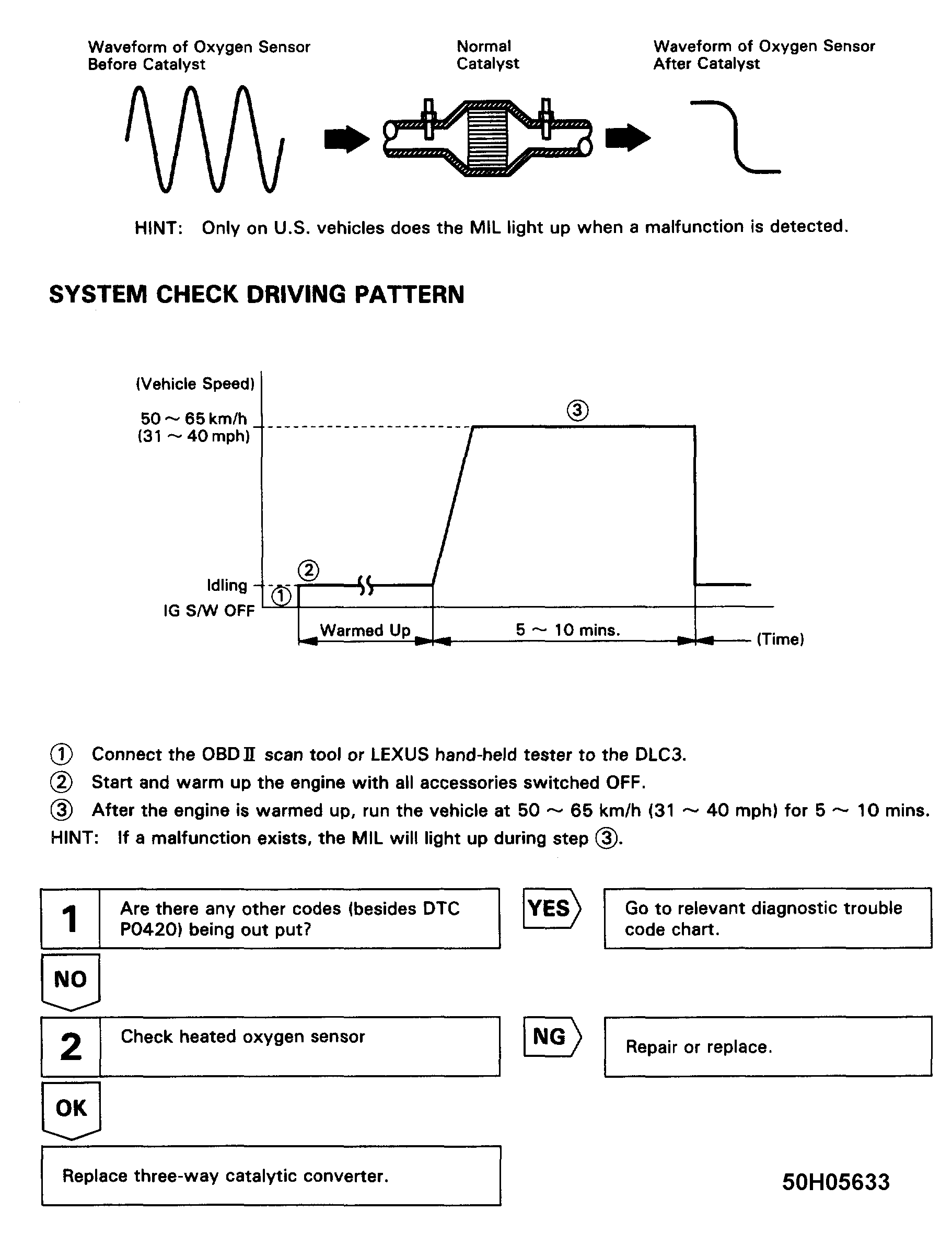

Fig 1: Code P0420 Flow Chart - Catalyst System Efficiency Below Threshold
G50H05633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
