Code P0505 - Idle Control System Malfunction

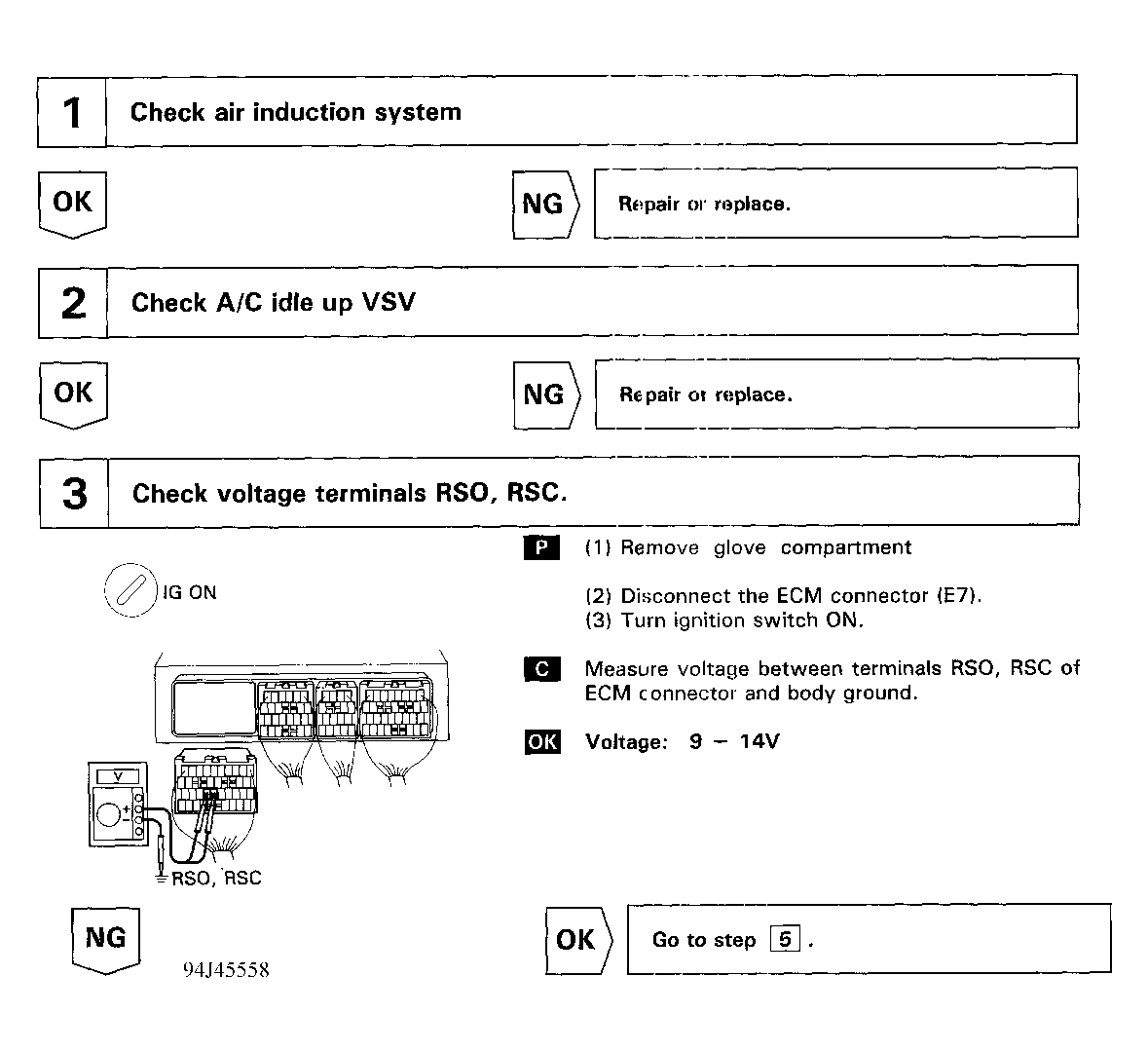

Fig 1: Code P0505 Flow Chart (1 Of 3) Idle Control System Malfunction
G94J45558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

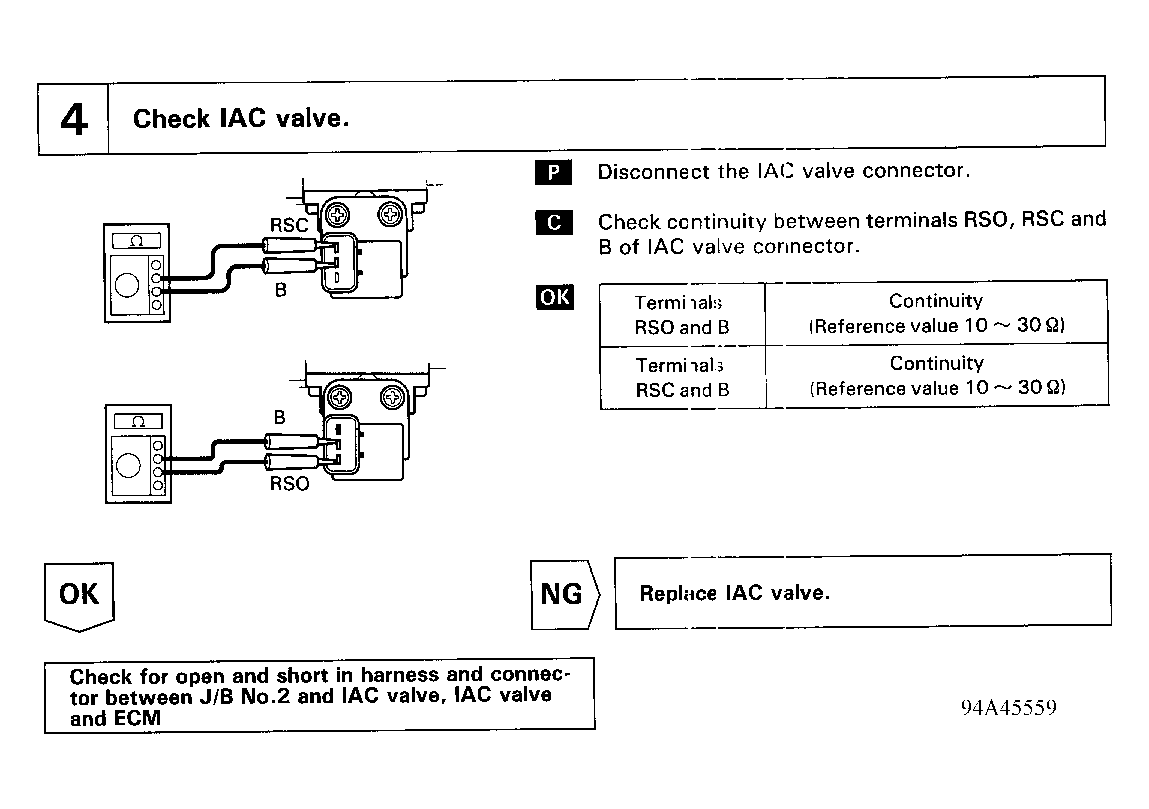

Fig 2: Code P0505 Flow Chart (2 Of 3) Idle Control System Malfunction
G94A45559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

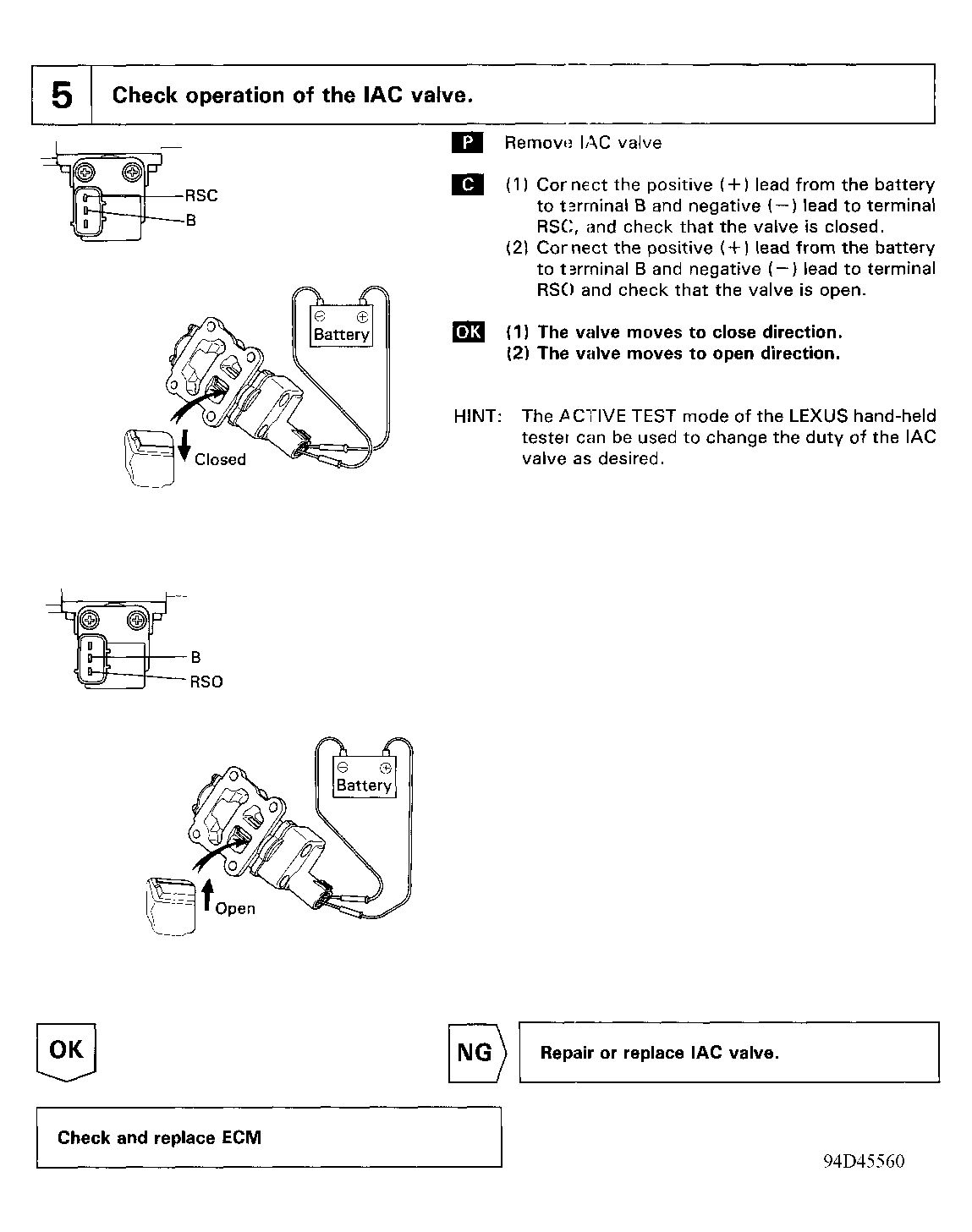

Fig 3: Code P0505 Flow Chart (3 Of 3) Idle Control System Malfunction
G94D45560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
