Code P0510 - Closed Throttle Position Switch Malfunction

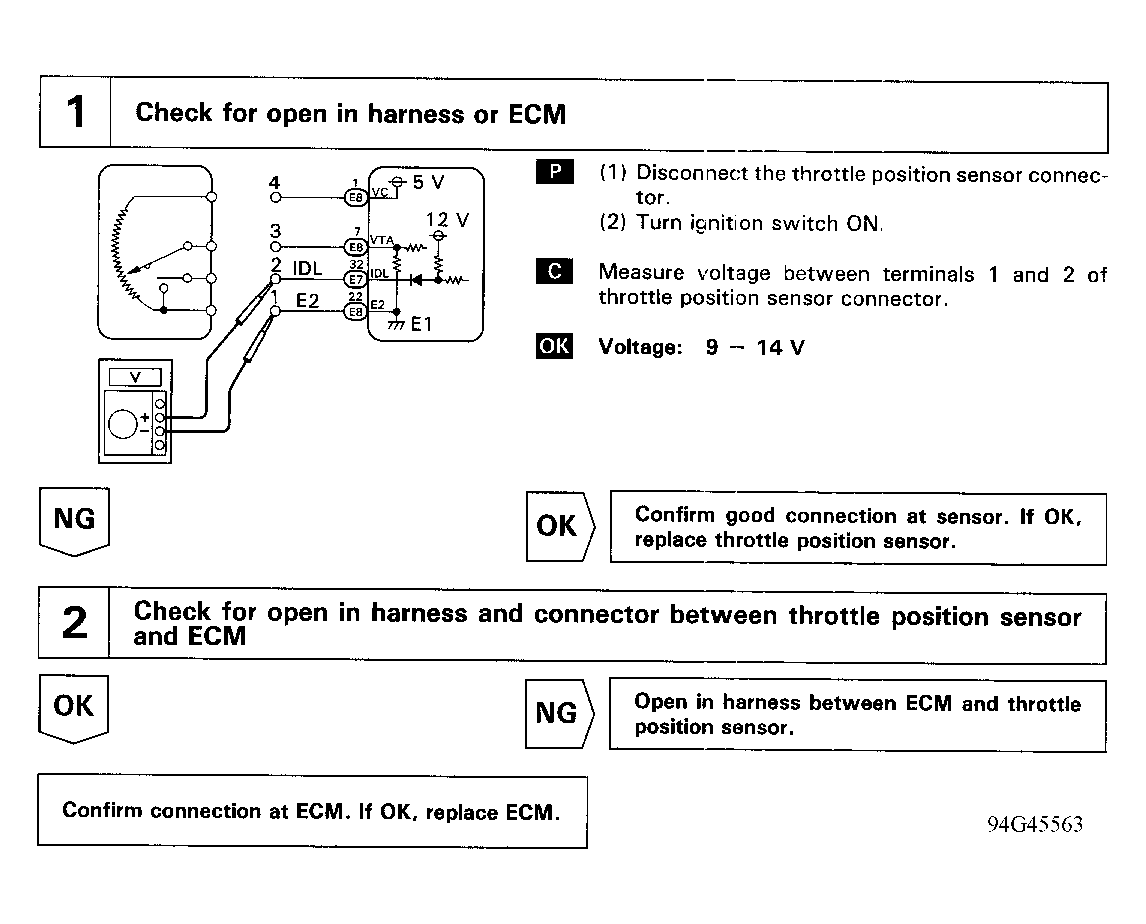

Fig 1: Code P0510 Flow Chart (1 Of 2) Closed Throttle Position Switch Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

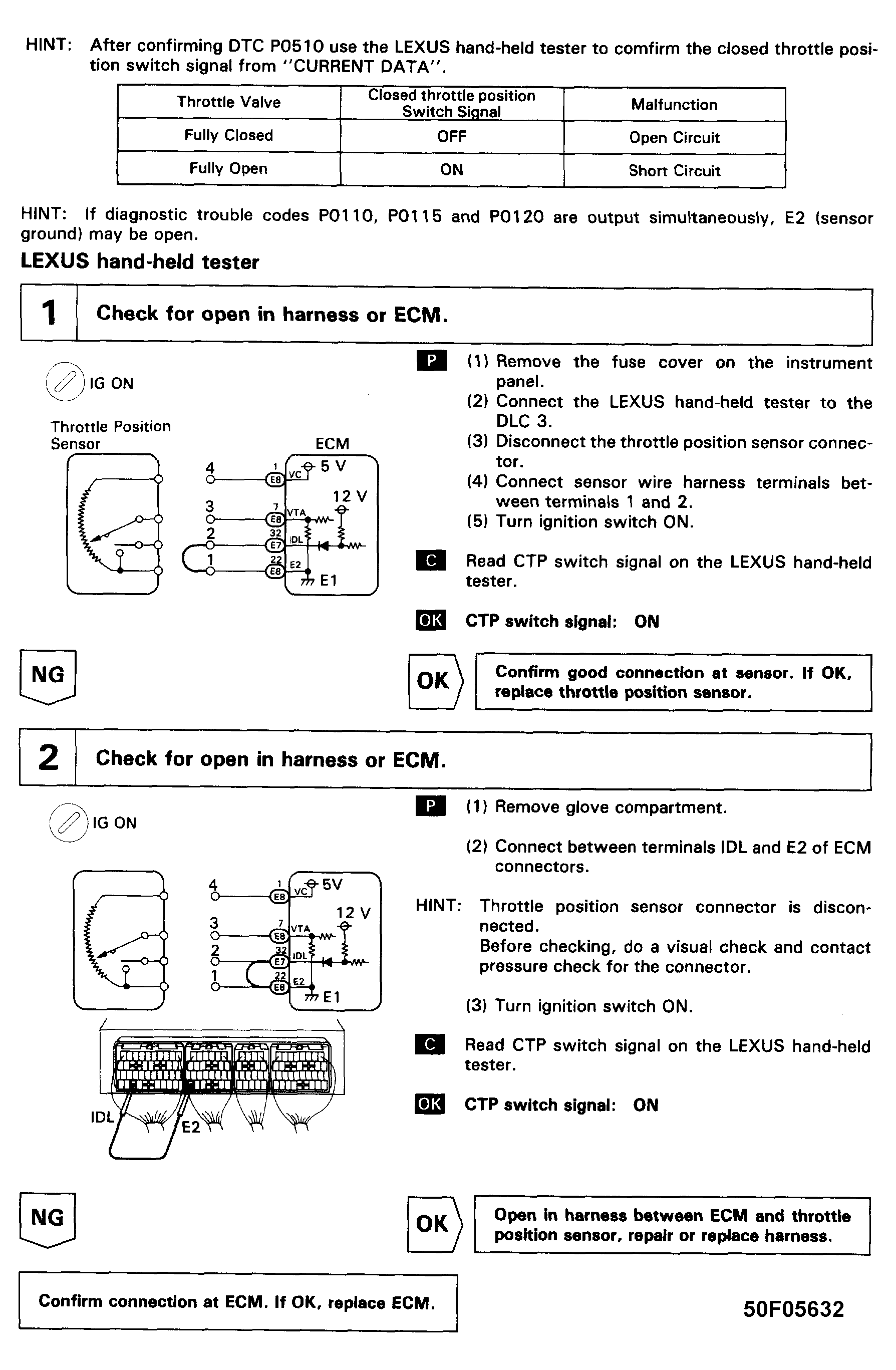

Fig 2: Code P0510 Flow Chart (2 Of 2) Closed Throttle Position Switch Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
