Code P1705 - NC2 Revolution Sensor Circuit Malfunction (Direct Clutch Speed Sensor)

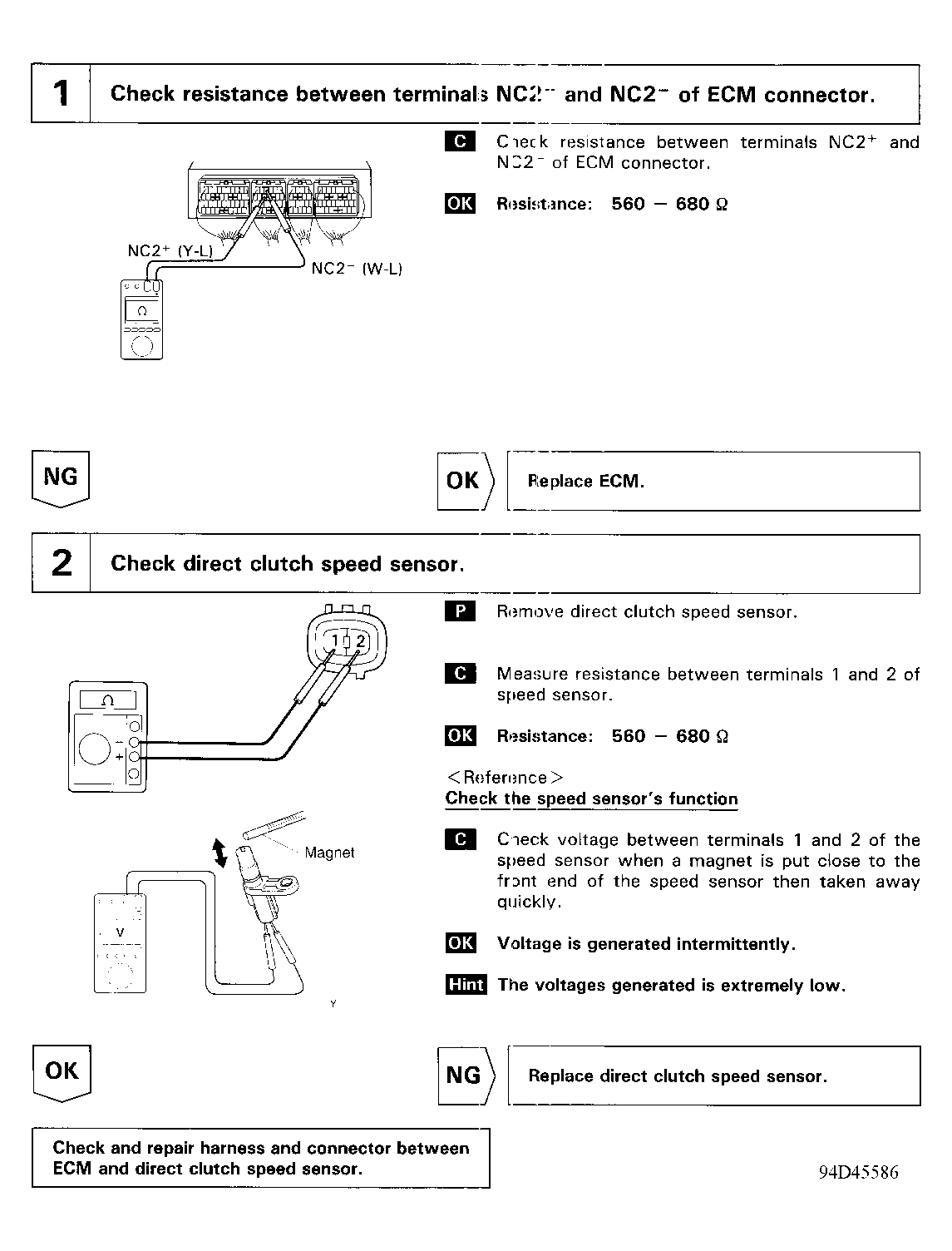

Fig 1: Code P1705 Flow Chart - NC2 Revolution Sensor Circuit Malfunction (Direct Clutch Speed Sensor)
G94D45586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
