Electrical Component Locator: Switches
SWITCH LOCATIONS
| Component | Location |
|---|---|
| A/C Pressure Switch | On refrigerant line, near receiver-drier. |
| Backup Light Switch | On transaxle. |

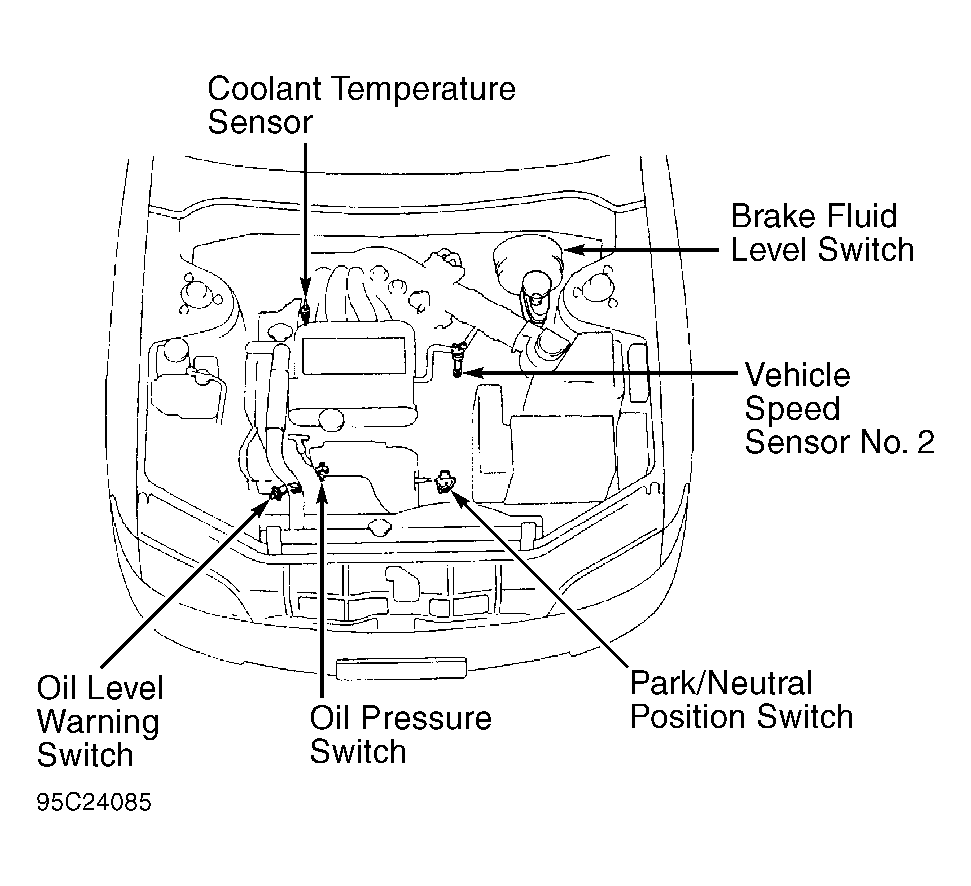

| Brake Fluid Level Switch | In brake fluid reservoir. See Figure. |
| Clutch Start Switch (M/T) | On floorboard, behind clutch pedal. |
| Cold Start Injector Time Switch | On top rear of engine. |
| Door Courtesy Switch | In each passenger door. See Figure. |
| ECT Pattern Select Switch | On multi-function control switch. See Figure. |
| Hazard Warning Switch | Under center dash, behind console. See Figure. |
| Ignition Switch | In steering column. See Figure. |
| Light Control Rheostat Switch | On left side of dash. See Figure. |
| Neutral Start Switch | On transaxle. |
| O/D Off Switch | On shift selector. See Figure. |
| Oil Level Warning Switch | On left front side of engine, in oil pan. See Figure. |
| Oil Pressure Switch | On lower left front of engine block, near dipstick. See Figure. |
| Parking Brake Switch | Bottom of parking brake lever. See Figure. |
| Park/Neutral Position Switch | Front of engine compartment, near exhaust manifold. See Figure. |
| Seat Belt Switch | On driver-side seat belt buckle. See Figure. |
| Stoplight Switch | On bracket, above brake pedal. |
| Trip Switch | On right side of dash, below meter assembly. See Figure. |
