Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C High Pressure Switch | In refrigerant line, near receiver/drier. |
| Brake Fluid Level Warning Switch | In master cylinder. |
| Cooling Fan Temperature Switch | On bottom left corner of radiator. |

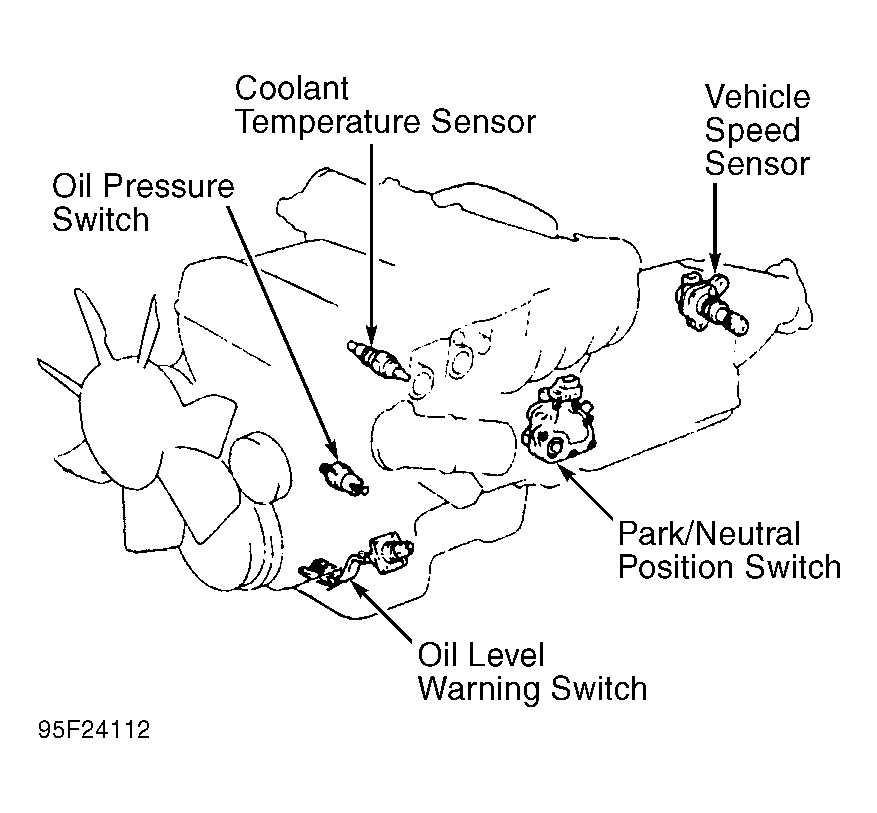

| Oil Level Warning Switch | On left bottom of oil pan. See Figure. |
| Oil Pressure Switch | On left front side of engine block. See Figure. |
| Park/Neutral Position Switch | On base of shifter assembly. See Figure. |
| Parking Brake Switch | On bracket, above parking brake pedal. |
| Power Steering Pressure Switch | On power steering pressure hose, on left side of engine. |
| Seat Belt Buckle Switch | On base of driver's seat belt buckle. |

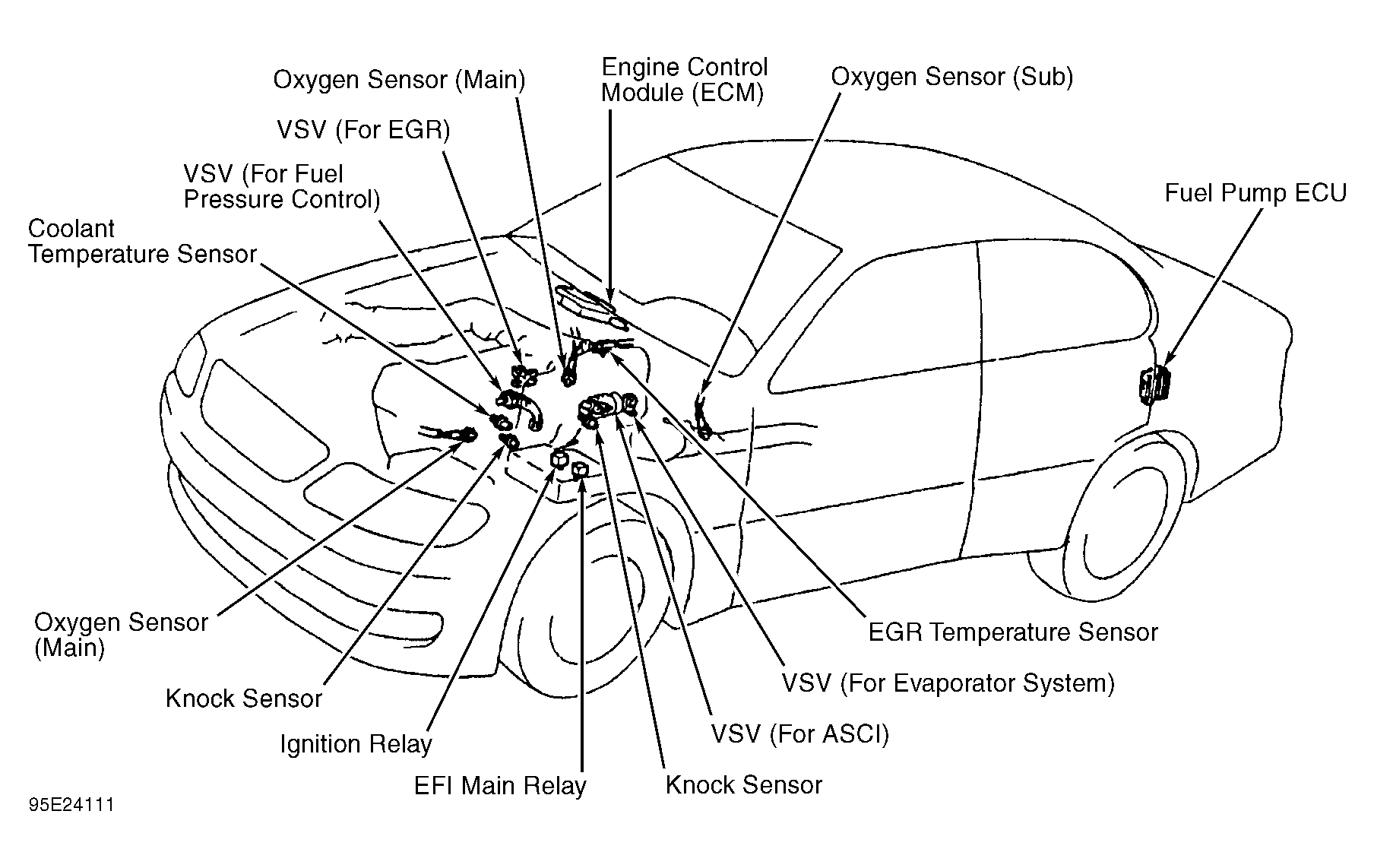

| Vacuum Switching Valves (VSV) Acoustic Control Induction (ACIS) System | On left rear of engine. See Figure. |
| EGR | On top rear of engine. See Figure. |
| Evaporative System | On left rear of engine. See Figure. |
| Fuel Pressure Control | On top left of engine. See Figure. |
| Washer Fluid Level Warning Switch | In washer fluid reservoir, behind left headlight. |
