Rear Wheel Alignment

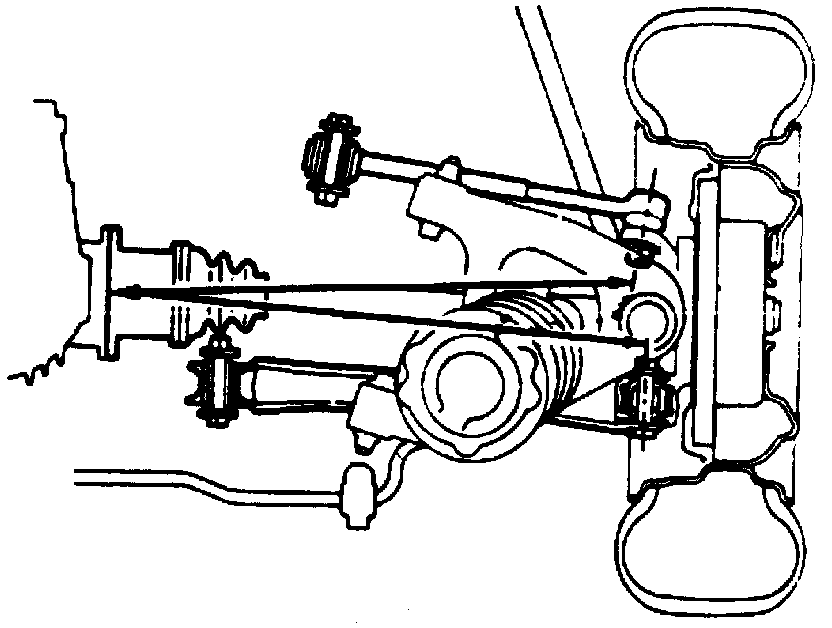

Fig. 10 Rear Camber & Toe-in Measurement:

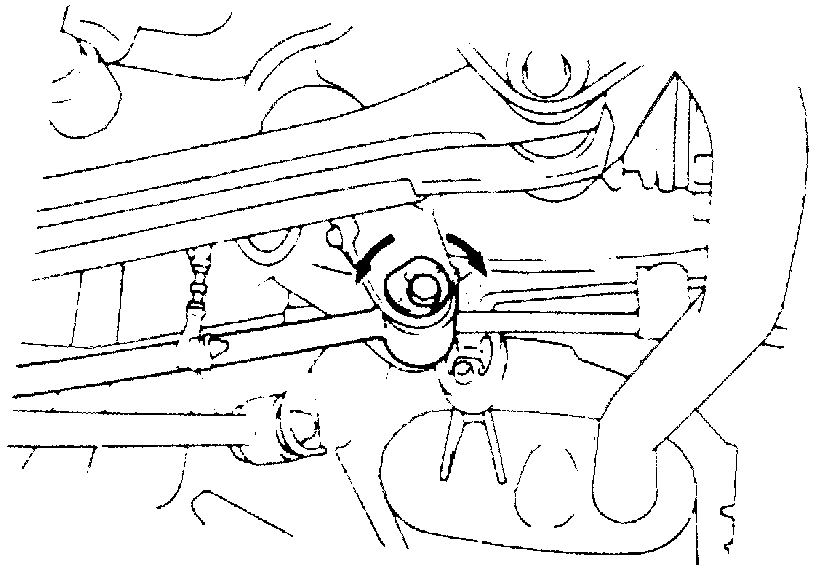

Fig. 11 Rear Camber & Toe-in Adjusting Cam:

1. Measure the length of the No. 1 and 2 lower suspension arms, Figs. 10 and 11.
2. Check if the right and left sides are equal. If not, adjust the length of the arm by turning the adjusting cam until the left and right side lengths are equal.
3. Measure camber and toe-in. If the camber and toe-in are still not within specification, adjust the camber and toe-in with the adjusting cam.
