Sub Throttle Position Sensor Signal
CIRCUIT DESCRIPTIONThe throttle position sensor detects the throttle valve opening angle and sends signals to the Engine Control Module (ECM).

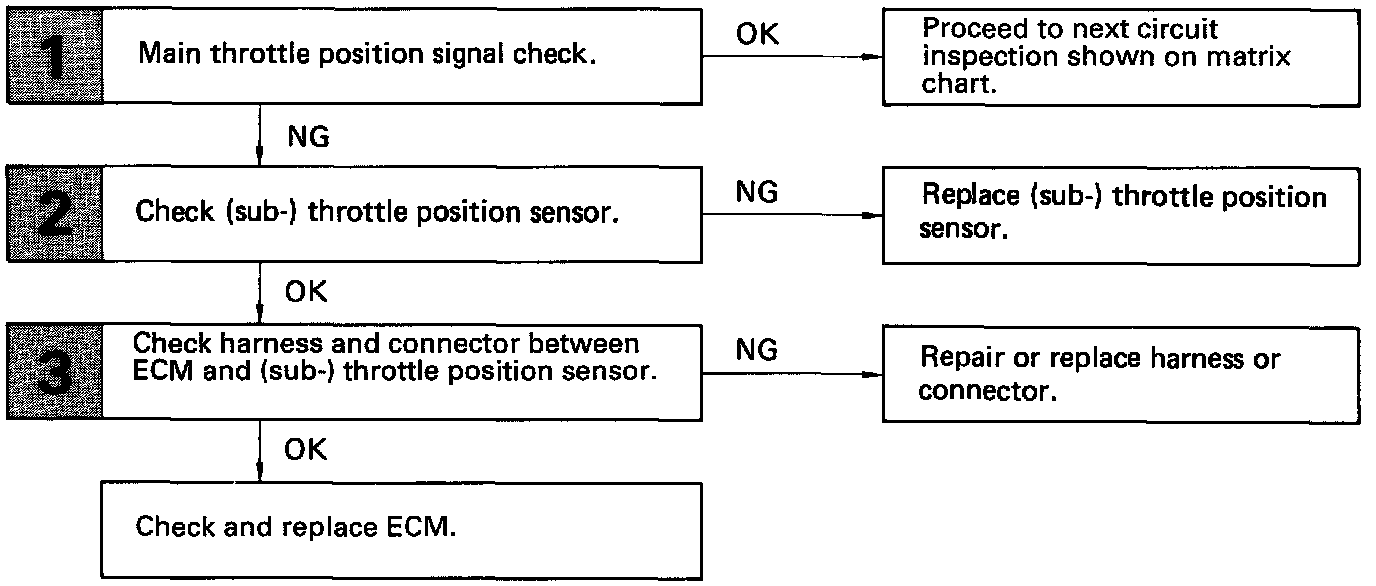

DIAGNOSTIC CHART

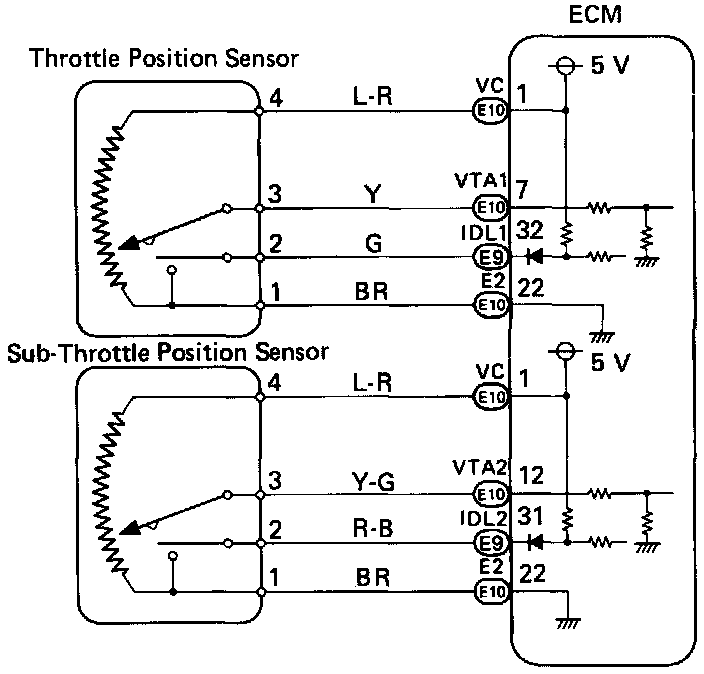

WIRING DIAGRAM

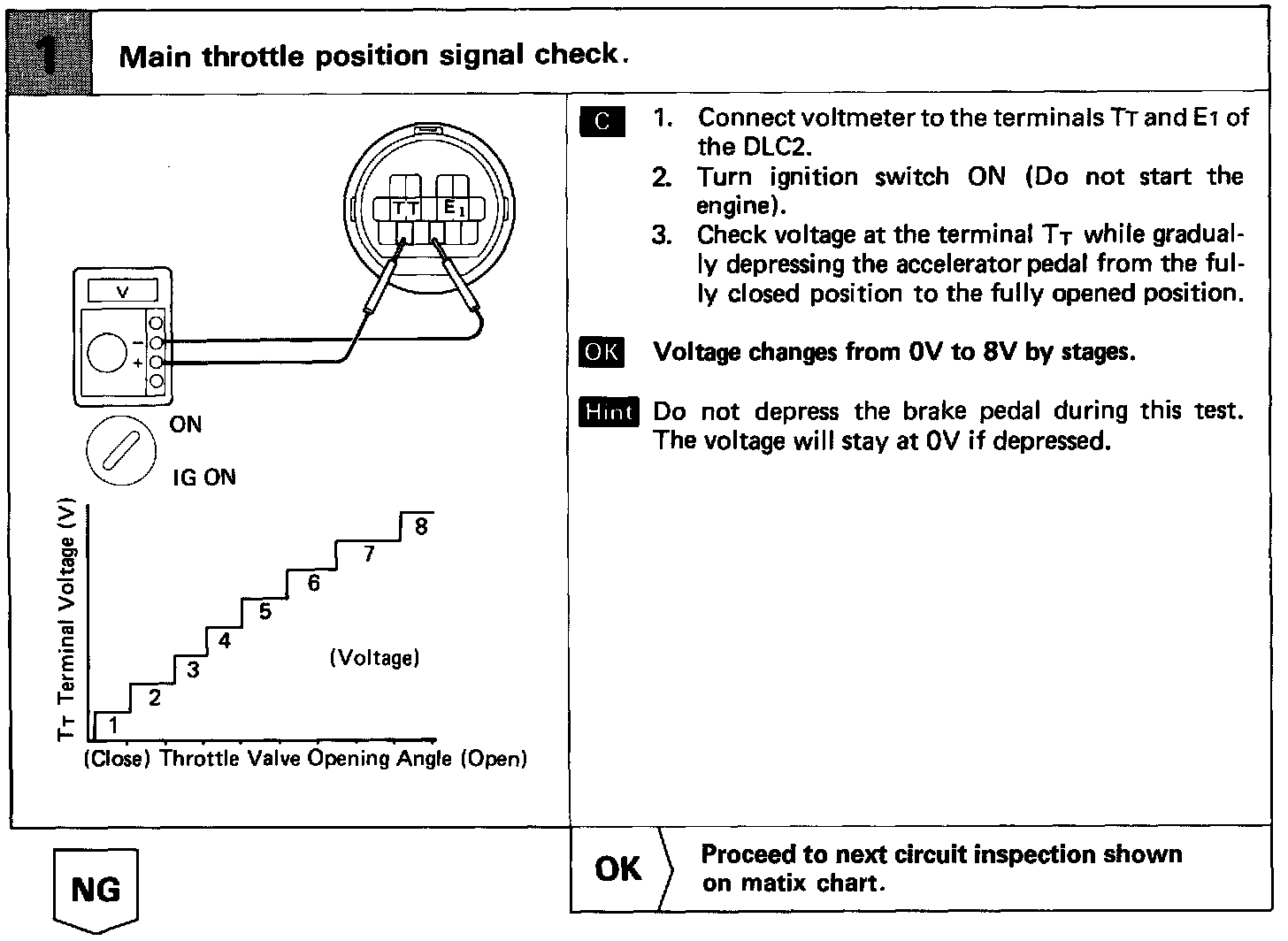

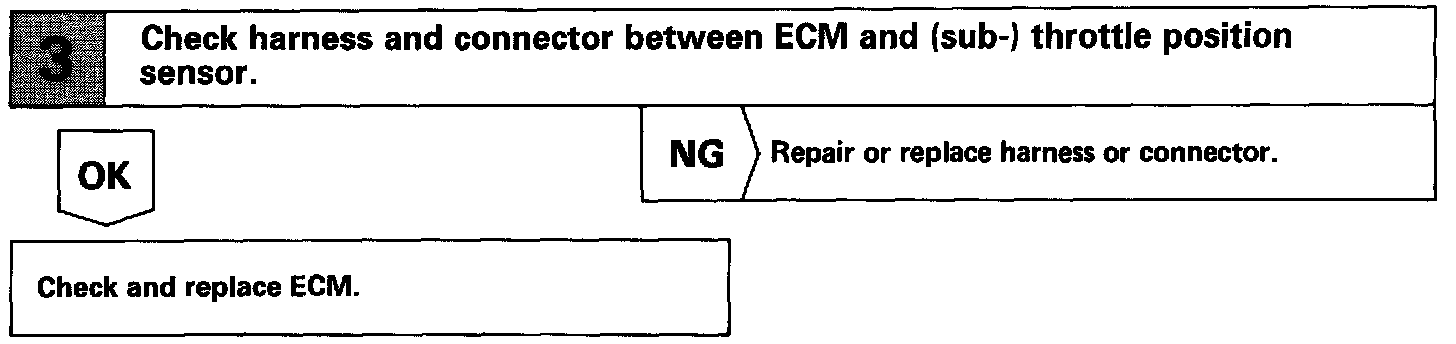

INSPECTION PROCEDURE
The throttle position sensor detects the throttle valve opening angle and sends signals to the Engine Control Module (ECM).
DIAGNOSTIC CHART
WIRING DIAGRAM
INSPECTION PROCEDURE
